该系列产品是中逸光为客户提供一款交直流高压输入模块疗电源，具有极低的漏电流，隔离耐压高达4KV等特点。产品安全可靠，EMC 性能好，EMC 及安全规格满足IEC/EN61000-4、CISPR22/EN55022、UL62368/EN62368/IEC623681等相关标准，该系列产品广泛应用于智能家居、高端灯饰、医疗、工控、办公及民用等行业中，如应用于电磁兼容比较恶劣的环境时必须参考应用电路。
展开查看更多
新能源电源
产品中心
交直流高压输入系列
点击展开条件搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效率% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |

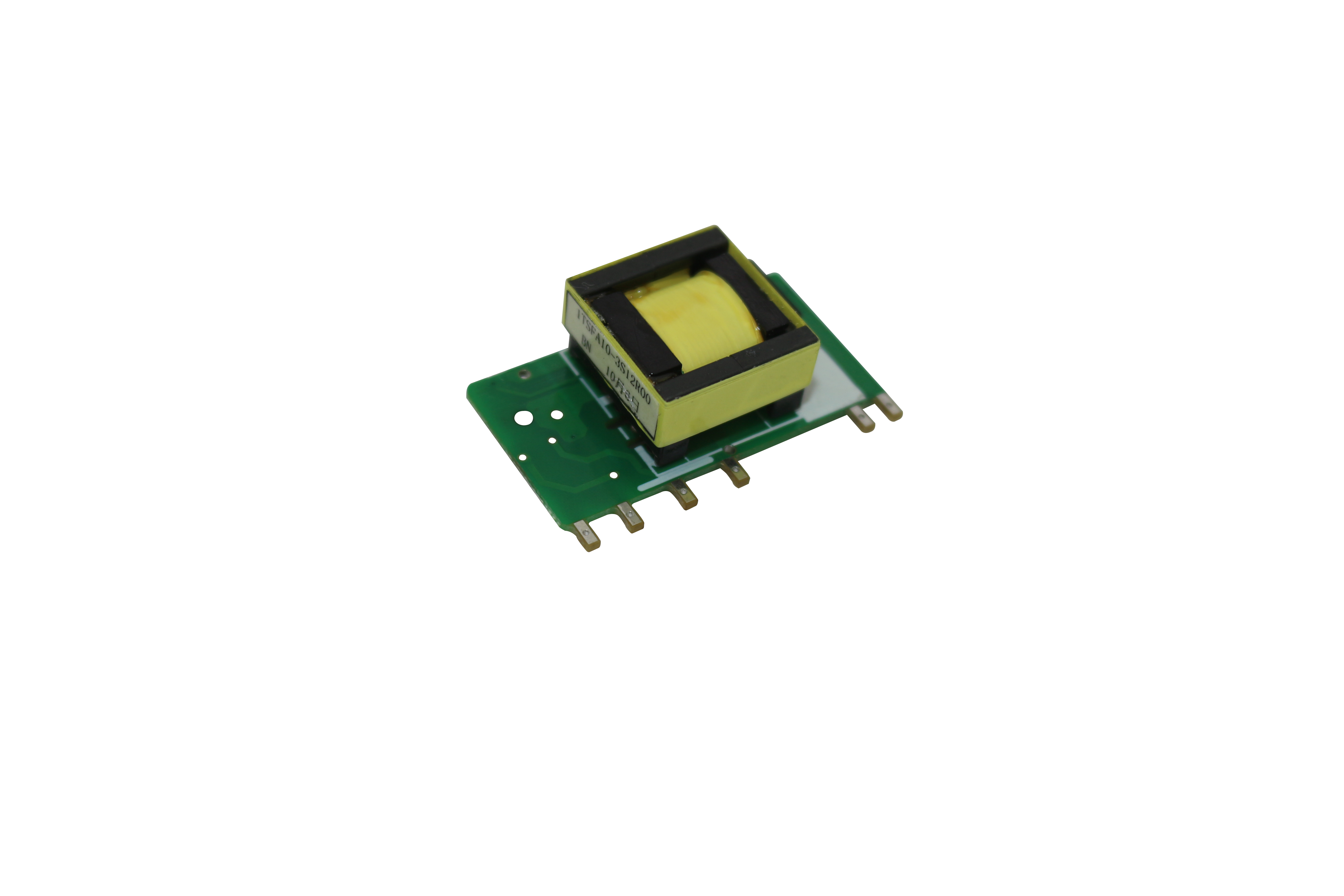

SFA10-3SXX SFA10-3SXX | 10 | 85-528 | 100-745 | 5/12/15/24 | 0.42-2 | 74-83 | 3000 | 38.0*20.0*15.25 | -- -- | -- |  -- |  -- |
| SFA10-3S05 | 10 | 85-528 | 100-745 | 5 | 2 | 74 | 3000 | 38.0*20.0*15.25 | -- | | | |
| SFA10-3S12 | 10 | 85-528 | 100-745 | 12 | 0.83 | 79 | 3000 | 38.0*20.0*15.25 | -- | | | |
| SFA10-3S15 | 10 | 85-528 | 100-745 | 15 | 0.66 | 79 | 3000 | 38.0*20.0*15.25 | -- | | | |
| SFA10-3S24 | 10 | 85-528 | 100-745 | 24 | 0.42 | 83 | 3000 | 38.0*20.0*15.25 | -- | | | |
| SM30-3SXX | 30 | 165-520 | 150-728 | 12/15/24 | 1.25-2.5 | 85-88 | 3000 | 129.0*99.0*38.0 | -- -- | -- | -- | -- |
| SM30-3S12 | 30 | 165-520 | 150-728 | 12 | 2.5 | 85 | 3000 | 129.0*99.0*38.0 | -- | | | |
| SM30-3S15 | 30 | 165-520 | 150-728 | 15 | 2 | 86 | 3000 | 129.0*99.0*38.0 | -- | | | |
| SM30-3S24 | 30 | 165-520 | 150-728 | 24 | 1.25 | 88 | 3000 | 129.0*99.0*38.0 | -- | | | |
| SM60-3SXX | 60 | 165-520 | 150-728 | 12/15/24 | 2.5-5 | 85-88 | 3000 | 129.0*99.0*38.0 | -- -- | -- | -- | -- |
| SM60-3S12 | 60 | 165-520 | 150-728 | 12 | 5 | 85 | 3000 | 129.0*99.0*38.0 | -- | | | |
| SM60-3S15 | 60 | 165-520 | 150-728 | 15 | 4 | 86 | 3000 | 129.0*99.0*38.0 | -- | | | |
| SM60-3S24 | 60 | 165-520 | 150-728 | 24 | 2.5 | 88 | 3000 | 129.0*99.0*38.0 | -- | | | |

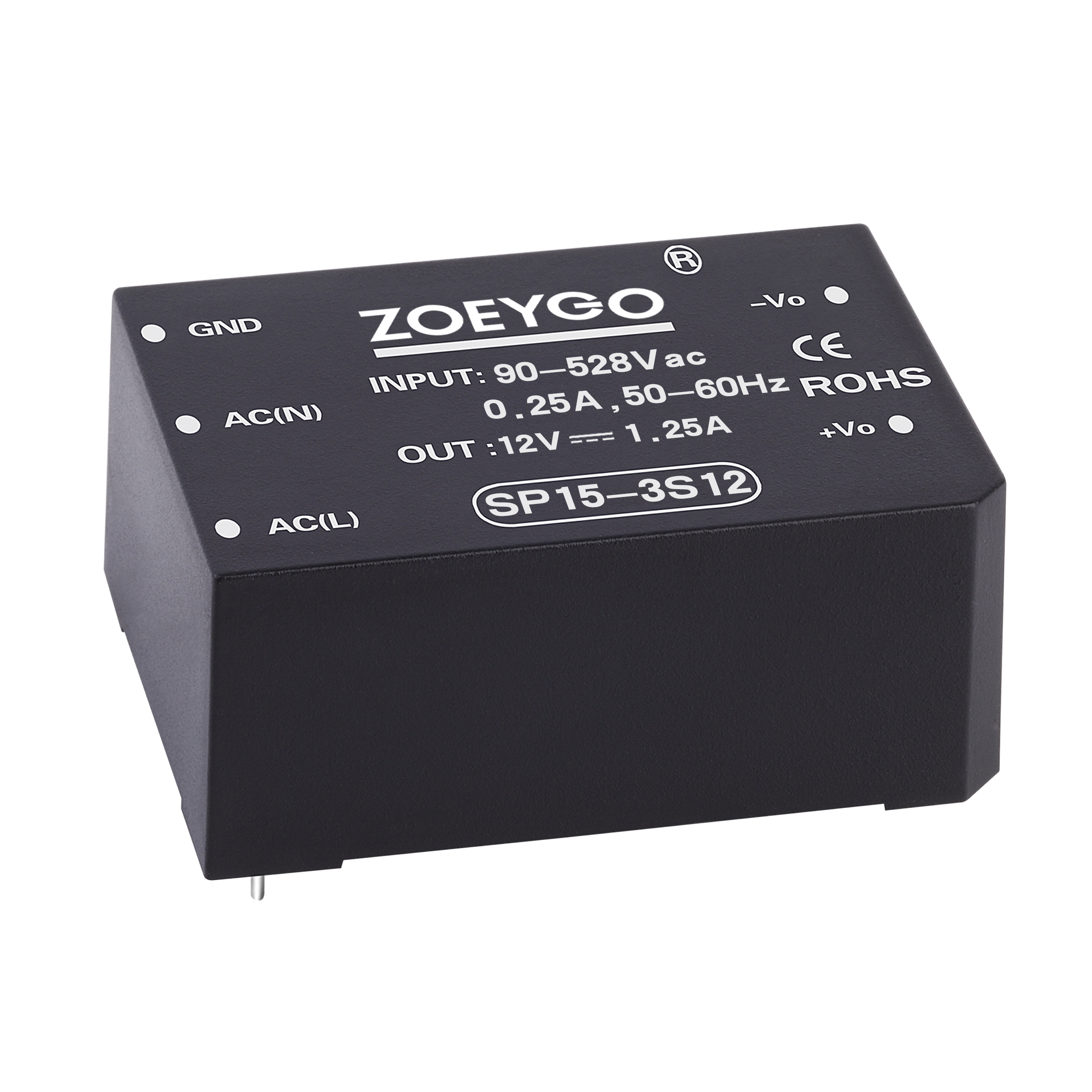

SP15-3SXX SP15-3SXX | 15 | 90-528 | 100-745 | 3.3/5/9/12/15/24 | 0.625-3 | 74-82 | 3000 | 62.0*45.0*23.0 | -- -- | -- | -- | -- |
| SP15-3S03 | 10 | 90-528 | 100-745 | 3.3 | 3 | 74 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-3S05 | 15 | 90-528 | 100-745 | 5 | 3 | 75 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-3S09 | 15 | 90-528 | 100-745 | 9 | 1.66 | 76 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-3S12 | 15 | 90-528 | 100-745 | 12 | 1.25 | 78 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-3S15 | 15 | 90-528 | 100-745 | 15 | 1 | 81 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-3S24 | 15 | 90-528 | 100-745 | 24 | 0.625 | 82 | 3000 | 62.0*45.0*23.0 | -- | | | |

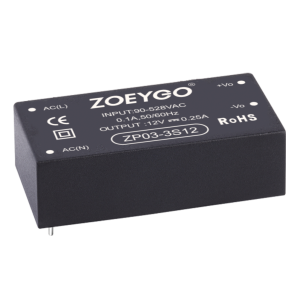

| ZP03-3SXX | 3 | 90-528 | 100-745 | 3.3/5/9/12/15/24 | 0.125-0.9 | 72-78 | 4000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |
| ZP03-3S03 | 3 | 90-528 | 100-745 | 3.3 | 0.9 | 74 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP03-3S05 | 3 | 90-528 | 100-745 | 5 | 0.6 | 72 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP03-3S09 | 3 | 90-528 | 100-745 | 9 | 0.33 | 74 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP03-3S12 | 3 | 90-528 | 100-745 | 12 | 0.25 | 74 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP03-3S15 | 3 | 90-528 | 100-745 | 15 | 0.2 | 74 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP03-3S24 | 3 | 90-528 | 100-745 | 24 | 0.125 | 78 | 4000 | 51.0*25.5*15.5 | -- | | | |

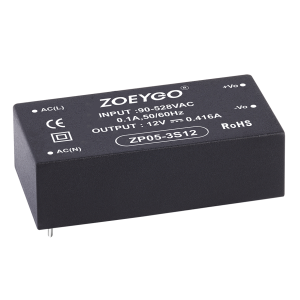

| ZP05-3SXX | 5 | 90-528 | 100-745 | 3.3/5/9/12/15/24 | 0.208-1 | 72-78 | 4000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |
| ZP05-3S03 | 3.3 | 90-528 | 100-745 | 3.3 | 1 | 74 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP05-3S05 | 5 | 90-528 | 100-745 | 5 | 1 | 72 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP05-3S09 | 5 | 90-528 | 100-745 | 9 | 0.555 | 74 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP05-3S12 | 5 | 90-528 | 100-745 | 12 | 0.416 | 74 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP05-3S15 | 5 | 90-528 | 100-745 | 15 | 0.333 | 74 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP05-3S24 | 5 | 90-528 | 100-745 | 24 | 0.208 | 78 | 4000 | 51.0*25.5*15.5 | -- | | | |

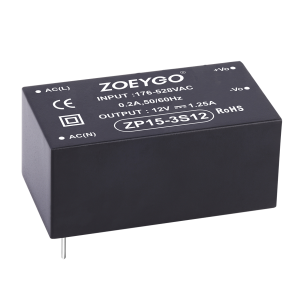

| ZP15-3SXX | 15 | 176-528 | 248-745 | 5/9/12/15/24 | 0.625-3 | 75-82 | 4000 | 54.5*29.2*23.6 | -- -- | -- | -- | -- |
| ZP15-3S05 | 15 | 176-528 | 248-745 | 5 | 3 | 75 | 4000 | 54.5*29.2*23.6 | -- | | | |
| ZP15-3S09 | 15 | 176-528 | 248-745 | 9 | 1.67 | 76 | 4000 | 54.5*29.2*23.6 | -- | | | |
| ZP15-3S12 | 15 | 176-528 | 248-745 | 12 | 1.25 | 78 | 4000 | 54.5*29.2*23.6 | -- | | | |
| ZP15-3S15 | 15 | 176-528 | 248-745 | 15 | 1 | 79 | 4000 | 54.5*29.2*23.6 | -- | | | |
| ZP15-3S24 | 15 | 176-528 | 248-745 | 24 | 0.625 | 82 | 4000 | 54.5*29.2*23.6 | -- | | |
