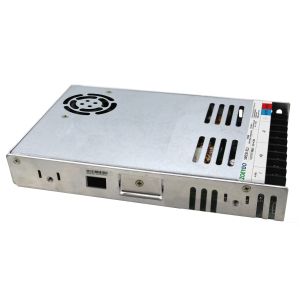

机壳型SM系列系列是中逸光专为客户提供的一款金属外壳工业型机壳电源，该系列具有全球电压输入、交直流两用、高性价比、低功耗、高效率、高安全性、高可靠性等优点。产品EMC性能优异，EMC 及安全规格满足IEC/EN61000-4、CISPR22/EN55022、UL60950/EN60950/EN60601等相关标准，该系列产品广泛应用于工控、自动化、安防、通讯、视觉等行业中，如应用于电磁兼容比较恶劣的环境时必须参考应用电路。
展开查看更多
机壳型电源
产品中心
标准型SM系列
点击展开条件搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效率% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |

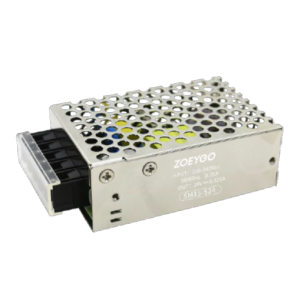

| SM15-SXX | 15 | 85-264 | 100-370 | 5/12/15/24/48 | 0.313-3 | 82-89 | 3000 | 78.0*51.0*28.0 | -- -- | -- | -- -- |  -- |
| SM15-S05 | 15 | 85-264 | 100-370 | 5 | 3 | 82 | 3000 | 78.0*51.0*28.0 | -- | -- | | |
| SM15-S12 | 15 | 85-264 | 100-370 | 12 | 1.25 | 86 | 3000 | 78.0*51.0*28.0 | -- | -- | | |
| SM15-S15 | 15 | 85-264 | 100-370 | 15 | 1 | 86 | 3000 | 78.0*51.0*28.0 | -- | -- | | |
| SM15-S24 | 15 | 85-264 | 100-370 | 24 | 0.625 | 88 | 3000 | 78.0*51.0*28.0 | -- | -- | | |
| SM15-S48 | 15 | 85-264 | 100-370 | 48 | 0.313 | 89 | 3000 | 78.0*51.0*28.0 | -- | -- | | |

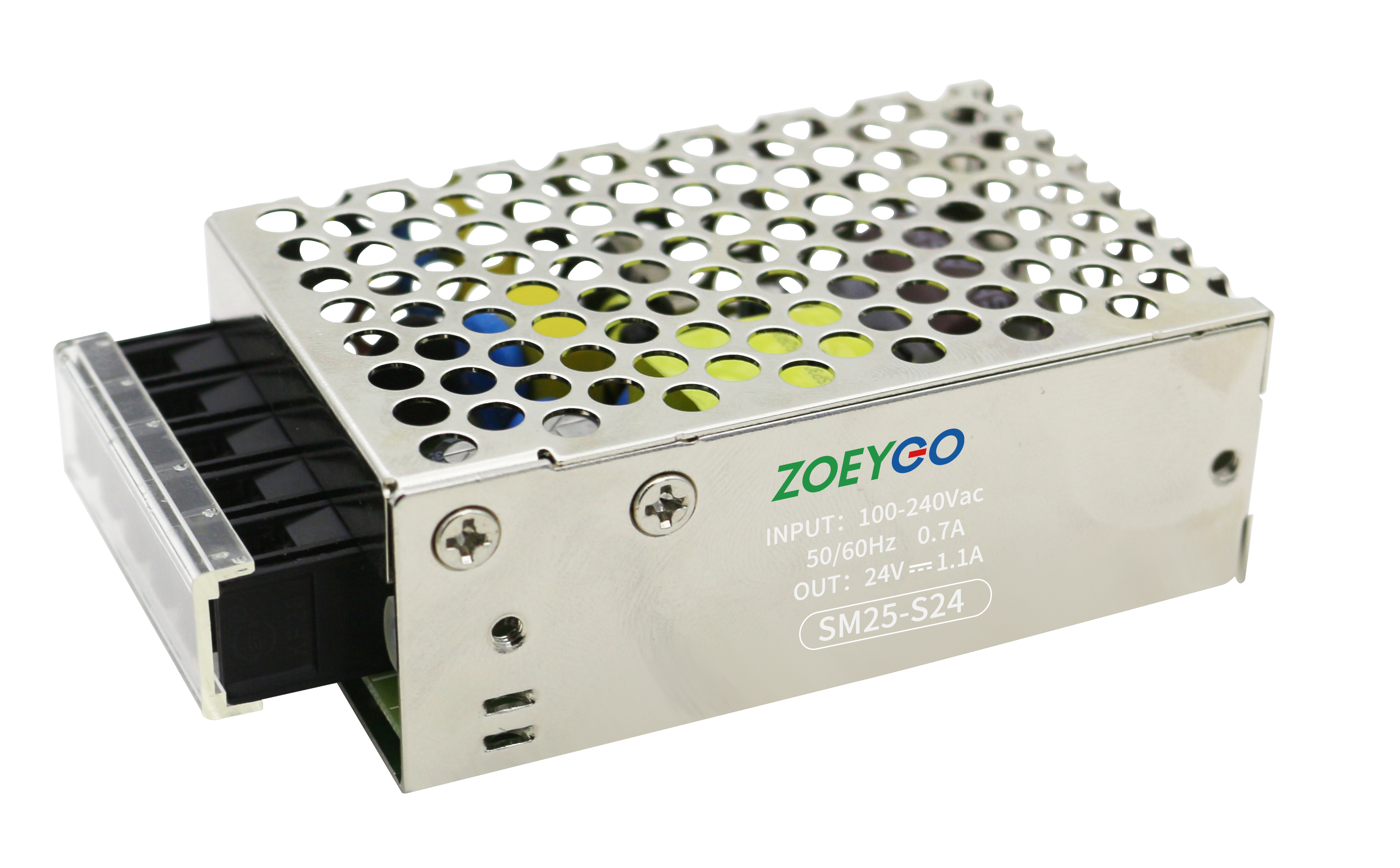

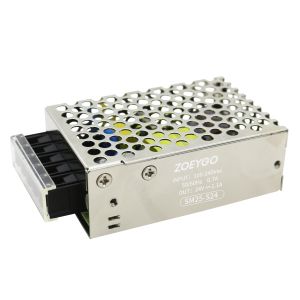

SM25-SXX SM25-SXX | 25 | 85-264 | 100-370 | 5/12/15/24/48 | 0.57-5 | 82-89 | 3000 | 78.0*51.0*28.0 | -- -- | -- |  -- | -- |
| SM25-S05 | 25 | 85-264 | 100-370 | 5 | 5 | 82 | 3000 | 78.0*51.0*28.0 | -- | | | |
| SM25-S12 | 25 | 85-264 | 100-370 | 12 | 2.1 | 86 | 3000 | 78.0*51.0*28.0 | -- | | | |
| SM25-S15 | 25 | 85-264 | 100-370 | 15 | 1.7 | 86 | 3000 | 78.0*51.0*28.0 | -- | | | |
| SM25-S24 | 25 | 85-264 | 100-370 | 24 | 1.1 | 88 | 3000 | 78.0*51.0*28.0 | -- | | | |
| SM25-S48 | 25 | 85-264 | 100-370 | 48 | 0.57 | 89 | 3000 | 78.0*51.0*28.0 | -- | | | |
| SM35-SXX | 35 | 85-264 | 120-370 | 5/12/24/48 | 0.8-6 | 83-90 | 3000 | 78.0*51.0*28.0 | -- -- | -- | -- | -- |
| SM35-S05 | 30 | 85-264 | 120-370 | 5 | 6 | 83 | 3000 | 78.0*51.0*28.0 | -- | | | |
| SM35-S12 | 36 | 85-264 | 120-370 | 12 | 3 | 86 | 3000 | 78.0*51.0*28.0 | -- | | | |
| SM35-S24 | 36 | 85-264 | 120-370 | 24 | 1.5 | 89.5 | 3000 | 78.0*51.0*28.0 | -- | | | |
| SM35-S48 | 38.4 | 85-264 | 120-370 | 48 | 0.8 | 90 | 3000 | 78.0*51.0*28.0 | -- | | | |
| SM65-D(T)XXYY | 65 | 85-264 | 展开 | 5/12/24/±12/±15 | 1.66-6 | 82-85 | 3000 | 134.0*97.0*30.0 | -- -- | -- | -- | -- |
| SM65-D0512 | 65 | 85-264 | -- | 5&12 | 6&2.92 | 84 | 3000 | 134.0*97.0*30.0 | -- | | | |
| SM65-D0524 | 65 | 85-264 | -- | 5&24 | 4&1.87 | 85 | 3000 | 134.0*97.0*30.0 | -- | | | |
| SM65-D1212 | 65 | 85-264 | -- | 12&12 | 2.7 | 84 | 3000 | 134.0*97.0*30.0 | -- | | | |
| SM65-D12 | 65 | 85-264 | -- | 12&-12 | 2.7 | 84 | 3000 | 134.0*97.0*30.0 | -- | | | |
| SM65-D15 | 65 | 85-264 | -- | 15&-15 | 2.16 | 85 | 3000 | 134.0*97.0*30.0 | -- | | | |
| SM65-TA | 65 | 85-264 | -- | 5&±12 | 3&2.08 | 82 | 3000 | 134.0*97.0*30.0 | -- | | | |
| SM65-TB | 65 | 85-264 | -- | 5&±15 | 3&1.66 | 82 | 3000 | 134.0*97.0*30.0 | -- | | | |

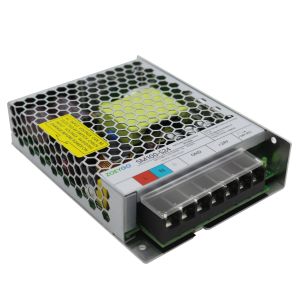

| SM100-SXX | 100 | 85-264 | 120-370 | 5/12/15/24/36/48 | 2.3-18 | 85-91 | 4000 | 134.0*97.0*30.0 | -- -- | -- | -- | -- |
| SM100-S05 | 90 | 85-264 | 120-370 | 5 | 18 | 85 | 4000 | 134.0*97.0*30.0 | -- | | | |
| SM100-S12 | 102 | 85-264 | 120-370 | 12 | 8.5 | 88 | 4000 | 134.0*97.0*30.0 | -- | | | |
| SM100-S15 | 105 | 85-264 | 120-370 | 15 | 7 | 88.5 | 4000 | 134.0*97.0*30.0 | -- | | | |
| SM100-S24 | 108 | 85-264 | 120-370 | 24 | 4.5 | 90 | 4000 | 134.0*97.0*30.0 | -- | | | |
| SM100-S36 | 100.8 | 85-264 | 120-370 | 36 | 2.3 | 90.5 | 4000 | 134.0*97.0*30.0 | -- | | | |
| SM100-S48 | 110.4 | 85-264 | 120-370 | 48 | 2.3 | 91 | 4000 | 134.0*97.0*30.0 | -- | | | |

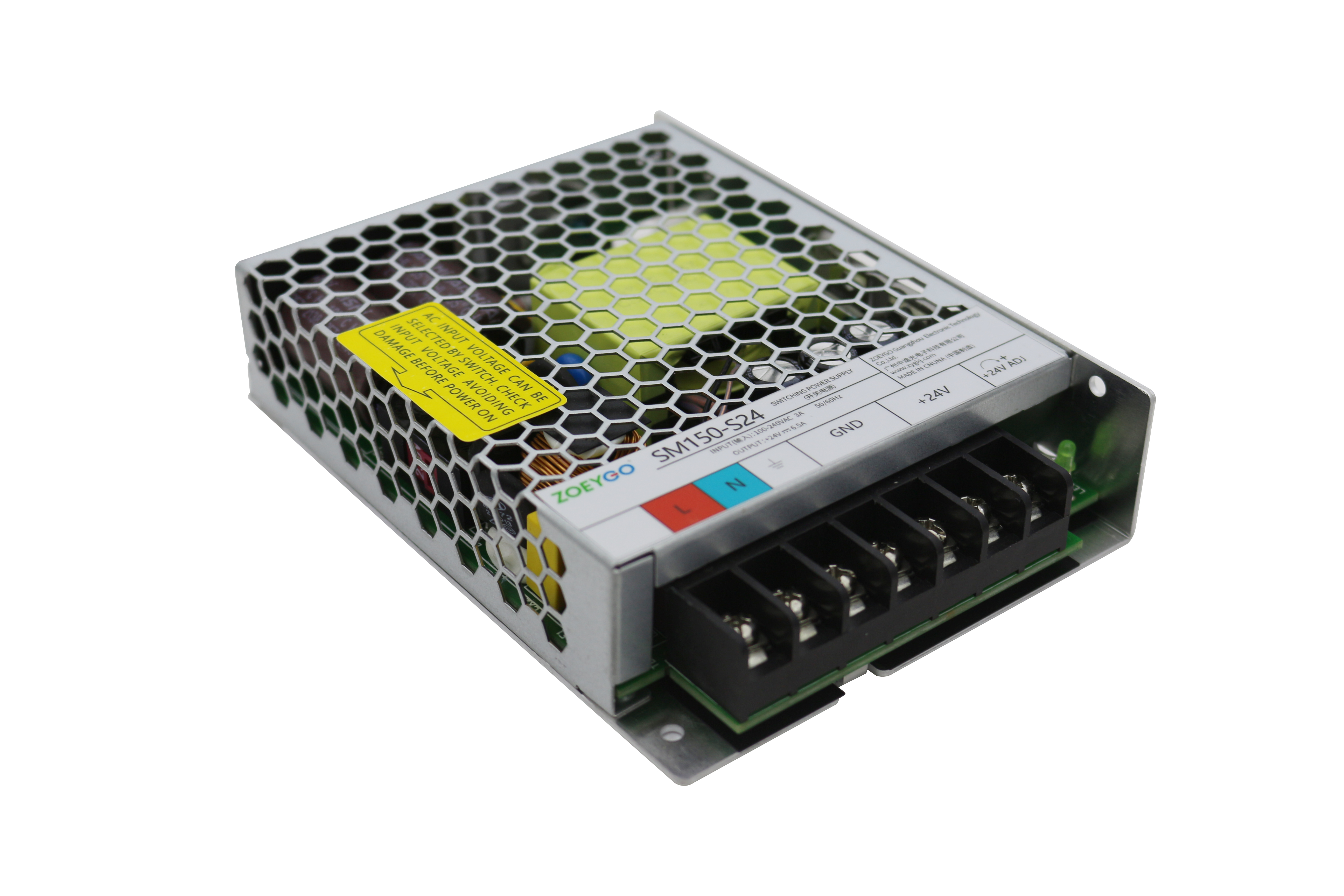

SM150-SXX SM150-SXX | 150 | 90-132/180-264 | 展开 | 5/12/15/24/36/48 | 3.3-22 | 87-91 | 3000 | 134.0*97.0*30.0 | -- -- | -- | -- | -- |
| SM150-S05 | 110 | 90-132/180-264 | -- | 5 | 22 | 87 | 3000 | 134.0*97.0*30.0 | -- | | | |
| SM150-S12 | 150 | 90-132/180-264 | -- | 12 | 12.5 | 87.5 | 3000 | 134.0*97.0*30.0 | -- | | | |
| SM150-S15 | 150 | 90-132/180-264 | -- | 15 | 10 | 88 | 3000 | 134.0*97.0*30.0 | -- | | | |
| SM150-S24 | 156 | 90-132/180-264 | -- | 24 | 6.5 | 90 | 3000 | 134.0*97.0*30.0 | -- | | | |
| SM150-S36 | 158.4 | 90-132/180-264 | -- | 36 | 4.4 | 90 | 3000 | 134.0*97.0*30.0 | -- | | | |
| SM150-S48 | 158.4 | 90-132/180-264 | -- | 48 | 3.3 | 91 | 3000 | 134.0*97.0*30.0 | -- | | | |
| SM250-SXX | 250 | 90-132/180-264 | 展开 | 5/12/15/24/36/48 | 5.3-40 | 87-90 | 3000 | 215.0*115.0*30.0 | -- -- | -- | -- | -- |
| SM250-S05 | 200 | 90-132/180-264 | -- | 5 | 40 | 87 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM250-S12 | 252 | 90-132/180-264 | -- | 12 | 21 | 87 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM250-S15 | 250.5 | 90-132/180-264 | -- | 15 | 16.7 | 88 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM250-S24 | 252 | 90-132/180-264 | -- | 24 | 10.5 | 89 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM250-S36 | 252 | 90-132/180-264 | -- | 36 | 7 | 88 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM250-S48 | 254.4 | 90-132/180-264 | -- | 48 | 5.3 | 90 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM350-SXX | 350 | 90-132/180-264 | 展开 | 5/12/15/24/36/48 | 7.3-60 | 83.5-88.5 | 3000 | 215.0*115.0*30.0 | -- -- | -- | -- | -- |
| SM350-S05 | 300 | 90-132/180-264 | -- | 5 | 60 | 83.5 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM350-S12 | 348 | 90-132/180-264 | -- | 12 | 29 | 85.5 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM350-S15 | 349.5 | 90-132/180-264 | -- | 15 | 23.3 | 86 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM350-S24 | 350.4 | 90-132/180-264 | -- | 24 | 14.6 | 87.5 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM350-S36 | 349.2 | 90-132/180-264 | -- | 36 | 9.7 | 88 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM350-S48 | 350.4 | 90-132/180-264 | -- | 48 | 7.3 | 88.5 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM450-SXX | 450 | 180-264 | 240-370 | 5/12/15/24/36/48 | 9.4-70 | 84-88 | 3000 | 215.0*115.0*30.0 | -- -- | -- | -- | -- |
| SM450-S05 | 350 | 180-264 | 240-370 | 5 | 70 | 84 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM450-S12 | 450 | 180-264 | 240-370 | 12 | 37.5 | 85 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM450-S15 | 450 | 180-264 | 240-370 | 15 | 30 | 86 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM450-S24 | 451.2 | 180-264 | 240-370 | 24 | 18.8 | 87 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM450-S36 | 450 | 180-264 | 240-370 | 36 | 12.5 | 87.5 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SM450-S48 | 451.2 | 180-264 | 240-370 | 48 | 9.4 | 88 | 3000 | 215.0*115.0*30.0 | -- | | |
