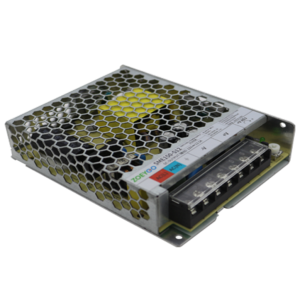

SME系列产品是中逸光为客户提供的经济型机壳开关电源，该系列产品安全可靠，EMC性能好，EMC及安全规格满足IEC/EN61000-4、CISPR32/EN55032、UL60950/EN60950/EN60601等相关标准，可广泛应用于智能家居、高端灯饰、医疗、工控、办公及民用等行业中。
展开查看更多
机壳型电源
产品中心
经济型SME系列
点击展开条件搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效率% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |
| SME50-SXX | 50 | 90-264 | 展开 | 12/15/24/36/48 | 1.1-4.2 | 85-86 | 3000 | 99.0*82.0*30.0 | -- -- | -- |  -- |  -- |
| SME50-S12 | 50.4 | 90-264 | -- | 12 | 4.2 | 85 | 3000 | 99.0*82.0*30.0 | -- | | | |
| SME50-S15 | 51 | 90-264 | -- | 15 | 3.4 | 85 | 3000 | 99.0*82.0*30.0 | -- | | | |
| SME50-S24 | 52.8 | 90-264 | -- | 24 | 2.2 | 86 | 3000 | 99.0*82.0*30.0 | -- | | | |
| SME50-S36 | 52.2 | 90-264 | -- | 36 | 1.45 | 86 | 3000 | 99.0*82.0*30.0 | -- | | | |
| SME50-S48 | 52.8 | 90-264 | -- | 48 | 1.1 | 86 | 3000 | 99.0*82.0*30.0 | -- | | | |
SME75-SXX SME75-SXX | 75 | 90-264 | 展开 | 12/15/24/36/48 | 1.57-6.25 | 85-86 | 3000 | 129.0*97.0*30.0 | -- -- | -- | -- | -- |
| SME75-S12 | 75 | 90-264 | -- | 12 | 6.25 | 85 | 3000 | 129.0*97.0*30.0 | -- | | | |
| SME75-S15 | 75 | 90-264 | -- | 15 | 5 | 85 | 3000 | 129.0*97.0*30.0 | -- | | | |
| SME75-S24 | 75 | 90-264 | -- | 24 | 3.13 | 86 | 3000 | 129.0*97.0*30.0 | -- | | | |
| SME75-S36 | 75 | 90-264 | -- | 36 | 2.09 | 86 | 3000 | 129.0*97.0*30.0 | -- | | | |
| SME75-S48 | 75 | 90-264 | -- | 48 | 1.57 | 86 | 3000 | 129.0*97.0*30.0 | -- | | | |
SME100-SXX SME100-SXX | 100 | 90-264 | 展开 | 12/15/24/36/48 | 2.08-8.33 | 85-86 | 3000 | 129.0*97.0*30.0 | -- -- | -- | -- | -- |
| SME100-S12 | 100 | 90-264 | -- | 12 | 8.33 | 85 | 3000 | 129.0*97.0*30.0 | -- | | | |
| SME100-S15 | 100 | 90-264 | -- | 15 | 6.66 | 85 | 3000 | 129.0*97.0*30.0 | -- | | | |
| SME100-S24 | 100 | 90-264 | -- | 24 | 4.16 | 86 | 3000 | 129.0*97.0*30.0 | -- | | | |
| SME100-S36 | 100 | 90-264 | -- | 36 | 2.77 | 86 | 3000 | 129.0*97.0*30.0 | -- | | | |
| SME100-S48 | 100 | 90-264 | -- | 48 | 2.08 | 86 | 3000 | 129.0*97.0*30.0 | -- | | | |
SME150-SXX SME150-SXX | 150 | 90-132/180-264 | 展开 | 12/15/24/36/48 | 3.3-12.5 | 85-87 | 3000 | 159.0*97.0*30.0 | -- -- | -- | -- | -- |
| SME150-S12 | 150 | 90-132/180-264 | -- | 12 | 12.5 | 85 | 3000 | 159.0*97.0*30.0 | -- | | | |
| SME150-S15 | 150 | 90-132/180-264 | -- | 15 | 10 | 85 | 3000 | 159.0*97.0*30.0 | -- | | | |
| SME150-S24 | 150 | 90-132/180-264 | -- | 24 | 6.25 | 86 | 3000 | 159.0*97.0*30.0 | -- | | | |
| SME150-S36 | 150 | 90-132/180-264 | -- | 36 | 4.3 | 87 | 3000 | 159.0*97.0*30.0 | -- | | | |
| SME150-S48 | 150 | 90-132/180-264 | -- | 48 | 3.3 | 87 | 3000 | 159.0*97.0*30.0 | -- | | | |
SME200-SXX SME200-SXX | 200 | 90-132/180-264 | 展开 | 12/15/24/36/48 | 4.4-17 | 85-88 | 3000 | 215.0*115.0*30.0 | -- -- | -- | -- | -- |
| SME200-S12 | 204 | 90-132/180-264 | -- | 12 | 17 | 85 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME200-S15 | 210 | 90-132/180-264 | -- | 15 | 14 | 86 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME200-S24 | 211.2 | 90-132/180-264 | -- | 24 | 8.8 | 87 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME200-S36 | 212.4 | 90-132/180-264 | -- | 36 | 5.9 | 88 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME200-S48 | 211.2 | 90-132/180-264 | -- | 48 | 4.4 | 88 | 3000 | 215.0*115.0*30.0 | -- | | | |
SME350-SXX SME350-SXX | 350 | 90-132/180-264 | 展开 | 12/15/24/36/48 | 7.29-29.17 | 87.5-88.5 | 3000 | 215.0*115.0*30.0 | -- -- | -- | -- | -- |
| SME350-S12 | 350 | 90-132/180-264 | -- | 12 | 29.17 | 87.5 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME350-S15 | 350 | 90-132/180-264 | -- | 15 | 23.33 | 88 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME350-S24 | 350 | 90-132/180-264 | -- | 24 | 14.58 | 88 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME350-S27 | 350 | 90-132/180-264 | -- | 27 | 12.96 | 88 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME350-S36 | 350 | 90-132/180-264 | -- | 36 | 9.72 | 88.5 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME350-S48 | 350 | 90-132/180-264 | -- | 48 | 7.29 | 88.5 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME350-SXXD-Y | 350 | 90-132/180-264 | 展开 | 36/48 | 7.3-14.6 | 85-88 | 2000 | 215.0*115.0*30.0 | -- -- | -- | -- | -- |
| SME350-S24D-B | 350 | 90-132/180-264 | -- | 24 | 14.6 | 85 | 2000 | 215.0*115.0*30.0 | -- | | | |
| SME350-S48D-B | 350 | 90-132/180-264 | -- | 48 | 7.3 | 88 | 2000 | 215.0*115.0*30.0 | -- | | | |
| SME450-SXX | 450 | 180-264 | 240-370 | 5/6.5/12/15/24/36/48 | 9.4-70 | 84-88 | 3000 | 215.0*115.0*30.0 | -- -- | -- | -- | -- |
| SME450-S05 | 350 | 180-264 | 240-370 | 5 | 70 | 84 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME450-S6V5 | 390 | 180-264 | 240-370 | 6.5 | 60 | 85 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME450-S12 | 450 | 180-264 | 240-370 | 12 | 37.5 | 85 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME450-S15 | 450 | 180-264 | 240-370 | 15 | 30 | 86 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME450-S24 | 451.2 | 180-264 | 240-370 | 24 | 18.8 | 87 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME450-S36 | 450 | 180-264 | 240-370 | 36 | 12.5 | 87.5 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME450-S48 | 451.2 | 180-264 | 240-370 | 48 | 9.4 | 88 | 3000 | 215.0*115.0*30.0 | -- | | | |
| SME600-220SXX | 600 | 180-264 | 展开 | 24/36/48 | 12.5-25 | 87-88 | 2000 | 215.0*115.0*50.0 | -- -- | -- | -- | -- |
| SME600-220S24 | 600 | 180-264 | -- | 24 | 25 | 87 | 2000 | 215.0*115.0*50.0 | -- | | | |
| SME600-220S36 | 600 | 180-264 | -- | 36 | 16.7 | 88 | 2000 | 215.0*115.0*50.0 | -- | | | |
| SME600-220S48 | 600 | 180-264 | -- | 48 | 12.5 | 88 | 2000 | 215.0*115.0*50.0 | -- | | | |
| SME600-220SXXD-Y | 600 | 180-264 | 展开 | 24/48 | 12.5-25 | 87-88 | 2000 | 215.0*115.0*50.0 | -- -- | -- | -- | -- |
| SME600-220S24D-B | 600 | 180-264 | -- | 24 | 25 | 87 | 2000 | 215.0*115.0*50.0 | -- | | | |
| SME600-220S48D-B | 600 | 180-264 | -- | 48 | 12.5 | 88 | 2000 | 215.0*115.0*50.0 | -- | | | |
| SME800-220SXX | 800 | 180-264 | 展开 | 24/36/48 | 16.6-33 | 87-88 | 1500 | 215.0*115.0*50.0 | -- -- | -- | -- | -- |
| SME800-220S24 | 800 | 180-264 | -- | 24 | 33 | 87 | 1500 | 215.0*115.0*50.0 | -- | | | |
| SME800-220S36 | 800 | 180-264 | -- | 36 | 22 | 88 | 1500 | 215.0*115.0*50.0 | -- | | | |
| SME800-220S48 | 800 | 180-264 | -- | 48 | 16.6 | 88 | 1500 | 215.0*115.0*50.0 | -- | | | |
| SME1000-220SXX | 1000 | 180-264 | 展开 | 24/36/48 | 20.83-41.66 | 87-88 | 1500 | 240.0*124.0*65.0 | -- -- | -- | -- | -- |
| SME1000-220S24 | 1000 | 180-264 | -- | 24 | 41.66 | 87 | 1500 | 240.0*124.0*65.0 | -- | | | |
| SME1000-220S36 | 1000 | 180-264 | -- | 36 | 27.7 | 88 | 1500 | 240.0*124.0*65.0 | -- | | | |
| SME1000-220S48 | 1000 | 180-264 | -- | 48 | 20.83 | 88 | 1500 | 240.0*124.0*65.0 | -- | | |
