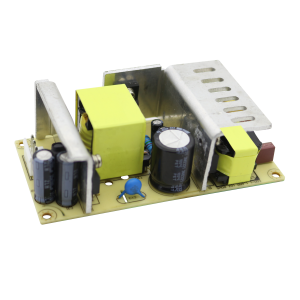

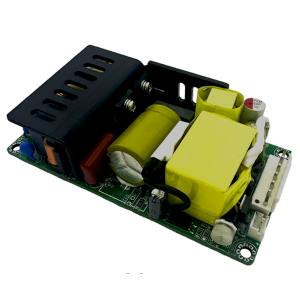

SFC系列产品是中逸光为客户提供一款小体积裸板式开关电源，具有低漏电流小于0.75mA，隔离耐压高达3KV等特点。EMC 及安全规格满足IEC/EN61000-4、CISPR22/EN55022、UL62368/EN62368/IEC62368等相关标准，该系列产品广泛应用于工业控制、充电桩、视觉、光源、物联、自动化等行业中
展开查看更多
祼板型电源
产品中心
PFC型SFC系列
点击展开条件搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效率% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |
| SFC65-SXXB | 65 | 90-264 | 100-370 | 12/15/24/36/48/56 | 1.16-5.41 | 86-90 | 3000 | 101.6*50.8*32.0 | -- -- | -- |  -- |  -- |
| SFC65-S12B | 65 | 90-264 | 100-370 | 12 | 5.41 | 86 | 3000 | 101.6*50.8*29.0 | -- | | | |
| SFC65-S15B | 65 | 90-264 | 100-370 | 15 | 4.33 | 86 | 3000 | 101.6*50.8*29.0 | -- | | | |
| SFC65-S24B | 65 | 90-264 | 100-370 | 24 | 2.7 | 87 | 3000 | 101.6*50.8*29.0 | -- | | | |
| SFC65-S36B | 65 | 90-264 | 100-370 | 36 | 1.8 | 88 | 3000 | 101.6*50.8*29.0 | -- | | | |
| SFC65-S48B | 65 | 90-264 | 100-370 | 48 | 1.35 | 89 | 3000 | 101.6*50.8*29.0 | -- | | | |
| SFC65-S56B | 65 | 90-264 | 100-370 | 56 | 1.16 | 90 | 3000 | 101.6*50.8*29.0 | -- | | | |
| SFC120-SXXVR | 120 | 90-264 | 120-370 | 12/15/24/27/36/48/54 | 2.22-9.5 | 93-95 | 4000 | 76.2*50.8*28.0 | -- -- | -- | -- | -- |
| SFC120-S12VR | 114 | 90-264 | 120-370 | 12 | 9.5 | 93 | 4000 | 76.2*50.8*28.0 | -- | | | |
| SFC120-S15VR | 120 | 90-264 | 120-370 | 15 | 8 | 94 | 4000 | 76.2*50.8*28.0 | -- | | | |
| SFC120-S24VR | 120 | 90-264 | 120-370 | 24 | 5 | 94 | 4000 | 76.2*50.8*28.0 | -- | | | |
| SFC120-S27VR | 120 | 90-264 | 120-370 | 27 | 4.44 | 95 | 4000 | 76.2*50.8*28.0 | -- | | | |
| SFC120-S36VR | 120 | 90-264 | 120-370 | 36 | 3.33 | 93 | 4000 | 76.2*50.8*28.0 | -- | | | |
| SFC120-S48VR | 120 | 90-264 | 120-370 | 48 | 2.5 | 94 | 4000 | 76.2*50.8*28.0 | -- | | | |
| SFC120-S54VR | 120 | 90-264 | 120-370 | 54 | 2.22 | 94 | 4000 | 76.2*50.8*28.0 | -- | | | |

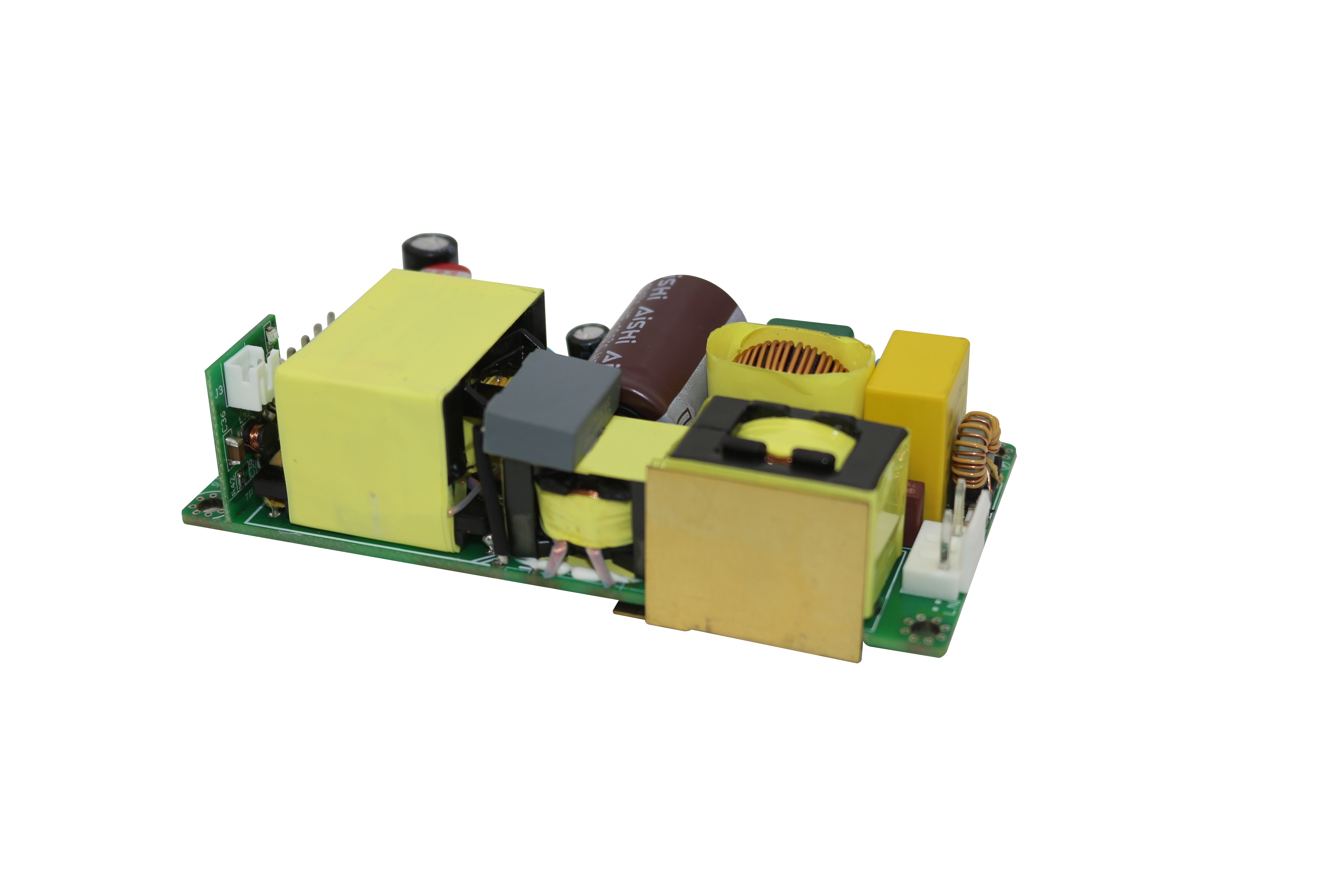

SFC250-SXXVR SFC250-SXXVR | 250 | 90-264 | 100-370 | 12/15/24/27/29/36/48/54 | 4.63-20.83 | 91-93 | 3000 | 101.6*50.8*30.0 | -- -- | -- | -- | -- |
| SFC250-S12VR | 250 | 90-264 | -- | 12 | 20.83 | 91 | 3000 | 101.6*50.8*30.0 | -- | | | |
| SFC250-S15VR | 250 | 90-264 | -- | 15 | 16.67 | 91 | 3000 | 101.6*50.8*30.0 | -- | | | |
| SFC250-S24VR | 250 | 90-264 | -- | 24 | 10.41 | 92 | 3000 | 101.6*50.8*30.0 | -- | | | |
| SFC250-S27VR | 250 | 90-264 | -- | 27 | 9.26 | 93 | 3000 | 101.6*50.8*30.0 | -- | | | |
| SFC250-S29VR | 250 | 90-264 | -- | 29 | 8.62 | 93 | 3000 | 101.6*50.8*30.0 | -- | | | |
| SFC250-S36VR | 250 | 90-264 | -- | 36 | 6.94 | 93 | 3000 | 101.6*50.8*30.0 | -- | | | |
| SFC250-S48VR | 250 | 90-264 | -- | 48 | 5.20 | 93 | 3000 | 101.6*50.8*30.0 | -- | | | |
| SFC250-S54VR | 250 | 90-264 | -- | 54 | 4.63 | 93 | 3000 | 101.6*50.8*30.0 | -- | | | |
| SFC300-SXXVR | 300 | 90-264 | 100-370 | 12/15/24/27/36/48 | 6.25-25 | 91-93 | 3000 | 101.6*50.8*30.0 | -- -- | -- | -- | -- |
| SFC300-S12VR | 300 | 90-264 | -- | 12 | 25 | 91 | 3000 | 101.6*50.8*30.0 | -- | | | |
| SFC300-S15VR | 300 | 90-264 | -- | 15 | 20 | 91 | 3000 | 101.6*50.8*30.0 | -- | | | |
| SFC300-S24VR | 300 | 90-264 | -- | 24 | 12.5 | 93 | 3000 | 101.6*50.8*30.0 | -- | | | |
| SFC300-S27VR | 300 | 90-264 | -- | 27 | 11.11 | 93 | 3000 | 101.6*50.8*30.0 | -- | | | |
| SFC300-S36VR | 300 | 90-264 | -- | 36 | 8.33 | 94 | 3000 | 101.6*50.8*30.0 | -- | | | |
| SFC300-S48VR | 300 | 90-264 | -- | 48 | 6.25 | 94 | 3000 | 101.6*50.8*30.0 | -- | | | |
| SFC350-SXXVR | 350 | 90-264 | 100-370 | 12/15/24/27/36/48 | 7.29-29.1 | 91-94 | 3000 | 127.0*76.2*38.0 | -- -- | -- | -- | -- |
| SFC350-S12VR | 350 | 90-264 | -- | 12 | 29.1 | 91 | 3000 | 127.0*76.2*35.0 | -- | | | |
| SFC350-S15VR | 350 | 90-264 | -- | 15 | 23.3 | 92 | 3000 | 127.0*76.2*35.0 | -- | | | |
| SFC350-S24VR | 350 | 90-264 | -- | 24 | 14.58 | 93 | 3000 | 127.0*76.2*35.0 | -- | | | |
| SFC350-S27VR | 350 | 90-264 | -- | 27 | 12.96 | 93 | 3000 | 127.0*76.2*35.0 | -- | | | |
| SFC350-S36VR | 350 | 90-264 | -- | 36 | 9.72 | 93 | 3000 | 127.0*76.2*35.0 | -- | | | |
| SFC350-S48VR | 350 | 90-264 | -- | 48 | 7.29 | 94 | 3000 | 127.0*76.2*35.0 | -- | | | |

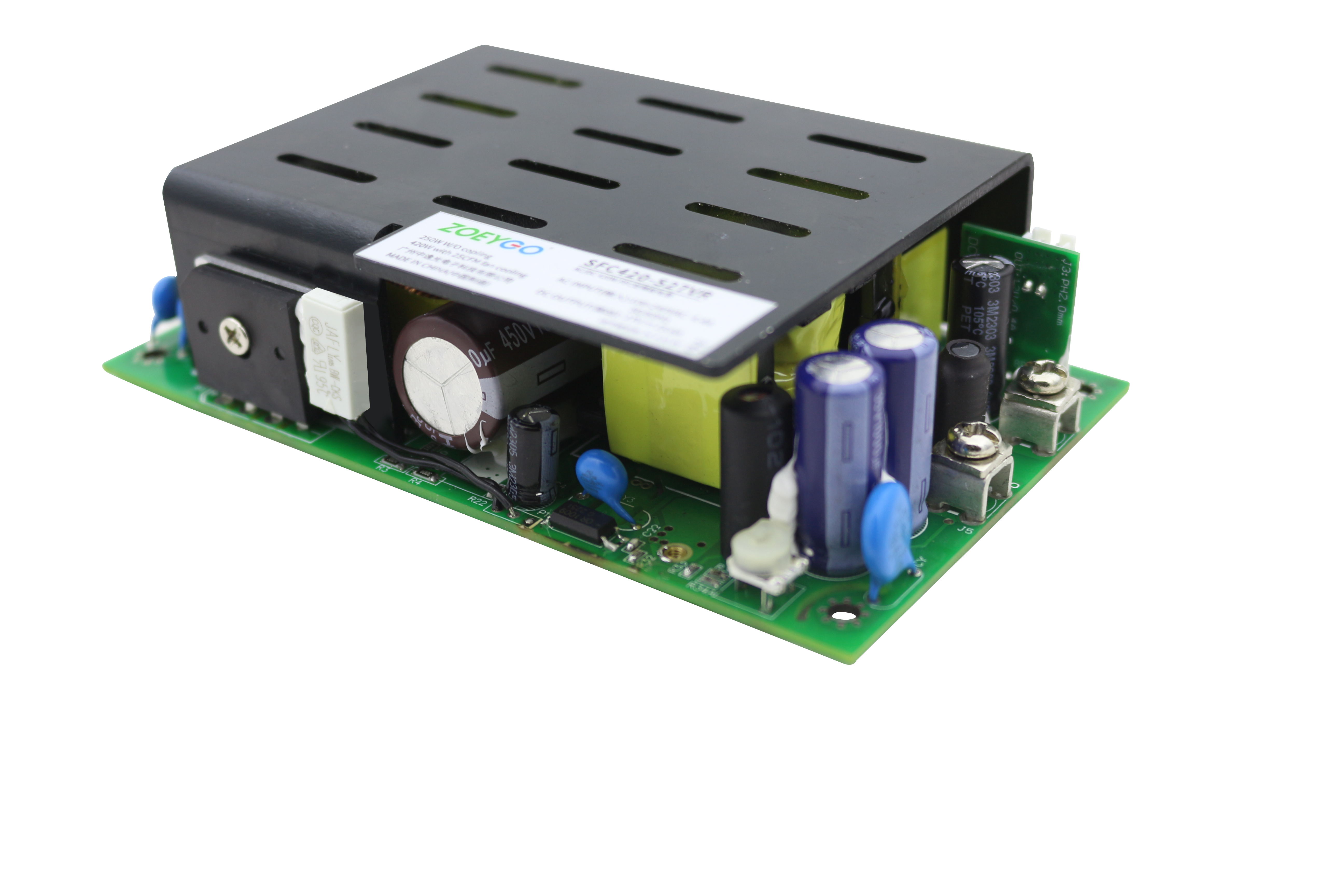

SFC420-SXXVR SFC420-SXXVR | 420 | 90-264 | 100-370 | 12/15/24/27/29/36/48/54 | 7.7-33.3 | 91.5-94 | 3000 | 127.0*76.2*39.0 | -- -- | -- | -- | -- |
| SFC420-S12VR | 400 | 90-264 | -- | 12 | 33.3 | 91.5 | 3000 | 127.0*76.2*39.0 | -- | | | |
| SFC420-S15VR | 400 | 90-264 | -- | 15 | 26.7 | 92 | 3000 | 127.0*76.2*39.0 | -- | | | |
| SFC420-S24VR | 420 | 90-264 | -- | 24 | 17.5 | 93 | 3000 | 127.0*76.2*39.0 | -- | | | |
| SFC420-S27VR | 420 | 90-264 | -- | 27 | 15.5 | 93 | 3000 | 127.0*76.2*39.0 | -- | | | |
| SFC420-S29VR | 420 | 90-264 | -- | 29 | 14.5 | 91 | 3000 | 127.0*76.2*39.0 | -- | | | |
| SFC420-S36VR | 420 | 90-264 | -- | 36 | 11.6 | 93 | 3000 | 127.0*76.2*39.0 | -- | | | |
| SFC420-S48VR | 420 | 90-264 | -- | 48 | 8.7 | 94 | 3000 | 127.0*76.2*39.0 | -- | | | |
| SFC420-S54VR | 420 | 90-264 | -- | 54 | 7.7 | 94 | 3000 | 127.0*76.2*39.0 | -- | | | |
| SFC500-SXXVR | 500 | 90-264 | 100-370 | 12/13.8/15/24/27/36/48/54 | 9.3-41.6 | 93-95 | 3000 | 127.0*76.2*38.0 | -- -- | -- | -- | -- |
| SFC500-S12VR | 500 | 90-264 | -- | 12 | 41.6 | 93 | 3000 | 127.0*76.2*38.0 | -- | | | |
| SFC500-S13V8VR | 500 | 90-264 | -- | 13.8 | 36.2 | 93 | 3000 | 127.0*76.2*38.0 | -- | | | |
| SFC500-S15VR | 500 | 90-264 | -- | 15 | 33.3 | 93 | 3000 | 127.0*76.2*38.0 | -- | | | |
| SFC500-S24VR | 500 | 90-264 | -- | 24 | 20.9 | 94 | 3000 | 127.0*76.2*38.0 | -- | | | |
| SFC500-S27VR | 500 | 90-264 | -- | 27 | 18.5 | 94 | 3000 | 127.0*76.2*38.0 | -- | | | |
| SFC500-S36VR | 500 | 90-264 | -- | 36 | 13.9 | 95 | 3000 | 127.0*76.2*38.0 | -- | | | |
| SFC500-S48VR | 500 | 90-264 | -- | 48 | 10.4 | 95 | 3000 | 127.0*76.2*38.0 | -- | | | |
| SFC500-S54VR | 500 | 90-264 | -- | 54 | 9.3 | 95 | 3000 | 127.0*76.2*38.0 | -- | | | |
| SFC600-SXXVR | 600 | 90-264 | 100-370 | 12/15/24/27/36/48/54 | 11.2-50 | 93-94 | 3000 | 127.0*76.2*38.0 | -- -- | -- | -- | -- |
| SFC600-S12VR | 600 | 90-264 | -- | 12 | 50 | 93 | 3000 | 127.0*76.2*38.0 | -- | | | |
| SFC600-S15VR | 600 | 90-264 | -- | 15 | 40 | 93 | 3000 | 127.0*76.2*38.0 | -- | | | |
| SFC600-S24VR | 600 | 90-264 | -- | 24 | 25 | 93 | 3000 | 127.0*76.2*38.0 | -- | | | |
| SFC600-S27VR | 600 | 90-264 | -- | 27 | 22.3 | 93 | 3000 | 127.0*76.2*38.0 | -- | | | |
| SFC600-S36VR | 600 | 90-264 | -- | 36 | 16.7 | 93 | 3000 | 127.0*76.2*38.0 | -- | | | |
| SFC600-S48VR | 600 | 90-264 | -- | 48 | 12.5 | 93 | 3000 | 127.0*76.2*38.0 | -- | | | |
| SFC600-S54VR | 600 | 90-264 | -- | 54 | 11.2 | 94 | 3000 | 127.0*76.2*38.0 | -- | | |
