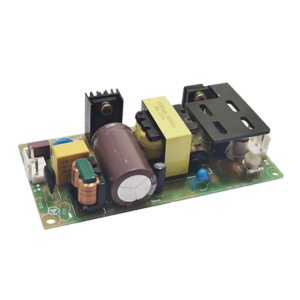

SFE系列产品是中逸光为客户提供的国产化裸板式开关电源，隔离耐压高达3000V，EMC及安全规格满足IEC/EN61000-4、CISPR32/EN55032、UL62368/EN62368/IEC62368等相关标准，该系列产品广泛应用于工业控制、充电桩、视觉、光源、物联、自动化等行业中。
展开查看更多
祼板型电源
产品中心
经济型SFE系列
点击展开条件搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效率% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |
SFE25-SXXVR SFE25-SXXVR | 25 | 90-264 | 100-370 | 5/12/15/24/48 | 0.52-5 | 78-90 | 3000 | 76.2*50.8*28.0 | -- -- | -- |  -- |  -- |
| SFE25-S05VR | 25 | 90-264 | 120-370 | 5 | 5 | 78 | 3000 | 76.2*50.8*28.0 | -- | | | |
| SFE25-S12VR | 25 | 90-264 | 120-370 | 12 | 2.08 | 88 | 3000 | 76.2*50.8*28.0 | -- | | | |
| SFE25-S15VR | 25 | 90-264 | 120-370 | 15 | 1.66 | 89 | 3000 | 76.2*50.8*28.0 | -- | | | |
| SFE25-S24VR | 25 | 90-264 | 120-370 | 24 | 1.04 | 89 | 3000 | 76.2*50.8*28.0 | -- | | | |
| SFE25-S48VR | 25 | 90-264 | 120-370 | 48 | 0.52 | 90 | 3000 | 76.2*50.8*28.0 | -- | | | |
| SFE35-SXXBVR | 35 | 85-264 | 100-370 | 5/12/15/24/48 | 0.73-7 | 78-88 | 3000 | 101.6*50.8*26.0 | -- -- | -- | -- | -- |
| SFE35-S05BVR | 35 | 85-264 | 100-370 | 5 | 7 | 78 | 3000 | 101.6*50.8*26.0 | -- | | | |
| SFE35-S12BVR | 35 | 85-264 | 100-370 | 12 | 2.91 | 87 | 3000 | 101.6*50.8*26.0 | -- | | | |
| SFE35-S15BVR | 35 | 85-264 | 100-370 | 15 | 2.33 | 87 | 3000 | 101.6*50.8*26.0 | -- | | | |
| SFE35-S24BVR | 35 | 85-264 | 100-370 | 24 | 1.45 | 87 | 3000 | 101.6*50.8*26.0 | -- | | | |
| SFE35-S48BVR | 35 | 85-264 | 100-370 | 48 | 0.73 | 88 | 3000 | 101.6*50.8*26.0 | -- | | | |
| SFE35-SXXVR | 35 | 90-264 | 100-370 | 5/12/15/24/48 | 0.73-7 | 78-90 | 3000 | 76.2*50.8*27.0 | -- -- | -- | -- | -- |
| SFE35-S05VR | 35 | 90-264 | 120-370 | 5 | 7 | 78 | 3000 | 76.2*50.8*27.0 | -- | | | |
| SFE35-S12VR | 35 | 90-264 | 120-370 | 12 | 2.91 | 88 | 3000 | 76.2*50.8*27.0 | -- | | | |
| SFE35-S15VR | 35 | 90-264 | 120-370 | 15 | 2.33 | 88 | 3000 | 76.2*50.8*27.0 | -- | | | |
| SFE35-S24VR | 35 | 90-264 | 120-370 | 24 | 1.45 | 90 | 3000 | 76.2*50.8*27.0 | -- | | | |
| SFE35-S48VR | 35 | 90-264 | 120-370 | 48 | 0.73 | 90 | 3000 | 76.2*50.8*27.0 | -- | | | |
SFE65-SXXBVR SFE65-SXXBVR | 65 | 90-264 | 100-370 | 5/12/15/24/48 | 1.35-11 | 81-90 | 3000 | 101.6*50.8*32.0 | -- -- | -- | -- | -- |
| SFE65-S05BVR | 55 | 90-264 | 100-370 | 5 | 11 | 81 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SFE65-S12BVR | 65 | 90-264 | 100-370 | 12 | 5.42 | 89 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SFE65-S15BVR | 65 | 90-264 | 100-370 | 15 | 4.34 | 89 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SFE65-S24BVR | 65 | 90-264 | 100-370 | 24 | 2.71 | 88 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SFE65-S48BVR | 65 | 90-264 | 100-370 | 48 | 1.35 | 90 | 3000 | 101.6*50.8*32.0 | -- | | | |
SFE65-SXXBVRR2 SFE65-SXXBVRR2 | 65 | 90-305 | 100-430 | 5/12/15/24/48 | 1.35-11 | 81-91 | 3000 | 101.6*50.8*32.0 | -- -- | -- | -- | -- |
| SFE65-S05BVRR2 | 55 | 90-305 | 100-430 | 5 | 11 | 81 | 3000 | 101.6*50.8*29.0 | -- | | | |
| SFE65-S12BVRR2 | 65 | 90-305 | 100-430 | 12 | 5.42 | 90 | 3000 | 101.6*50.8*29.0 | -- | | | |
| SFE65-S15BVRR2 | 65 | 90-305 | 100-430 | 15 | 4.34 | 90 | 3000 | 101.6*50.8*29.0 | -- | | | |
| SFE65-S24BVRR2 | 65 | 90-305 | 100-430 | 24 | 2.71 | 88 | 3000 | 101.6*50.8*29.0 | -- | | | |
| SFE65-S48BVRR2 | 65 | 90-305 | 100-430 | 48 | 1.35 | 91 | 3000 | 101.6*50.8*29.0 | -- | | | |
| SFE65-SXXVR | 65 | 90-264 | 100-370 | 5/12/15/24/48 | 1.35-9 | 82-90 | 3000 | 76.2*50.8*26.0 | -- -- | -- | -- | -- |
| SFE65-S05VR | 45 | 90-264 | 100-370 | 5 | 9 | 82 | 3000 | 76.2*50.8*26.0 | -- | | | |
| SFE65-S12VR | 65 | 90-264 | 100-370 | 12 | 5.42 | 89 | 3000 | 76.2*50.8*26.0 | -- | | | |
| SFE65-S15VR | 65 | 90-264 | 100-370 | 15 | 4.34 | 89 | 3000 | 76.2*50.8*26.0 | -- | | | |
| SFE65-S24VR | 65 | 90-264 | 100-370 | 24 | 2.71 | 89 | 3000 | 76.2*50.8*26.0 | -- | | | |
| SFE65-S48VR | 65 | 90-264 | 100-370 | 48 | 1.35 | 90 | 3000 | 76.2*50.8*26.0 | -- | | | |
| SFE65-SXXVRR2 | 65 | 90-305 | 100-430 | 5/12/15/24/48 | 1.35-9 | 82-90 | 3000 | 76.2*50.8*26.0 | -- -- | -- | -- -- | -- |
| SFE65-S05VRR2 | 45 | 90-305 | 100-430 | 5 | 9 | 82 | 3000 | 76.2*50.8*26.0 | -- | -- | | |
| SFE65-S12VRR2 | 65 | 90-305 | 100-430 | 12 | 5.42 | 89 | 3000 | 76.2*50.8*26.0 | -- | -- | | |
| SFE65-S15VRR2 | 65 | 90-305 | 100-430 | 15 | 4.34 | 89 | 3000 | 76.2*50.8*26.0 | -- | -- | | |
| SFE65-S24VRR2 | 65 | 90-305 | 100-430 | 24 | 2.71 | 89 | 3000 | 76.2*50.8*26.0 | -- | -- | | |
| SFE65-S48VRR2 | 65 | 90-305 | 100-430 | 48 | 1.35 | 90 | 3000 | 76.2*50.8*26.0 | -- | -- | | |

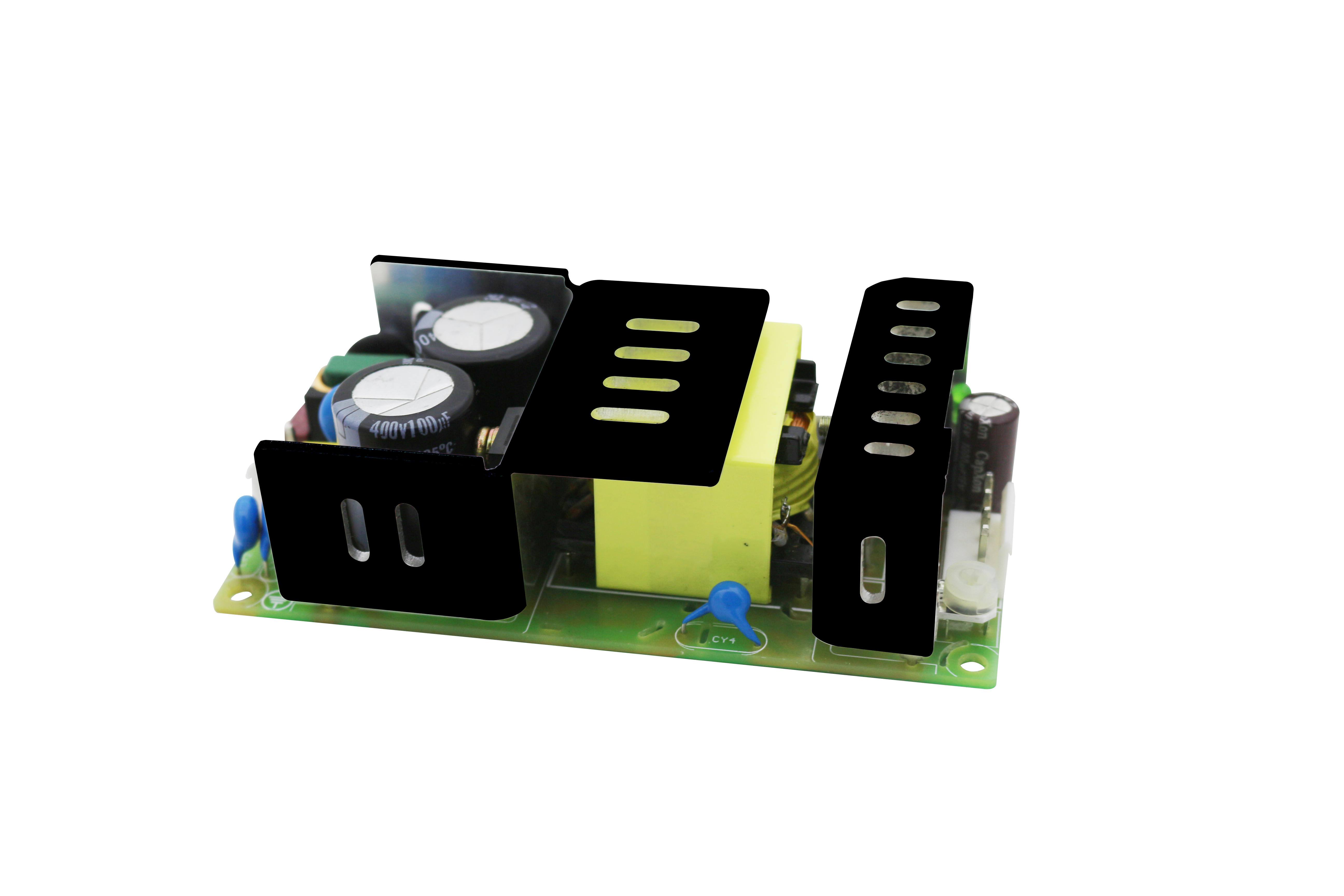

SFE150-SXXVR SFE150-SXXVR | 150 | 90-264 | 100-370 | 9/12/15/24/27/36/48 | 3.125-12.5 | 84-90 | 3000 | 101.6*50.8*32.0 | -- -- | -- | -- | -- |
| SFE150-S09VR | 112.5 | 90-264 | 100-370 | 9 | 12.5 | 84 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SFE150-S12VR | 150 | 90-264 | 100-370 | 12 | 12.5 | 86 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SFE150-S15VR | 150 | 90-264 | 100-370 | 15 | 10.0 | 86 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SFE150-S24VR | 150 | 90-264 | 100-370 | 24 | 6.25 | 87 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SFE150-S27VR | 150 | 90-264 | 100-370 | 27 | 5.55 | 88 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SFE150-S36VR | 150 | 90-264 | 100-370 | 36 | 4.16 | 88 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SFE150-S48VR | 150 | 90-264 | 100-370 | 48 | 3.125 | 90 | 3000 | 101.6*50.8*32.0 | -- | | |
