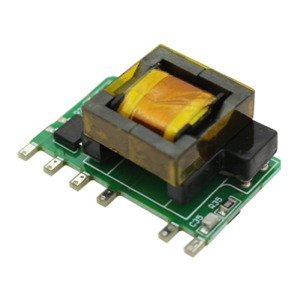

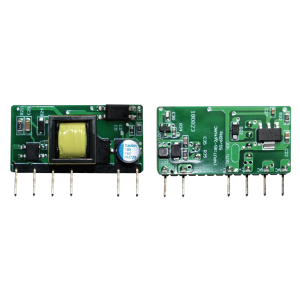

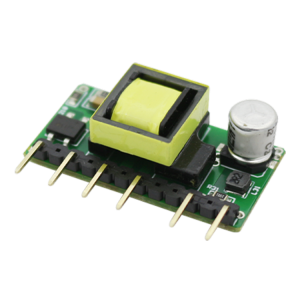

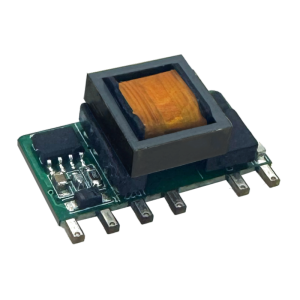

SFA系列产品是中逸光为客户提供一款小体积裸板式开关电源，具有低漏电流小于0.35mA，隔离耐压高达3KV等特点。产品安全可靠，EMC 性能好，满足UL62368-1,EN62368-1等相关标准，该系列产品广泛应用于智能家居、充电桩、安防、物联、工控等行业中，如应用于电磁兼容比较恶劣的环境时必须参考应用电路。
展开查看更多
祼板型电源
产品中心
SIP型SFA系列
点击展开条件搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效率% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |

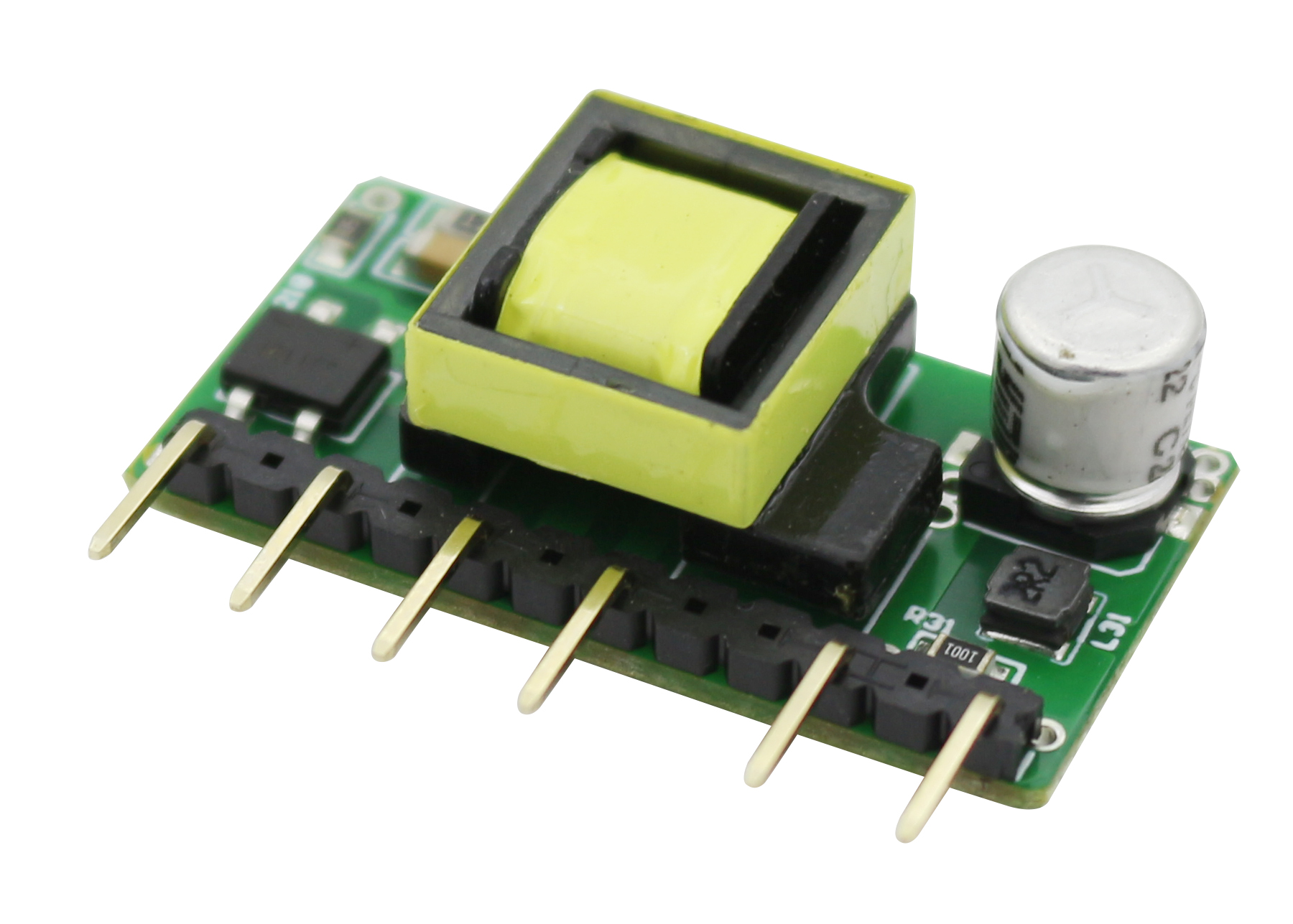

SFA03-SXXR2 SFA03-SXXR2 | 3 | 85-305 | 100-430 | 5/9/12/15/24 | 0.125-0.6 | 70-78 | 3000 | 33.0*17.5*12.0 | -- -- | -- |  -- |  -- |
| SFA03-S05R2 | 3 | 85-305 | 100-430 | 5 | 0.6 | 70 | 3000 | 33.0*17.5*12.0 | -- | | | |
| SFA03-S09R2 | 3 | 85-305 | 100-430 | 9 | 0.333 | 72 | 3000 | 33.0*17.5*12.0 | -- | | | |
| SFA03-S12R2 | 3 | 85-305 | 100-430 | 12 | 0.25 | 74 | 3000 | 33.0*17.5*12.0 | -- | | | |
| SFA03-S15R2 | 3 | 85-305 | 100-430 | 15 | 0.2 | 76 | 3000 | 33.0*17.5*12.0 | -- | | | |
| SFA03-S24R2 | 3 | 85-305 | 100-430 | 24 | 0.125 | 78 | 3000 | 33.0*17.5*12.0 | -- | | | |

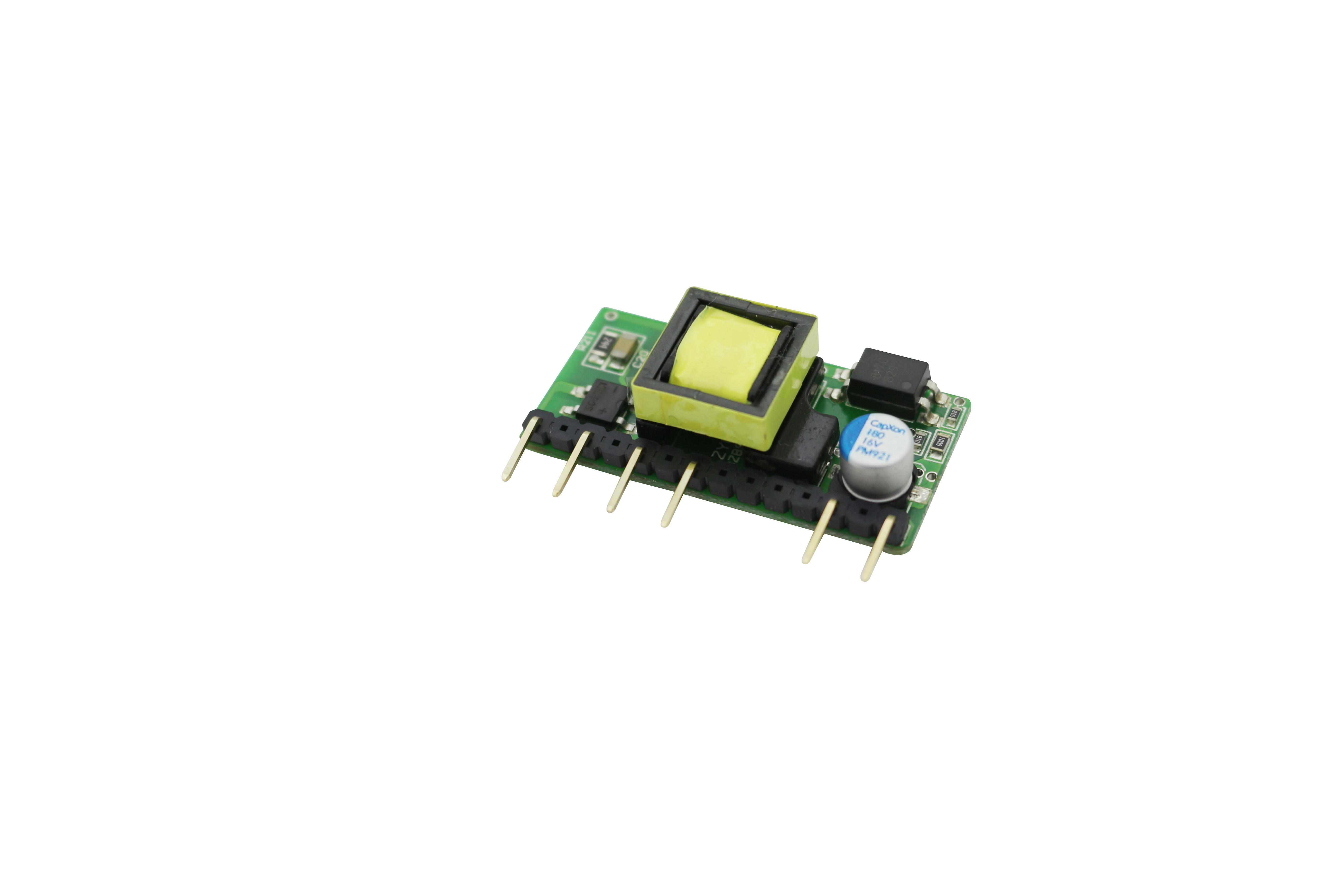

SFA05-SXXR2 SFA05-SXXR2 | 5 | 85-305 | 100-430 | 3.3/5/9/12/15/24 | 0.21-1 | 67-80 | 3000 | 37.0*18.5*11.5 | -- -- | -- | -- | -- |
| SFA05-S03R2 | 3.3 | 85-305 | 100-430 | 3.3 | 1 | 67 | 3000 | 37.0*18.5*11.5 | -- | | | |
| SFA05-S05R2 | 5 | 85-305 | 100-430 | 5 | 1 | 73 | 3000 | 37.0*18.5*11.5 | -- | | | |
| SFA05-S09R2 | 5 | 85-305 | 100-430 | 9 | 0.55 | 76 | 3000 | 37.0*18.5*11.5 | -- | | | |
| SFA05-S12R2 | 5 | 85-305 | 100-430 | 12 | 0.42 | 78 | 3000 | 37.0*18.5*11.5 | -- | | | |
| SFA05-S15R2 | 5 | 85-305 | 100-430 | 15 | 0.33 | 80 | 3000 | 37.0*18.5*11.5 | -- | | | |
| SFA05-S24R2 | 5 | 85-305 | 100-430 | 24 | 0.21 | 78 | 3000 | 37.0*18.5*11.5 | -- | | | |

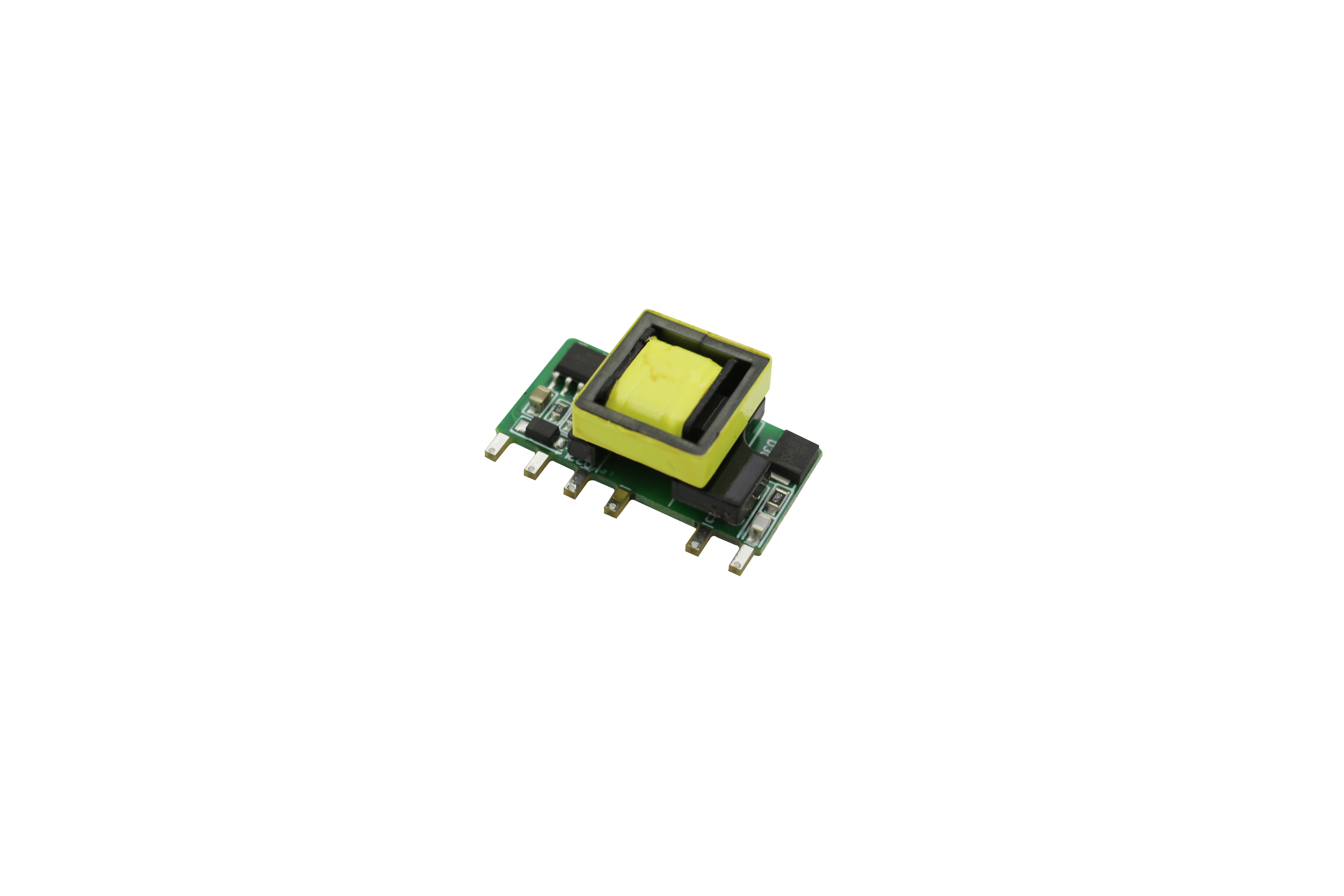

SFA05-SXXR3 SFA05-SXXR3 | 5 | 85-305 | 100-430 | 3.3/5/9/12/12.5/15/24 | 0.21-1 | 72-78 | 3000 | 26.5*13.5*11.5 | -- -- | -- | -- | -- |
| SFA05-S03R3 | 3.3 | 85-305 | 100-430 | 3.3 | 1 | 72 | 3000 | 26.5*13.5*11.5 | -- | | | |
| SFA05-S05R3 | 4 | 85-305 | 100-430 | 5 | 0.8 | 72 | 3000 | 26.5*13.5*11.5 | -- | | | |
| SFA05-S09R3 | 5 | 85-305 | 100-430 | 9 | 0.55 | 78 | 3000 | 26.5*13.5*11.5 | -- | | | |
| SFA05-S12R3 | 5 | 85-305 | 100-430 | 12 | 0.42 | 78 | 3000 | 26.5*13.5*11.5 | -- | | | |
| SFA05-S12V5R3 | 5 | 85-305 | 100-430 | 12.5 | 0.4 | 78 | 3000 | 26.5*13.5*11.5 | -- | | | |
| SFA05-S15R3 | 5 | 85-305 | 100-430 | 15 | 0.33 | 78 | 3000 | 26.5*13.5*11.5 | -- | | | |
| SFA05-S24R3 | 5 | 85-305 | 100-430 | 24 | 0.21 | 78 | 3000 | 26.5*13.5*11.5 | -- | | | |

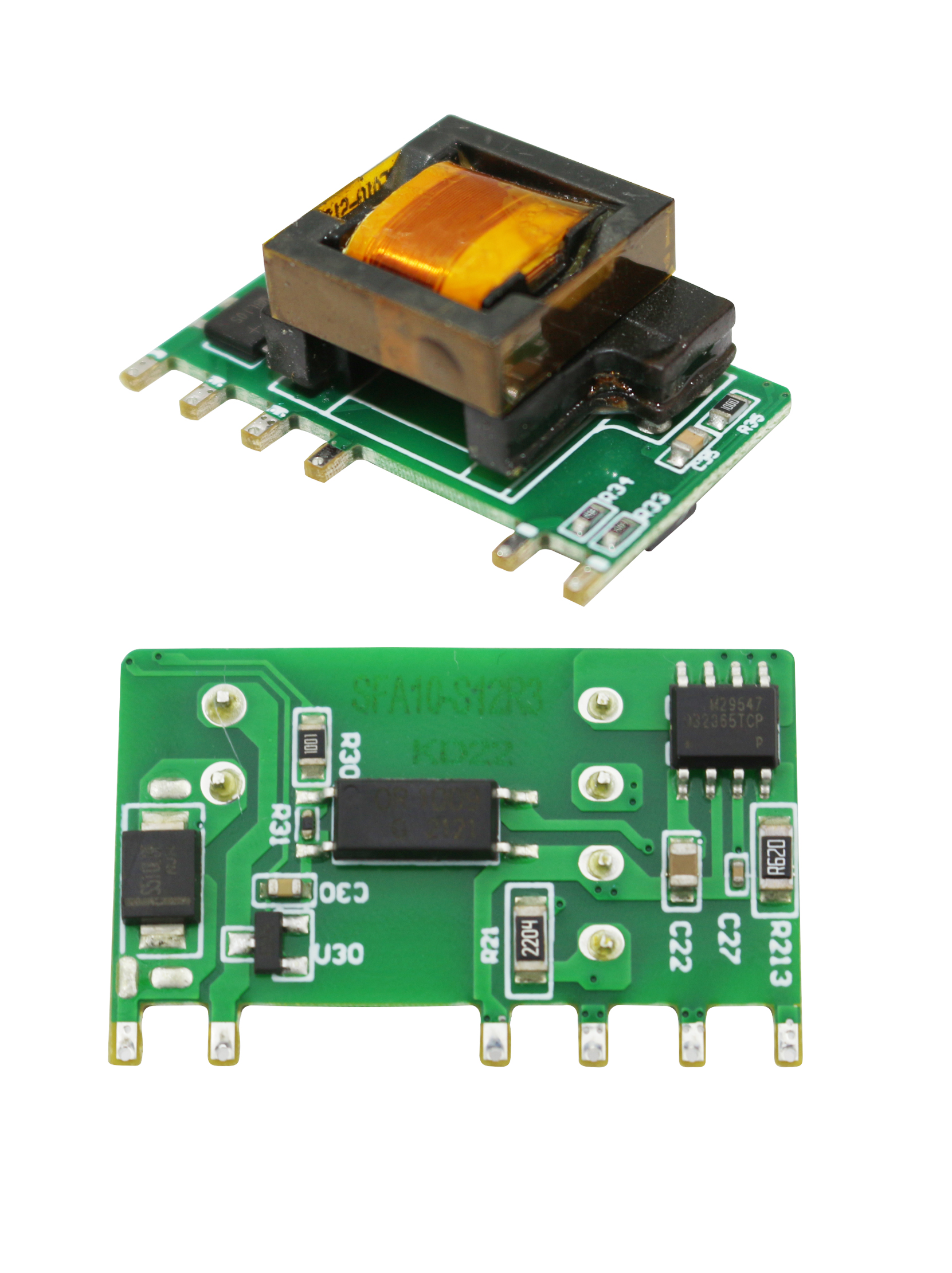

SFA10-SXXR3 SFA10-SXXR3 | 10 | 85-305 | 100-430 | 5/12/15/24 | 0.42-2 | 71-83 | 3000 | 32.0*20.0*15.0 | -- -- | -- | -- | -- |
| SFA10-S05R3 | 10 | 85-305 | 100-430 | 5 | 2 | 71 | 3000 | 32.0*20.0*15.0 | -- | | | |
| SFA10-S12R3 | 10 | 85-305 | 100-430 | 12 | 0.83 | 78 | 3000 | 32.0*20.0*15.0 | -- | | | |
| SFA10-S15R3 | 10 | 85-305 | 100-430 | 15 | 0.66 | 82 | 3000 | 32.0*20.0*15.0 | -- | | | |
| SFA10-S24R3 | 10 | 85-305 | 100-430 | 24 | 0.42 | 83 | 3000 | 32.0*20.0*15.0 | -- | | | |

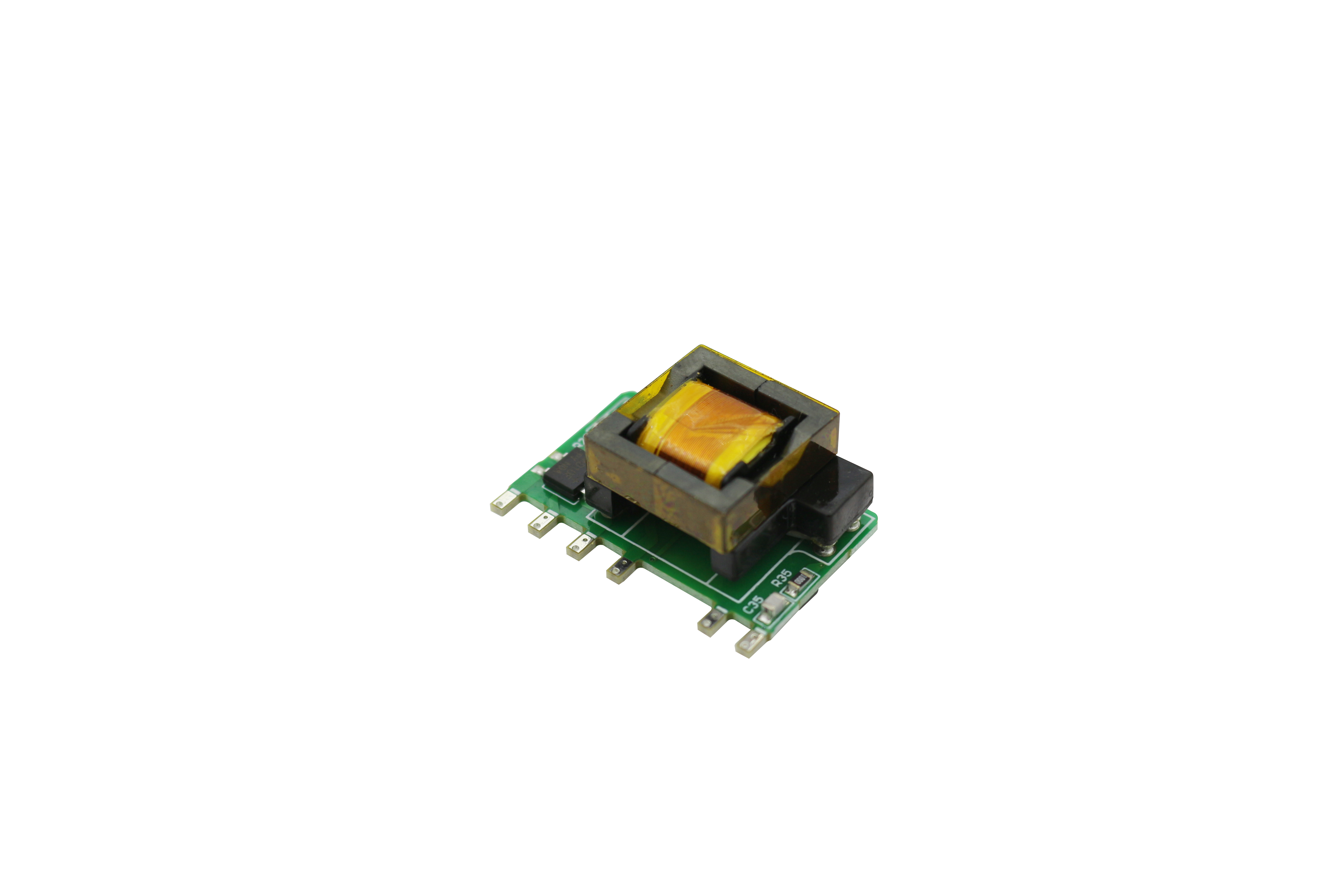

SFA10-SXXR3P SFA10-SXXR3P | 10 | 85-305 | 100-430 | 5/12/15/24 | 0.42-2 | 69-82 | 3000 | 28.84*20.0*14.05 | -- -- | -- | -- | -- |
| SFA10-S05R3P | 10 | 85-305 | 100-430 | 5 | 2 | 69 | 3000 | 28.84*20.00*14.05 | -- | | | |
| SFA10-S12R3P | 10 | 85-305 | 100-430 | 12 | 0.83 | 78 | 3000 | 28.84*20.00*14.05 | -- | | | |
| SFA10-S15R3P | 10 | 85-305 | 100-430 | 15 | 0.66 | 80 | 3000 | 28.84*20.00*14.05 | -- | | | |
| SFA10-S24R3P | 10 | 85-305 | 100-430 | 24 | 0.42 | 82 | 3000 | 28.84*20.00*14.05 | -- | | | |

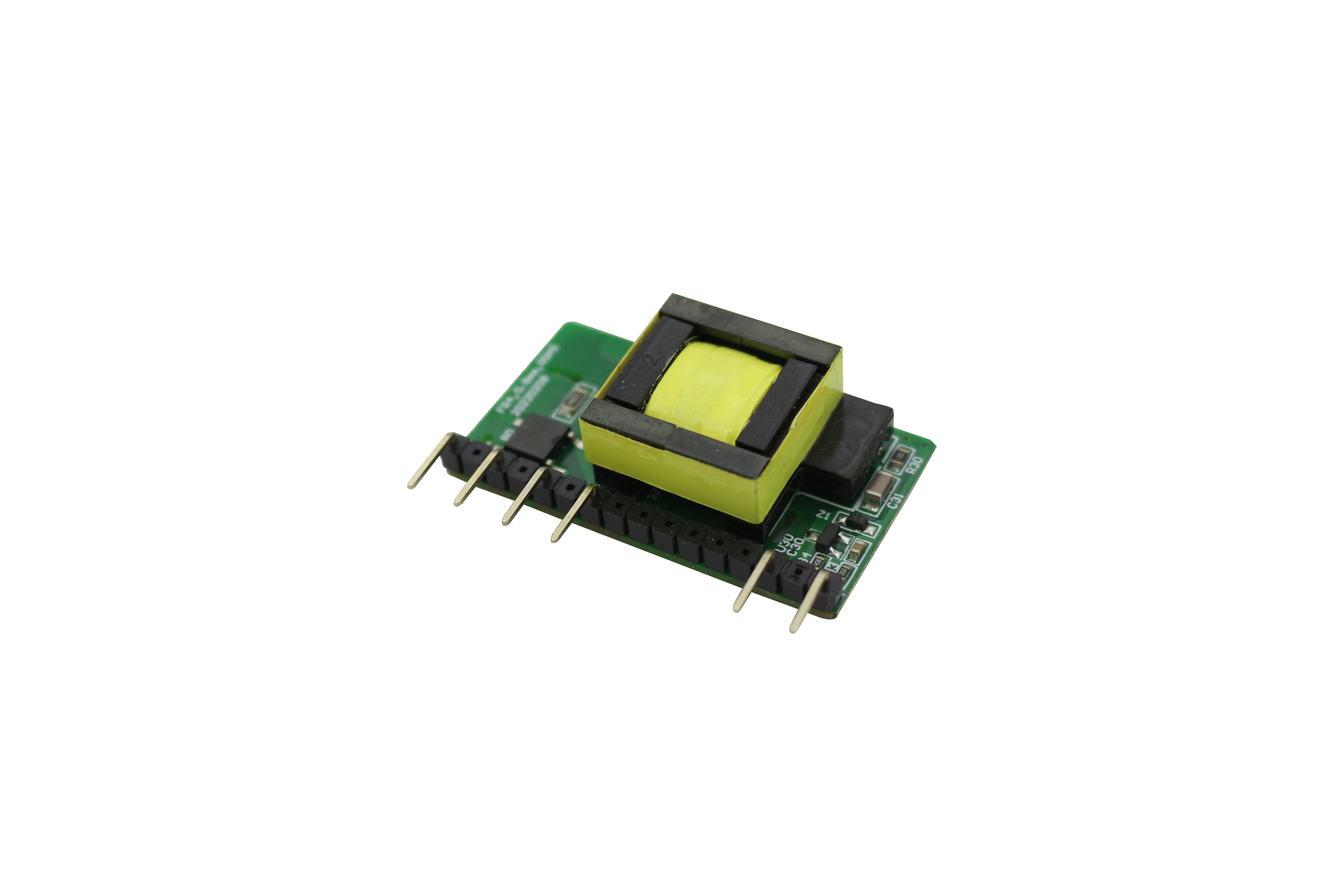

SFA15-SXX SFA15-SXX | 15 | 85-305 | 100-430 | 3.3/5/12/12.5/15/24 | 0.625-3 | 79-86 | 3000 | 41.0*23.5*15.0 | -- -- | -- | -- | -- |
| SFA15-S03 | 9.9 | 85-305 | 100-430 | 3.3 | 3 | 79 | 3000 | 41.0*23.5*15.0 | -- | | | |
| SFA15-S05 | 14 | 85-305 | 100-430 | 5 | 2.8 | 79 | 3000 | 41.0*23.5*15.0 | -- | | | |
| SFA15-S12 | 15 | 85-305 | 100-430 | 12 | 1.25 | 86 | 3000 | 41.0*23.5*15.0 | -- | | | |
| SFA15-S12V5 | 15 | 85-305 | 100-430 | 12.5 | 1.2 | 86 | 3000 | 41.0*23.5*15.0 | -- | | | |
| SFA15-S15 | 15 | 85-305 | 100-430 | 15 | 1 | 86 | 3000 | 41.0*23.5*15.0 | -- | | | |
| SFA15-S24 | 15 | 85-305 | 100-430 | 24 | 0.625 | 85 | 3000 | 41.0*23.5*15.0 | -- | | |
