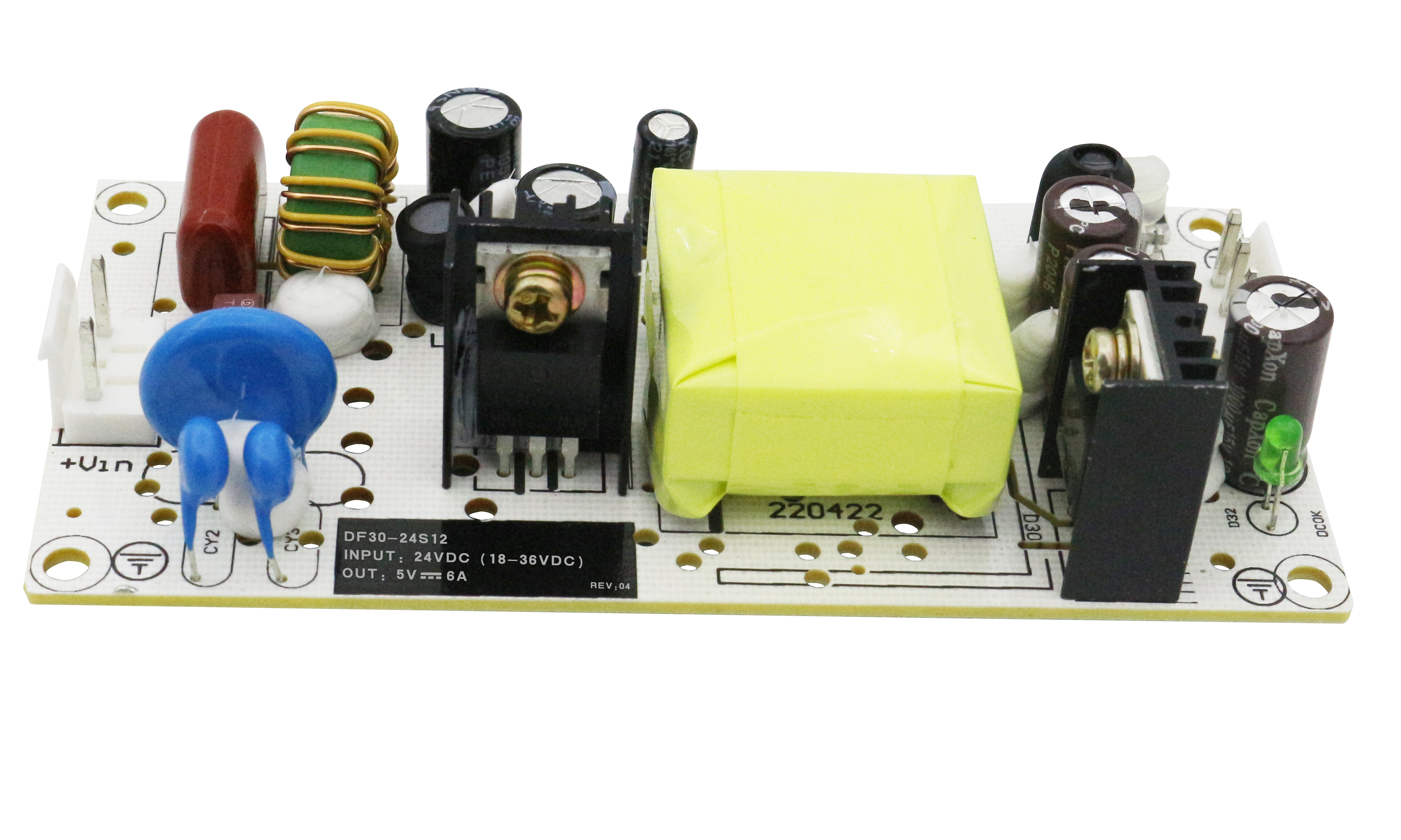

DF系列产品是中逸光为客户提供一款小体积裸板式DC/DC开关电源，具有低漏电流小于0.75mA。产品安全可靠，EMC 性能好，满足UL62368-1,EN62368-1等相关标准，该系列产品广泛应用于工业控制、通讯、射频等行业中，如应用于电磁兼容比较恶劣的环境时必须参考应用电路。
展开查看更多
祼板型电源
产品中心
标准型DF系列
点击展开条件搜索框
| 系列标题 | 功率 (W) | 输入电压 (VDC) | 输出电压 (VDC) | 输出路数 | 隔离电压 (VAC) | 封装形式 | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |
| DF15-XXSYYVR | 15 | 18-36/36-75 | 5/9/12/15/24 | 1 | 1500 | PCB Only | 94.0*49.0*28.0 | -- -- | -- |  -- |  -- |
| DF15-24S05VR | 15 | 24(18-36) | 5 | 1 | 1500 | PCB Only | 94.0*49.0*28.0 | -- | | | |
| DF15-24S09VR | 15 | 24(18-36) | 9 | 1 | 1500 | PCB Only | 94.0*49.0*28.0 | -- | | | |
| DF15-24S12VR | 15 | 24(18-36) | 12 | 1 | 1500 | PCB Only | 94.0*49.0*28.0 | -- | | | |
| DF15-24S15VR | 15 | 24(18-36) | 15 | 1 | 1500 | PCB Only | 94.0*49.0*28.0 | -- | | | |
| DF15-24S24VR | 15 | 24(18-36) | 24 | 1 | 1500 | PCB Only | 94.0*49.0*28.0 | -- | | | |
| DF15-48S05VR | 15 | 48(36-75) | 5 | 1 | 1500 | PCB Only | 94.0*49.0*28.0 | -- | | | |
| DF15-48S09VR | 15 | 48(36-75) | 9 | 1 | 1500 | PCB Only | 94.0*49.0*28.0 | -- | | | |
| DF15-48S12VR | 15 | 48(36-75) | 12 | 1 | 1500 | PCB Only | 94.0*49.0*28.0 | -- | | | |
| DF15-48S15VR | 15 | 48(36-75) | 15 | 1 | 1500 | PCB Only | 94.0*49.0*28.0 | -- | | | |
| DF15-48S24VR | 15 | 48(36-75) | 24 | 1 | 1500 | PCB Only | 94.0*49.0*28.0 | -- | | | |
| DF30-XXSYYVR | 30 | 18-36/36-75 | 5/9/12/15/24 | 1 | 1500 | PCB Only | 101.6*50.8*26.0 | -- -- | -- | -- | -- |
| DF30-24S05VR | 30 | 24(18-36) | 5 | 1 | 1500 | PCB Only | 101.6*50.8*26.0 | -- | | | |
| DF30-24S09VR | 30 | 24(18-36) | 9 | 1 | 1500 | PCB Only | 101.6*50.8*26.0 | -- | | | |
| DF30-24S12VR | 30 | 24(18-36) | 12 | 1 | 1500 | PCB Only | 101.6*50.8*26.0 | -- | | | |
| DF30-24S15VR | 30 | 24(18-36) | 15 | 1 | 1500 | PCB Only | 101.6*50.8*26.0 | -- | | | |
| DF30-24S24VR | 30 | 24(18-36) | 24 | 1 | 1500 | PCB Only | 101.6*50.8*26.0 | -- | | | |
| DF30-48S05VR | 30 | 48(36-75) | 5 | 1 | 1500 | PCB Only | 101.6*50.8*26.0 | -- | | | |
| DF30-48S09VR | 30 | 48(36-75) | 9 | 1 | 1500 | PCB Only | 101.6*50.8*26.0 | -- | | | |
| DF30-48S12VR | 30 | 48(36-75) | 12 | 1 | 1500 | PCB Only | 101.6*50.8*26.0 | -- | | | |
| DF30-48S15VR | 30 | 48(36-75) | 15 | 1 | 1500 | PCB Only | 101.6*50.8*26.0 | -- | | | |
| DF30-48S24VR | 30 | 48(36-75) | 24 | 1 | 1500 | PCB Only | 101.6*50.8*26.0 | -- | | | |
| DF65-XXSYY | 65 | 18-36/36-75 | 9/12/15/24 | 1 | 1500 | PCB Only | 76.2*50.8*30.0 | -- -- | -- | -- | -- |
| DF60-24S09 | 60 | 24(18-36) | 9 | 1 | 1500 | PCB Only | 76.2*50.8*30.0 | -- | | | |
| DF60-24S12 | 60 | 24(18-36) | 12 | 1 | 1500 | PCB Only | 76.2*50.8*30.0 | -- | | | |
| DF60-24S15 | 60 | 24(18-36) | 15 | 1 | 1500 | PCB Only | 76.2*50.8*30.0 | -- | | | |
| DF60-24S24 | 60 | 24(18-36) | 24 | 1 | 1500 | PCB Only | 76.2*50.8*30.0 | -- | | | |
| DF65-48S09 | 65 | 48(36-75) | 9 | 1 | 1500 | PCB Only | 76.2*50.8*30.0 | -- | | | |
| DF65-48S12 | 65 | 48(36-75) | 12 | 1 | 1500 | PCB Only | 76.2*50.8*30.0 | -- | | | |
| DF65-48S15 | 65 | 48(36-75) | 15 | 1 | 1500 | PCB Only | 76.2*50.8*30.0 | -- | | | |
| DF65-48S24 | 65 | 48(36-75) | 24 | 1 | 1500 | PCB Only | 76.2*50.8*30.0 | -- | | |
