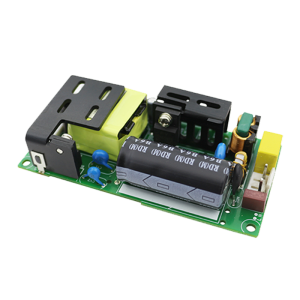

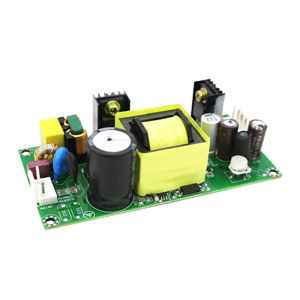

基板型SF系列是中逸光为客户提供一款经济型裸板式开关电源，具有可靠性高、小体积、性价比高等特点，广泛应用于工控和电力仪器、仪表、智能家居等相关行业。
展开查看更多
祼板型电源
产品中心
标准型SF系列
点击展开条件搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效率% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |

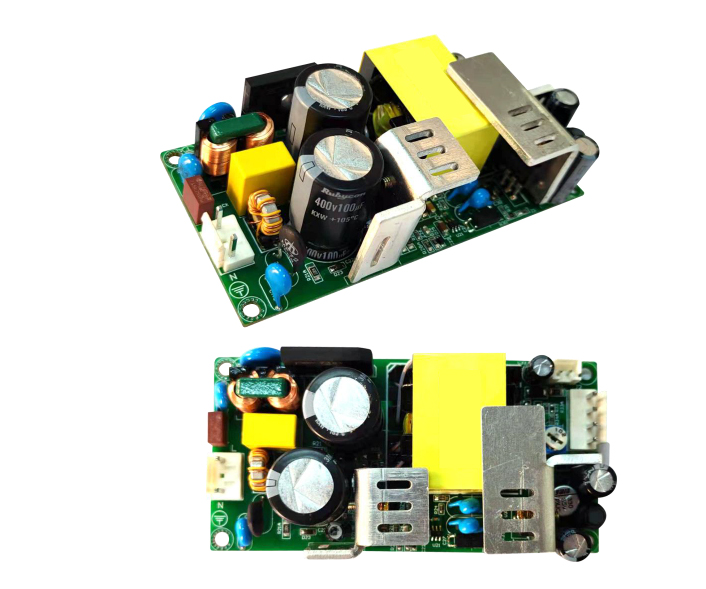

SF150-SXXVR SF150-SXXVR | 150 | 90-264 | 100-370 | 12-48 | 展开 | 展开 | 3000 | 101.6*50.8*32 | -- -- | -- |  -- |  -- |
| SF150-S48VR | 150 | 90-264 | 100-370 | 48 | 3.12 | 92 | 3000 | 101.6*50.8*29 | -- | | | |
| SF150-S36VR | 150 | 90-264 | 100-370 | 36 | 4.16 | 91 | 3000 | 101.6*50.8*29 | -- | | | |
| SF150-S24VR | 150 | 90-264 | 100-370 | 24 | 6.25 | 91 | 3000 | 101.6*50.8*29 | -- | | | |
| SF150-S15VR | 150 | 90-264 | 100-370 | 15 | 9.3 | 91 | 3000 | 101.6*50.8*29 | -- | | | |
| SF150-S12VR | 150 | 90-264 | 100-370 | 12 | 11.6 | 89 | 3000 | 101.6*50.8*29 | -- | | | |
| SF120-SXXVR | 120 | 90-264 | 100-370 | 12-48 | 展开 | 展开 | 3000 | 101.6*50.8*32 | -- -- | -- | -- -- | -- |
| SF120-S48VR | 120 | 90-264 | 100-370 | 48 | 2.5 | 92 | 3000 | 101.6*50.8*29 | -- | -- | | |
| SF120-S36VR | 120 | 90-264 | 100-370 | 36 | 3.33 | 91 | 3000 | 101.6*50.8*29 | -- | -- | | |
| SF120-S24VR | 120 | 90-264 | 100-370 | 24 | 5 | 91 | 3000 | 101.6*50.8*29 | -- | -- | | |
| SF120-S15VR | 120 | 90-264 | 100-370 | 15 | 8 | 91 | 3000 | 101.6*50.8*29 | -- | -- | | |
| SF120-S12VR | 120 | 90-264 | 100-370 | 12 | 10 | 89 | 3000 | 101.6*50.8*29 | -- | -- | | |

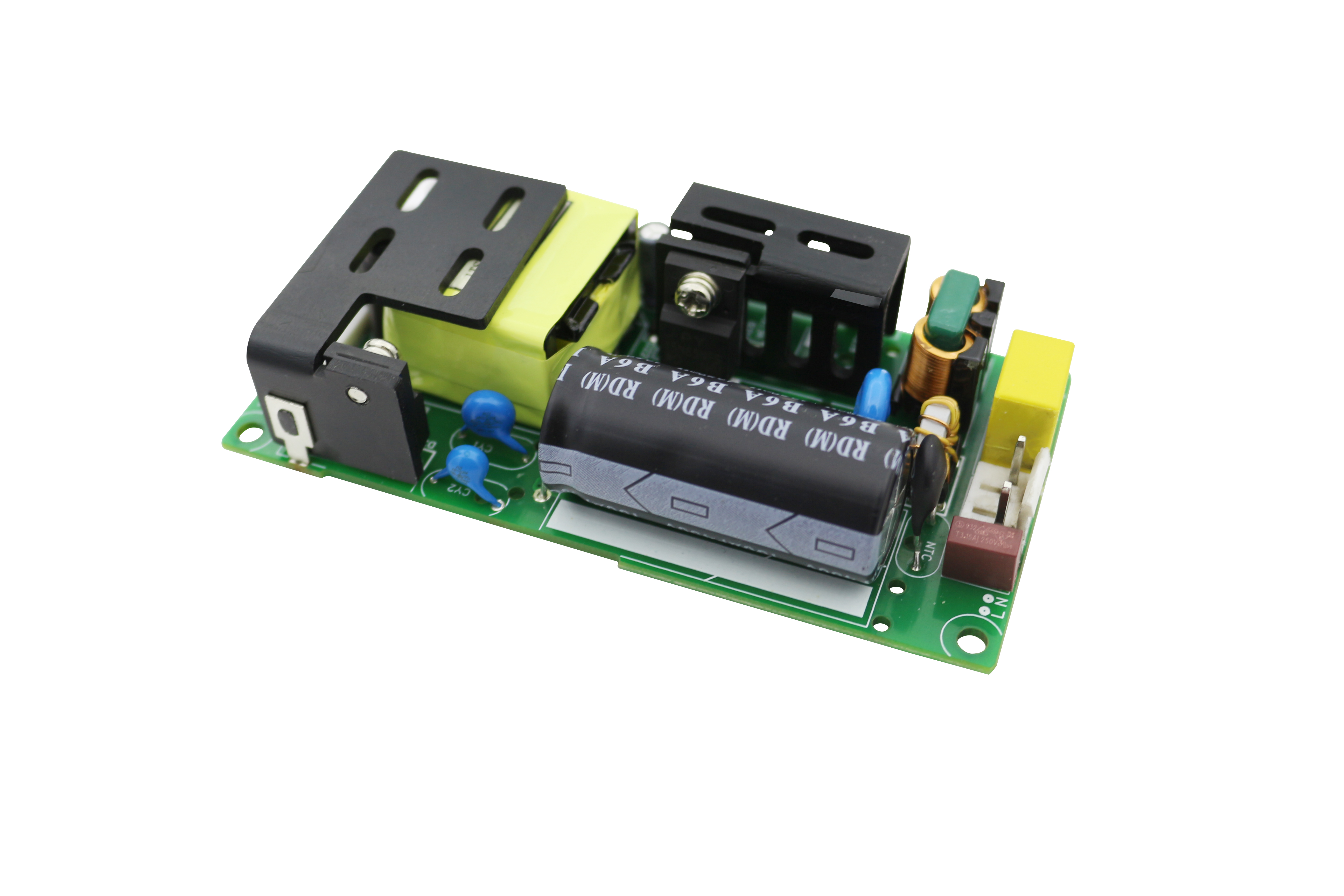

SF100-SXXR3 SF100-SXXR3 | 100 | 90-264 | 100-370 | 12-24 | 展开 | 展开 | 3000 | 101.6*50.8*24.5 | -- -- | -- | -- | -- |
| SF100-S24R3 | 100 | 90-264 | 100-370 | 24 | 4.2 | 91 | 3000 | 101.6*50.8*29 | -- | | | |
| SF100-S15R3 | 100 | 90-264 | 100-370 | 15 | 6.6 | 92 | 3000 | 101.6*50.8*29 | -- | | | |
| SF100-S12R3 | 100 | 90-264 | 100-370 | 12 | 8.3 | 91 | 3000 | 101.6*50.8*29 | -- | | | |

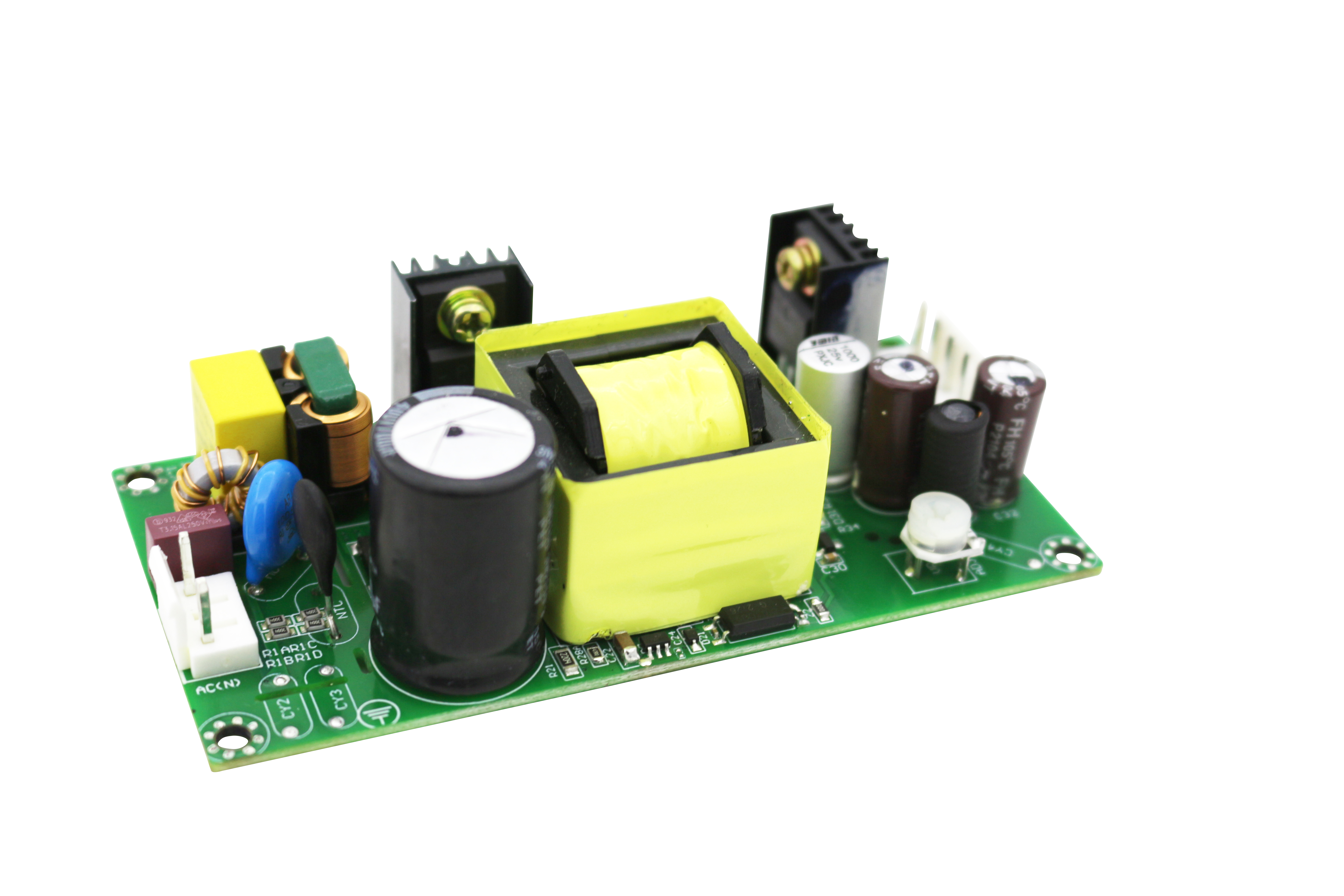

SF65-SXXBVR SF65-SXXBVR | 65 | 90-264 | 100-370 | 5-48 | 展开 | 展开 | 3000 | 101.6*50.8*29 | -- -- | -- | -- | -- |
| SF65-S48BVR | 65 | 90-264 | 100-370 | 48 | 1.35 | 91 | 3000 | 101.6*50.8*29 | -- | | | |
| SF65-S24BVR | 65 | 90-264 | 100-370 | 24 | 2.71 | 91 | 3000 | 101.6*50.8*29 | -- | | | |
| SF65-S15BVR | 65 | 90-264 | 100-370 | 15 | 4.34 | 92 | 3000 | 101.6*50.8*29 | -- | | | |
| SF65-S12BVR | 65 | 90-264 | 100-370 | 12 | 5.42 | 90 | 3000 | 101.6*50.8*29 | -- | | | |
| SF65-S05BVR | 65 | 90-264 | 100-370 | 5 | 10 | 86 | 3000 | 101.6*50.8*29 | -- | | | |

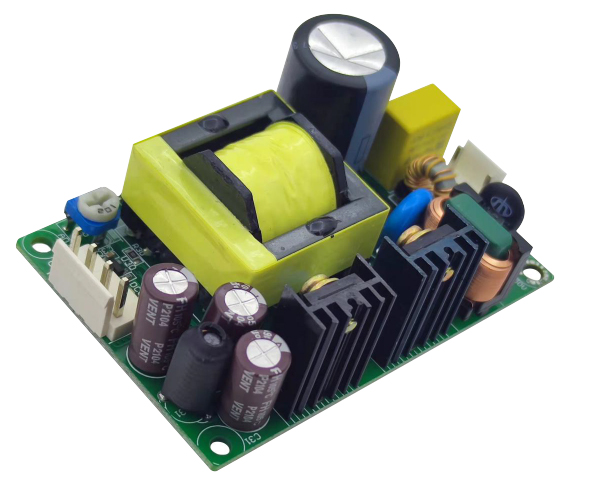

SF65-SXXVR SF65-SXXVR | 65 | 90-264 | 100-370 | 5-48 | 展开 | 展开 | 3000 | 76.2*50.8*30 | -- -- | -- | -- | -- |
| SF65-S48VR | 65 | 90-264 | 100-370 | 48 | 1.35 | 91 | 3000 | 76.2*50.8*28 | -- | | | |
| SF65-S24VR | 65 | 90-264 | 100-370 | 24 | 2.71 | 91 | 3000 | 76.2*50.8*28 | -- | | | |
| SF65-S15VR | 65 | 90-264 | 100-370 | 15 | 4.34 | 92 | 3000 | 76.2*50.8*28 | -- | | | |
| SF65-S12VR | 65 | 90-264 | 100-370 | 12 | 5.42 | 90 | 3000 | 76.2*50.8*28 | -- | | | |
| SF65-S05VR | 65 | 90-264 | 100-370 | 5 | 10 | 86 | 3000 | 76.2*50.8*28 | -- | | | |

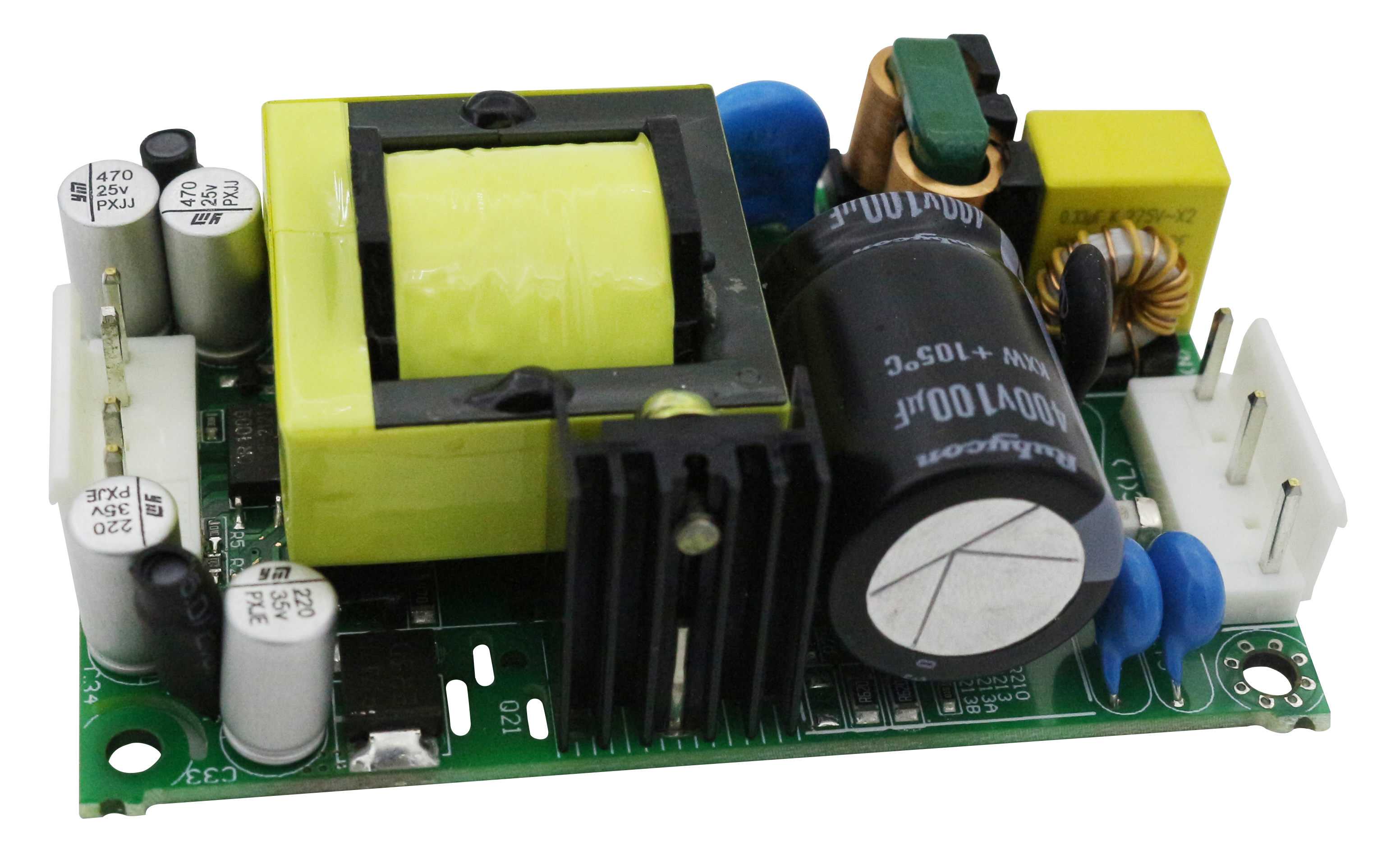

SF60-DXX SF60-DXX | 60 | 85-264 | 100-370 | 5-±24 | 展开 | 展开 | 3000 | 76.2*50.8*28 | -- -- | -- | -- -- | -- |
| SF60-D17 | 60 | 85-264 | 100-370 | ±17 | 3.52 | 92 | 3000 | 76.2*50.8*28 | -- | -- | | |
| SF60-D12 | 60 | 85-264 | 100-370 | ±12 | 5 | 84 | 3000 | 76.2*50.8*28 | -- | -- | | |
| SF60-D05 | 60 | 85-264 | 100-370 | ±5 | 12 | 86 | 3000 | 76.2*50.8*28 | -- | -- | | |
| SF50-CB | 50 | 85-264 | 100-370 | 5-±12 | 展开 | 展开 | 3000 | 127*77*30 | -- -- | -- | -- -- | -- |
| SF50-CB | 50 | 85-264 | 100-370 | 5.2，15，-15 | 3.2.0.5 | 79 | 3000 | 127*77*30 | -- | -- | | |
| SF50-CA | 50 | 85-264 | 100-370 | 5-±12 | 展开 | 展开 | 3000 | 127*77*30 | -- -- | -- | -- -- | -- |
| SF50-CA | 50 | 85-264 | 100-370 | 5.2，15，-15 | 3.2.0.5 | 78 | 3000 | 127*77*30 | -- | -- | | |

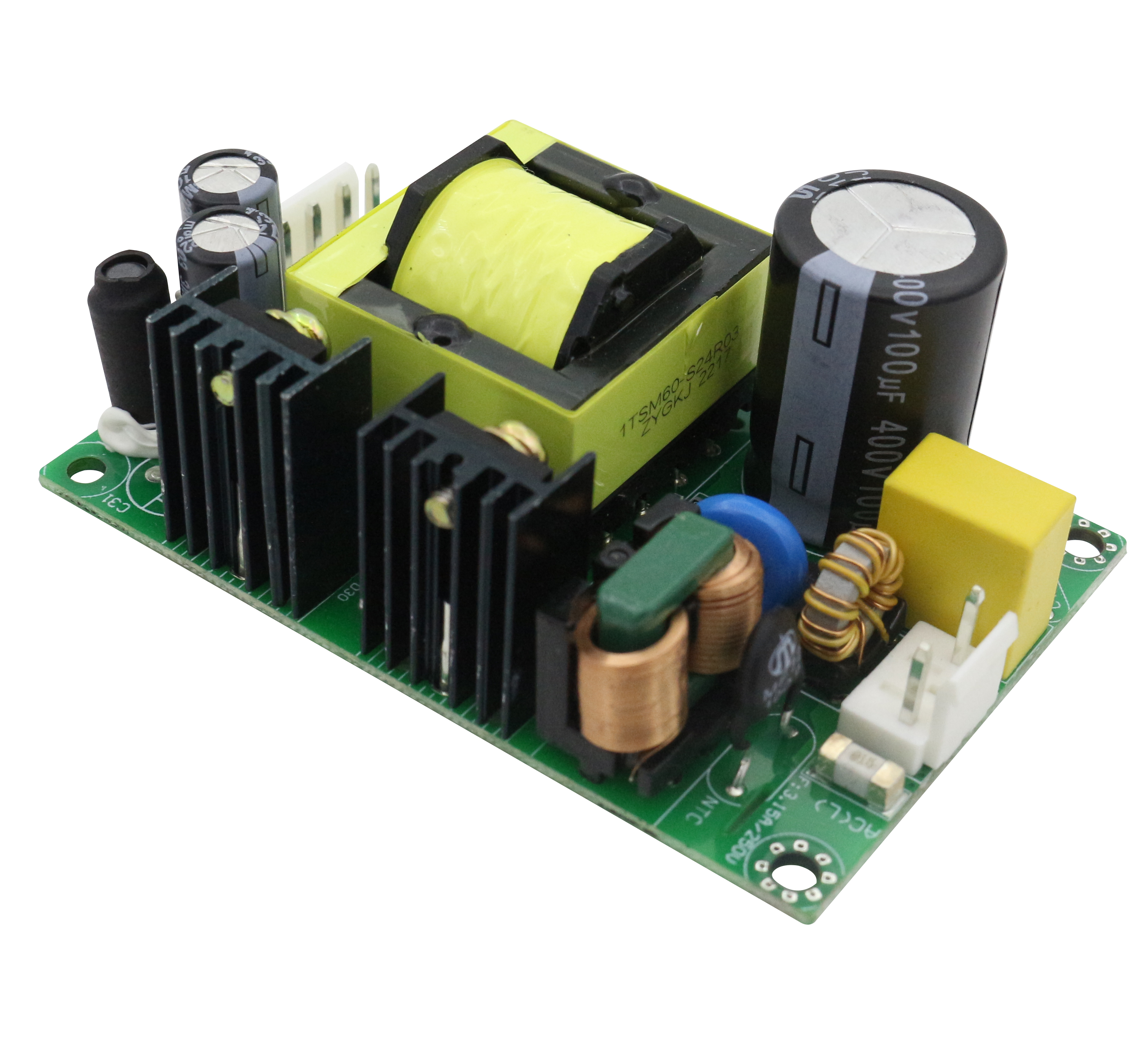

SF45-SXXVR SF45-SXXVR | 45 | 85-264 | 100-370 | 5-48 | 展开 | 展开 | 3000 | 76.2*50.8*30 | -- -- | -- | -- | -- |
| SF45-S48VR | 45 | 85-264 | 100-370 | 48 | 0.93 | 91 | 3000 | 76.2*50.8*30 | -- | | | |
| SF45-S24VR | 45 | 85-264 | 100-370 | 24 | 1.87 | 91 | 3000 | 76.2*50.8*30 | -- | | | |
| SF45-S15VR | 45 | 85-264 | 100-370 | 15 | 3 | 90 | 3000 | 76.2*50.8*30 | -- | | | |
| SF45-S12VR | 45 | 85-264 | 100-370 | 12 | 3.75 | 89 | 3000 | 76.2*50.8*30 | -- | | | |
| SF45-S05VR | 45 | 85-264 | 100-370 | 5 | 5 | 85 | 3000 | 76.2*50.8*30 | -- | | | |
| SF35-SXXVR | 35 | 85-264 | 100-370 | 5-48 | 展开 | 展开 | 3000 | 76.2*50.8*30 | -- -- | -- | -- | -- |
| SF35-S48VR | 35 | 85-264 | 100-370 | 48 | 0.73 | 91 | 3000 | 76.2*50.8*30 | -- | | | |
| SF35-S24VR | 35 | 85-264 | 100-370 | 24 | 1.45 | 91 | 3000 | 76.2*50.8*30 | -- | | | |
| SF35-S15VR | 35 | 85-264 | 100-370 | 15 | 2.33 | 90 | 3000 | 76.2*50.8*30 | -- | | | |
| SF35-S12VR | 35 | 85-264 | 100-370 | 12 | 2.91 | 89 | 3000 | 76.2*50.8*30 | -- | | | |
| SF35-S05VR | 35 | 85-264 | 100-370 | 5 | 7 | 85 | 3000 | 76.2*50.8*30 | -- | | | |
| SF30-TA | 30 | 85-264 | 100-370 | 5-±12 | 展开 | 展开 | 3000 | 97*50*25 | -- -- | -- | -- -- | -- |
| SF30-TA | 30 | 85-264 | 100-370 | 5，12，-12 | 3,1.2,0.15 | 84 | 3000 | 97*50*25 | -- | -- | | |

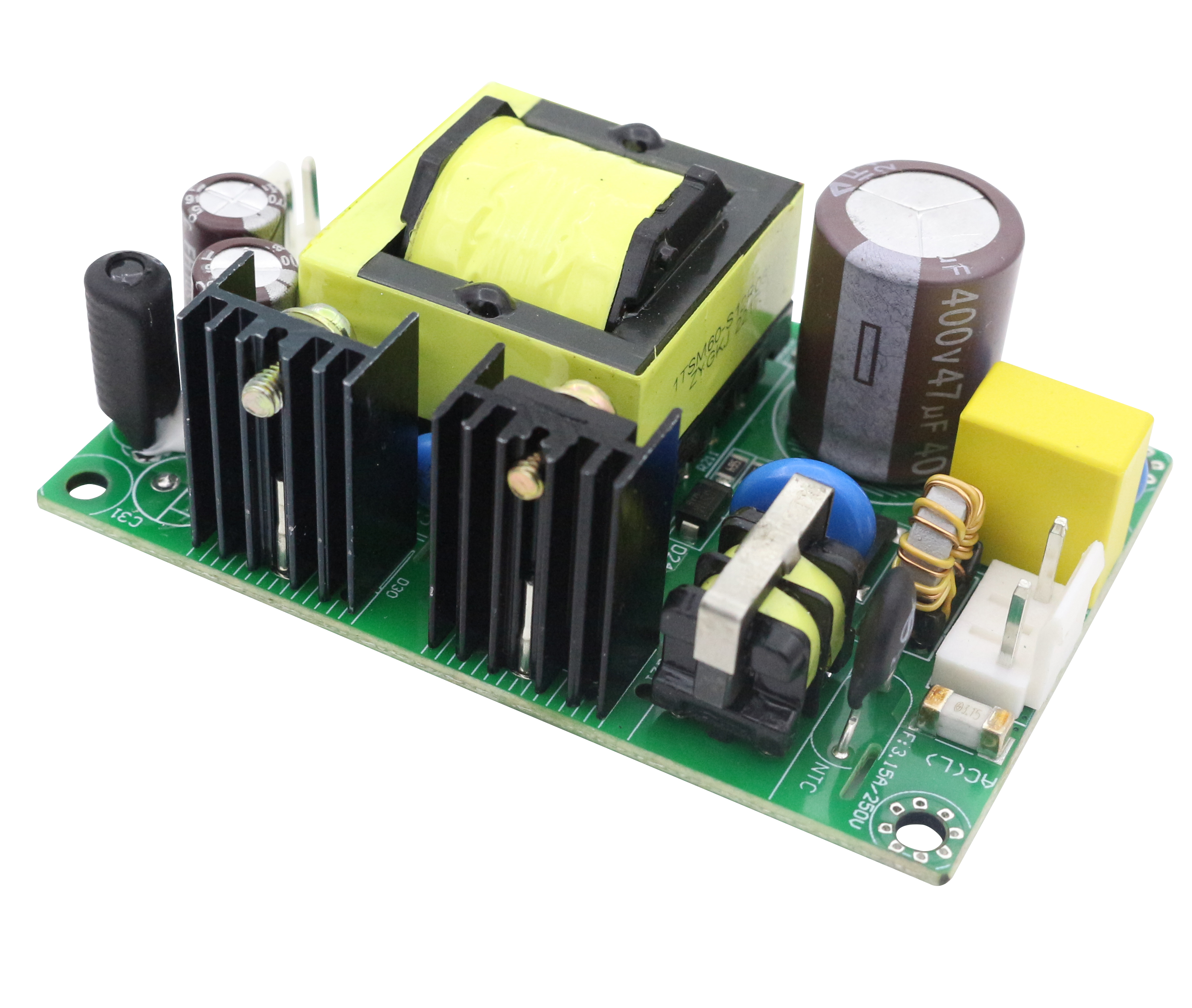

SF25-SXXVR SF25-SXXVR | 25 | 85-264 | 100-370 | 5-48 | 展开 | 展开 | 3000 | 76.2*50.8*30 | -- -- | -- | -- | -- |
| SF25-S48VR | 25 | 85-264 | 100-370 | 48 | 91 | 91 | 3000 | 76.2*50.8*30 | -- | | | |
| SF25-S24VR | 25 | 85-264 | 100-370 | 24 | 91 | 91 | 3000 | 76.2*50.8*30 | -- | | | |
| SF25-S15VR | 25 | 85-264 | 100-370 | 15 | 90 | 90 | 3000 | 76.2*50.8*30 | -- | | | |
| SF25-S12VR | 25 | 85-264 | 100-370 | 12 | 89 | 89 | 3000 | 76.2*50.8*30 | -- | | | |
| SF25-S05VR | 25 | 85-264 | 100-370 | 5 | 85 | 85 | 3000 | 76.2*50.8*30 | -- | | | |
| SF15-SXXVR | 15 | 85-264 | 100-370 | 3.3-24 | 展开 | 展开 | 3000 | 63.5*45.7*15 | -- -- | -- | -- | -- |
| SF15-S24VR | 15 | 85-264 | 100-370 | 24 | 0.62 | 88 | 3000 | 63.5*45.7*15 | -- | | | |
| SF15-S15VR | 15 | 85-264 | 100-370 | 15 | 1 | 87 | 3000 | 63.5*45.7*15 | -- | | | |
| SF15-S12VR | 15 | 85-264 | 100-370 | 12 | 1.25 | 7 | 3000 | 63.5*45.7*15 | -- | | | |
| SF15-S05VR | 15 | 85-264 | 100-370 | 5 | 3 | 85 | 3000 | 63.5*45.7*15 | -- | | | |
| SF15-S03VR | 15 | 85-264 | 100-370 | 3.3 | 3 | 83 | 3000 | 63.5*45.7*15 | -- | | |
