SP标准化插针系列是中逸光为客户提供的小体积AC/DC电源模块。该系列电源具有全球输入电压范围、交直流两用、低功耗、高效率、高可靠性、安全隔离等优点。产品安全可靠，抗浪涌性能优越，EMC 及安全规格满足IEC/EN61000-4、CISPR22/EN55022、UL62368 和EN62368等标准。
展开查看更多
模块型电源
产品中心
标准化SP单路系列
点击展开条件搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效率% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |

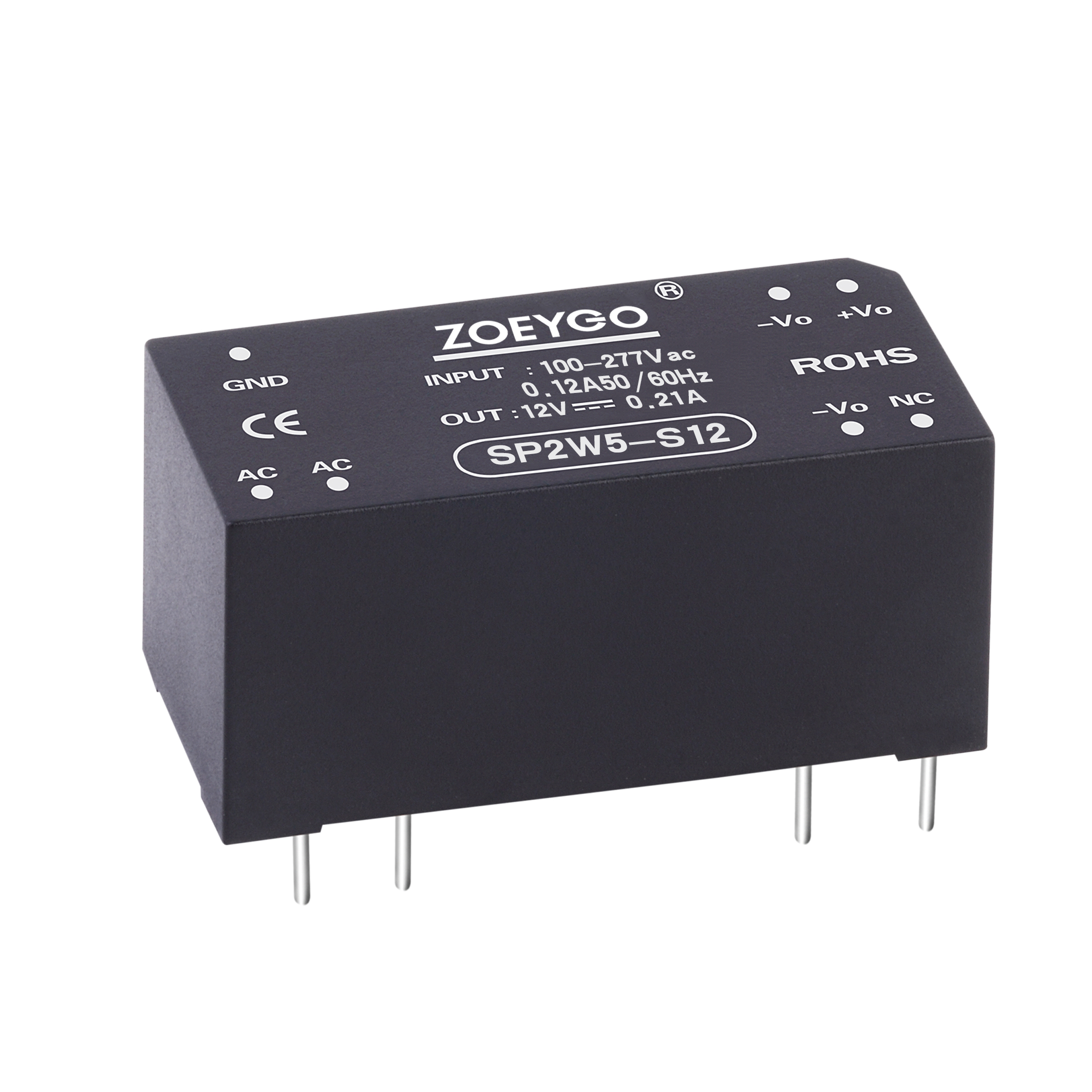

SP2W5-SXX SP2W5-SXX | 2.5 | 85-305 | 100-430 | 3.3-24 | 0.11-0.5 | 65-75 | 1500 | 38.0*19.0*17.0 | -- -- | -- |  -- |  -- |
| SP2W5-S03 | 1.65 | 85-305 | 100-430 | 3.3 | 0.5 | 65 | 1500 | 38.0*19.0*17.0 | -- | | | |
| SP2W5-S05 | 2.5 | 85-305 | 100-430 | 5 | 0.5 | 69 | 1500 | 38.0*19.0*17.0 | -- | | | |
| SP2W5-S12 | 2.5 | 85-305 | 100-430 | 12 | 0.21 | 72 | 1500 | 38.0*19.0*17.0 | -- | | | |
| SP2W5-S15 | 2.5 | 85-305 | 100-430 | 15 | 0.16 | 73 | 1500 | 38.0*19.0*17.0 | -- | | | |
| SP2W5-S24 | 2.5 | 85-305 | 100-430 | 24 | 0.11 | 75 | 1500 | 38.0*19.0*17.0 | -- | | | |

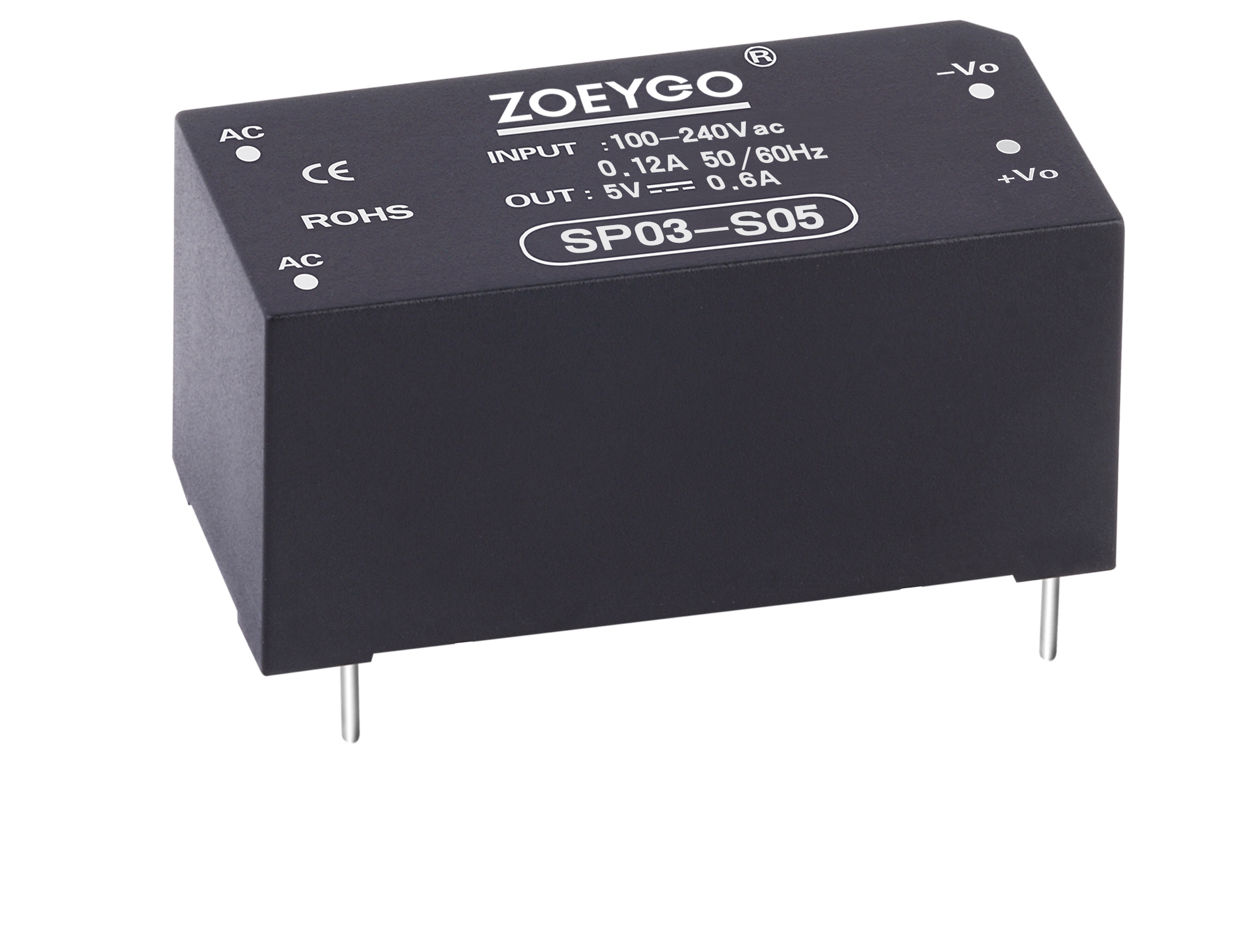

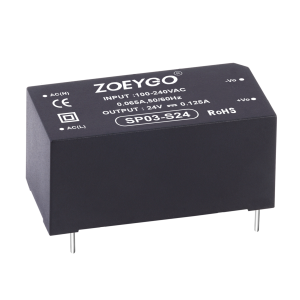

SP03-SXX SP03-SXX | 3 | 85-264 | 100-370 | 5.0-24 | 0.125-0.6 | 66-78 | 3000 | 38.0*19.0*17.0 | -- -- | -- | -- | -- |
| SP03-S05 | 3 | 85-264 | 100-370 | 5 | 0.6 | 66 | 3000 | 38.0*19.0*17.0 | -- | | | |
| SP03-S09 | 3 | 85-264 | 100-370 | 9 | 0.33 | 73 | 3000 | 38.0*19.0*17.0 | -- | | | |
| SP03-S12 | 3 | 85-264 | 100-370 | 12 | 0.25 | 76 | 3000 | 38.0*19.0*17.0 | -- | | | |
| SP03-S15 | 3 | 85-264 | 100-370 | 15 | 0.2 | 77 | 3000 | 38.0*19.0*17.0 | -- | | | |
| SP03-S24 | 3 | 85-264 | 100-370 | 24 | 0.125 | 78 | 3000 | 38.0*19.0*17.0 | -- | | | |
SP05-SXX SP05-SXX | 5 | 85-305 | 100-430 | 3.3-24 | 0.21-1 | 64-78 | 3000 | 48.5*36.0*20.5 | -- -- | -- | -- | -- |
| SP05-S03 | 3.3 | 85-305 | 100-430 | 3.3 | 1 | 64 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP05-S05 | 5 | 85-305 | 100-430 | 5 | 1 | 70 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP05-S09 | 5 | 85-305 | 100-430 | 9 | 0.55 | 73 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP05-S12 | 5 | 85-305 | 100-430 | 12 | 0.42 | 75 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP05-S15 | 5 | 85-305 | 100-430 | 15 | 0.33 | 76 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP05-S24 | 5 | 85-305 | 100-430 | 24 | 0.21 | 78 | 3000 | 48.5*36.0*20.5 | -- | | | |

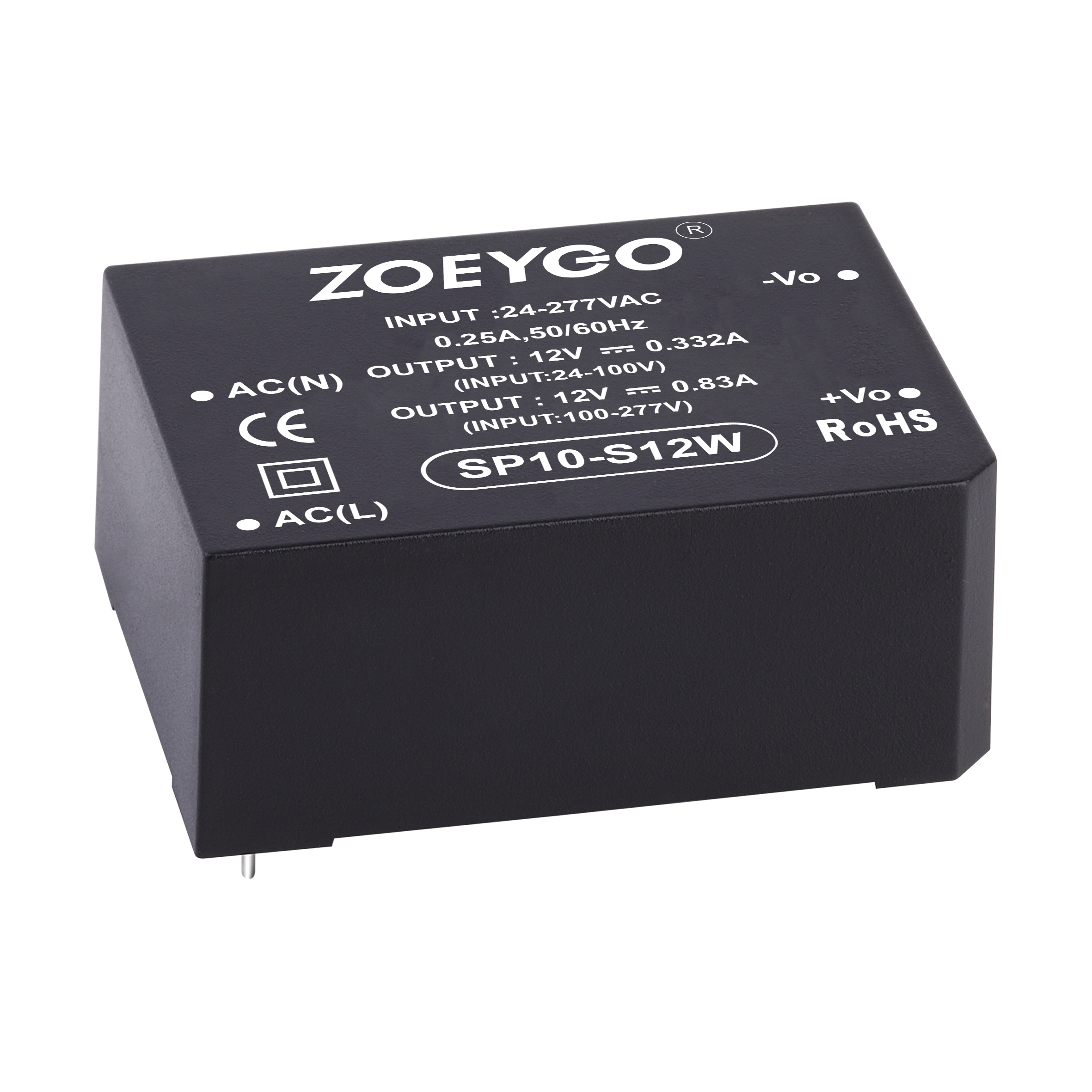

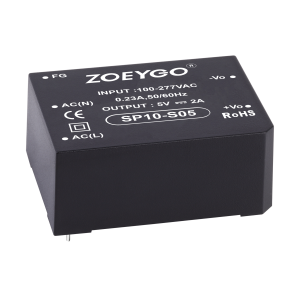

SP10-SXX SP10-SXX | 10 | 85-305 | 100-430 | 3.3-24 | 0.42-2 | 78-84 | 3000 | 55.0*45.0*21.0 | -- -- | -- | -- | -- |
| SP10-S03 | 6.6 | 85-305 | 100-430 | 3.3 | 2 | 78 | 3000 | 55.0*45.0*21.0 | -- | | | |
| SP10-S05 | 10 | 85-305 | 100-430 | 5 | 2 | 78 | 3000 | 55.0*45.0*21.0 | -- | | | |
| SP10-S09 | 10 | 85-305 | 100-430 | 9 | 1.11 | 80 | 3000 | 55.0*45.0*21.0 | -- | | | |
| SP10-S12 | 10 | 85-305 | 100-430 | 12 | 0.83 | 82 | 3000 | 55.0*45.0*21.0 | -- | | | |
| SP10-S15 | 10 | 85-305 | 100-430 | 15 | 0.67 | 82 | 3000 | 55.0*45.0*21.0 | -- | | | |
| SP10-S24 | 10 | 85-305 | 100-430 | 24 | 0.42 | 84 | 3000 | 55.0*45.0*21.0 | -- | | | |
SP15-SXX SP15-SXX | 15 | 85-264 | 100-370 | 3.3-32 | 0.45-3 | 72-86 | 3000 | 62.0*45.0*23.0 | -- -- | -- | -- | -- |
| SP15-S03 | 9.9 | 85-264 | 100-370 | 3.3 | 3 | 72 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-S05 | 15 | 85-264 | 100-370 | 5 | 3 | 78 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-S09 | 15 | 85-264 | 100-370 | 9 | 1.66 | 82 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-S12 | 15 | 85-264 | 100-370 | 12 | 1.25 | 84 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-S15 | 15 | 85-264 | 100-370 | 15 | 1 | 84 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-S24 | 15 | 85-264 | 100-370 | 24 | 0.625 | 86 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-S32 | 15 | 85-264 | 100-370 | 32 | 0.45 | 86 | 3000 | 62.0*45.0*23.0 | -- | | | |

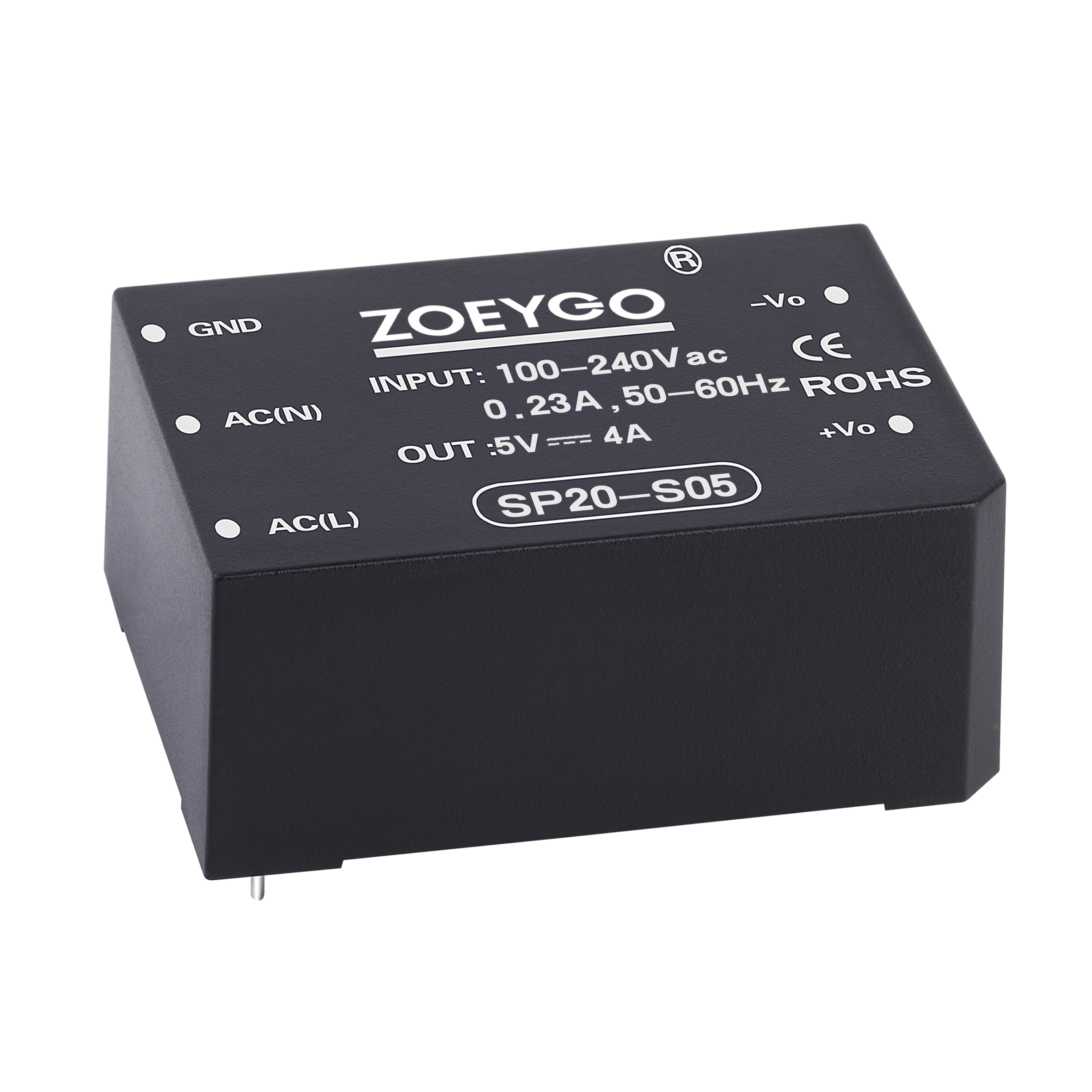

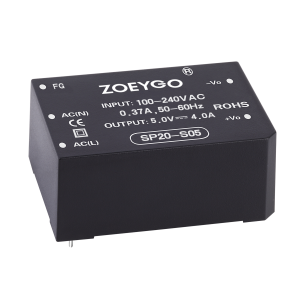

SP20-SXX SP20-SXX | 20 | 85-264 | 100-370 | 3.3-24 | 0.83-4 | 77-87 | 3000 | 70.0*48.0*23.5 | -- -- | -- | -- | -- |
| SP20-S03 | 13.2 | 85-264 | 100-370 | 3.3 | 4 | 77 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP20-S05 | 20 | 85-264 | 100-370 | 5 | 4 | 77 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP20-S12 | 20 | 85-264 | 100-370 | 12 | 1.66 | 87 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP20-S15 | 20 | 85-264 | 100-370 | 15 | 1.33 | 87 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP20-S24 | 20 | 85-264 | 100-370 | 24 | 0.83 | 87 | 3000 | 70.0*48.0*23.5 | -- | | | |
SP25-SXX SP25-SXX | 25 | 85-264 | 100-370 | 5.0-48 | 0.52-5 | 77-87 | 3000 | 70.0*48.0*23.5 | -- -- | -- | -- | -- |
| SP25-S05 | 25 | 85-264 | 100-370 | 5 | 5 | 77 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP25-S12 | 25 | 85-264 | 100-370 | 12 | 2.1 | 87 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP25-S15 | 25 | 85-264 | 100-370 | 15 | 1.66 | 87 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP25-S24 | 25 | 85-264 | 100-370 | 24 | 1.1 | 87 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP25-S48 | 25 | 85-264 | 100-370 | 48 | 0.52 | 87 | 3000 | 70.0*48.0*23.5 | -- | | | |

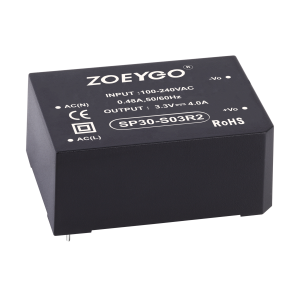

SP30-SXXR2 SP30-SXXR2 | 30 | 85-264 | 100-370 | 3.3-24 | 1.25-4 | 82-88 | 3000 | 62.0*45.0*23.0 | -- -- | -- | -- | -- |
| SP30-S03R2 | 13.2 | 85-264 | 100-370 | 3.3 | 4 | 82 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP30-S05R2 | 20 | 85-264 | 100-370 | 5 | 4 | 85 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP30-S09R2 | 30 | 85-264 | 100-370 | 9 | 3.3 | 86 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP30-S12R2 | 30 | 85-264 | 100-370 | 12 | 2.5 | 88 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP30-S15R2 | 30 | 85-264 | 100-370 | 15 | 2 | 88 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP30-S24R2 | 30 | 85-264 | 100-370 | 24 | 1.25 | 88 | 3000 | 62.0*45.0*23.0 | -- | | | |

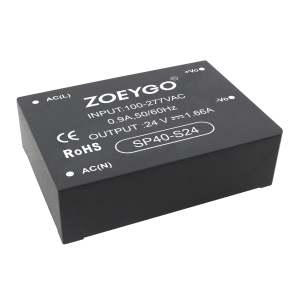

SP40-SXX SP40-SXX | 40 | 85-305 | 100-430 | 5.0-24 | 1.66-8 | 86-88 | 3000 | 89.0*63.0*25.0 | -- -- | -- | -- | -- |
| SP40-S05 | 40 | 85-305 | 100-430 | 5 | 8 | 86 | 3000 | 89.0*63.0*25.0 | -- | | | |
| SP40-S12 | 40 | 85-305 | 100-430 | 12 | 3.33 | 87 | 3000 | 89.0*63.0*25.0 | -- | | | |
| SP40-S15 | 40 | 85-305 | 100-430 | 15 | 2.66 | 87 | 3000 | 89.0*63.0*25.0 | -- | | | |
| SP40-S24 | 40 | 85-305 | 100-430 | 24 | 1.66 | 88 | 3000 | 89.0*63.0*25.0 | -- | | | |

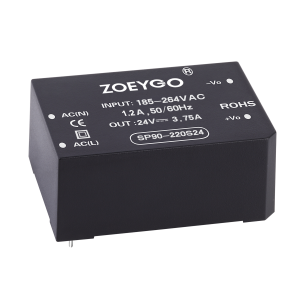

SP90-220SXX SP90-220SXX | 90 | 185-264 | 261-370 | 5.0-48 | 1.87-9 | 86-93 | 3000 | 70.0*48.0*23.5 | -- -- | -- | -- | -- |
| SP90-220S05 | 45 | 185-264 | 261-370 | 5 | 9 | 86 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP90-220S09 | 60 | 185-264 | 261-370 | 9 | 6.66 | 90 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP90-220S12 | 80 | 185-264 | 261-370 | 12 | 6.66 | 90 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP90-220S15 | 90 | 185-264 | 261-370 | 15 | 6 | 93 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP90-220S24 | 90 | 185-264 | 261-370 | 24 | 3.75 | 92 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP90-220S48 | 90 | 185-264 | 261-370 | 48 | 1.87 | 92 | 3000 | 70.0*48.0*23.5 | -- | | | |

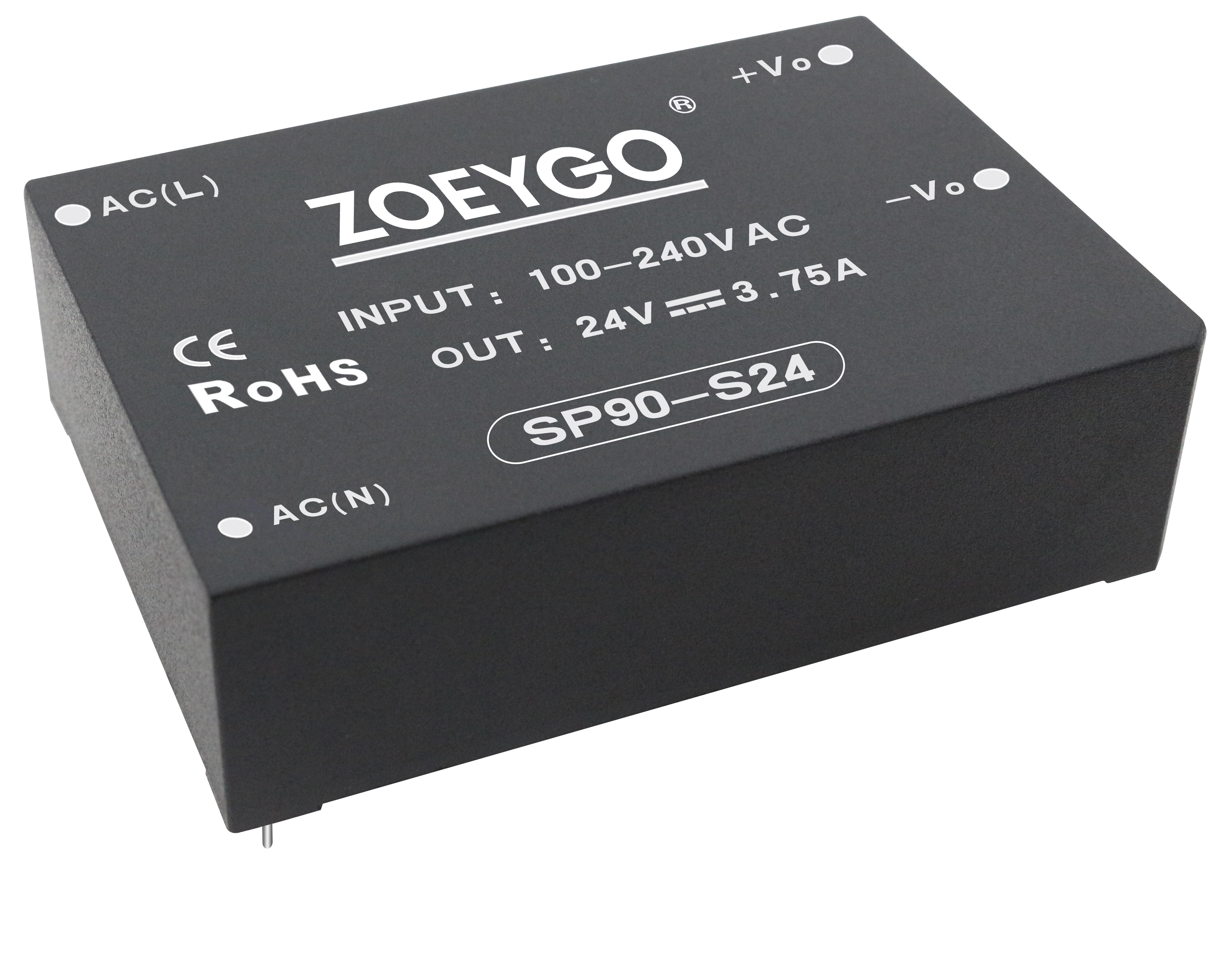

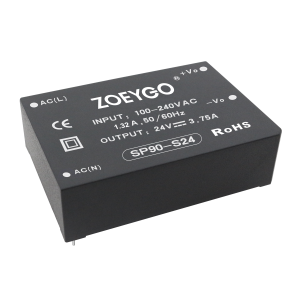

SP90-SXX SP90-SXX | 90 | 90-264 | 100-370 | 5.0-24 | 3.75-12 | 86-90 | 3000 | 89.0*63.0*25.0 | -- -- | -- | -- | -- |
| SP90-S05 | 60 | 90-264 | 100-370 | 5 | 12 | 86 | 3000 | 89.0*63.0*25.0 | -- | | | |
| SP90-S12 | 80 | 90-264 | 100-370 | 12 | 6.66 | 89 | 3000 | 89.0*63.0*25.0 | -- | | | |
| SP90-S15 | 90 | 90-264 | 100-370 | 15 | 6 | 90 | 3000 | 89.0*63.0*25.0 | -- | | | |
| SP90-S24 | 90 | 90-264 | 100-370 | 24 | 3.75 | 90 | 3000 | 89.0*63.0*25.0 | -- | | | |

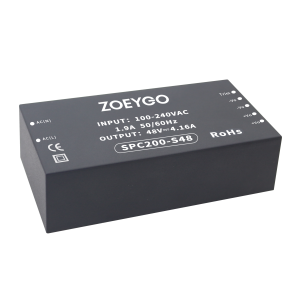

SPC200-SXX SPC200-SXX | 200 | 90-264 | 100-370 | 12.0-48 | 4.16-16.66 | 93-94 | 3000 | 109.0*58.5*30.0 | -- -- | -- | -- | -- |
| SPC200-S12 | 200 | 90-264 | 100-370 | 12 | 16.66 | 93 | 3000 | 109.0*58.5*30.0 | -- | | | |
| SPC200-S15 | 200 | 90-264 | 100-370 | 15 | 13.33 | 93 | 3000 | 109.0*58.5*30.0 | -- | | | |
| SPC200-S24 | 200 | 90-264 | 100-370 | 24 | 8.33 | 94 | 3000 | 109.0*58.5*30.0 | -- | | | |
| SPC200-S27 | 200 | 90-264 | 100-370 | 27 | 7.40 | 94 | 3000 | 109.0*58.5*30.0 | -- | | | |
| SPC200-S36 | 200 | 90-264 | 100-370 | 36 | 5.55 | 94 | 3000 | 109.0*58.5*30.0 | -- | | | |
| SPC200-S48 | 200 | 90-264 | 100-370 | 48 | 4.16 | 94 | 3000 | 109.0*58.5*30.0 | -- | | |
