SPM接线端子系列是中逸光为客户提供的高可靠性AC/DC接线式电源模块。该系列电源具有全球输入电压范围、交直流两用、低功耗、高效率、高可靠性、安全隔离等优点。产品安全可靠，抗浪涌性能优越，EMC 及安全规格满足IEC/EN61000-4、CISPR22/EN55022、UL60950 、EN60950等标准。
展开查看更多
模块型电源
产品中心
接线端子SPM系列
点击展开条件搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效率% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |

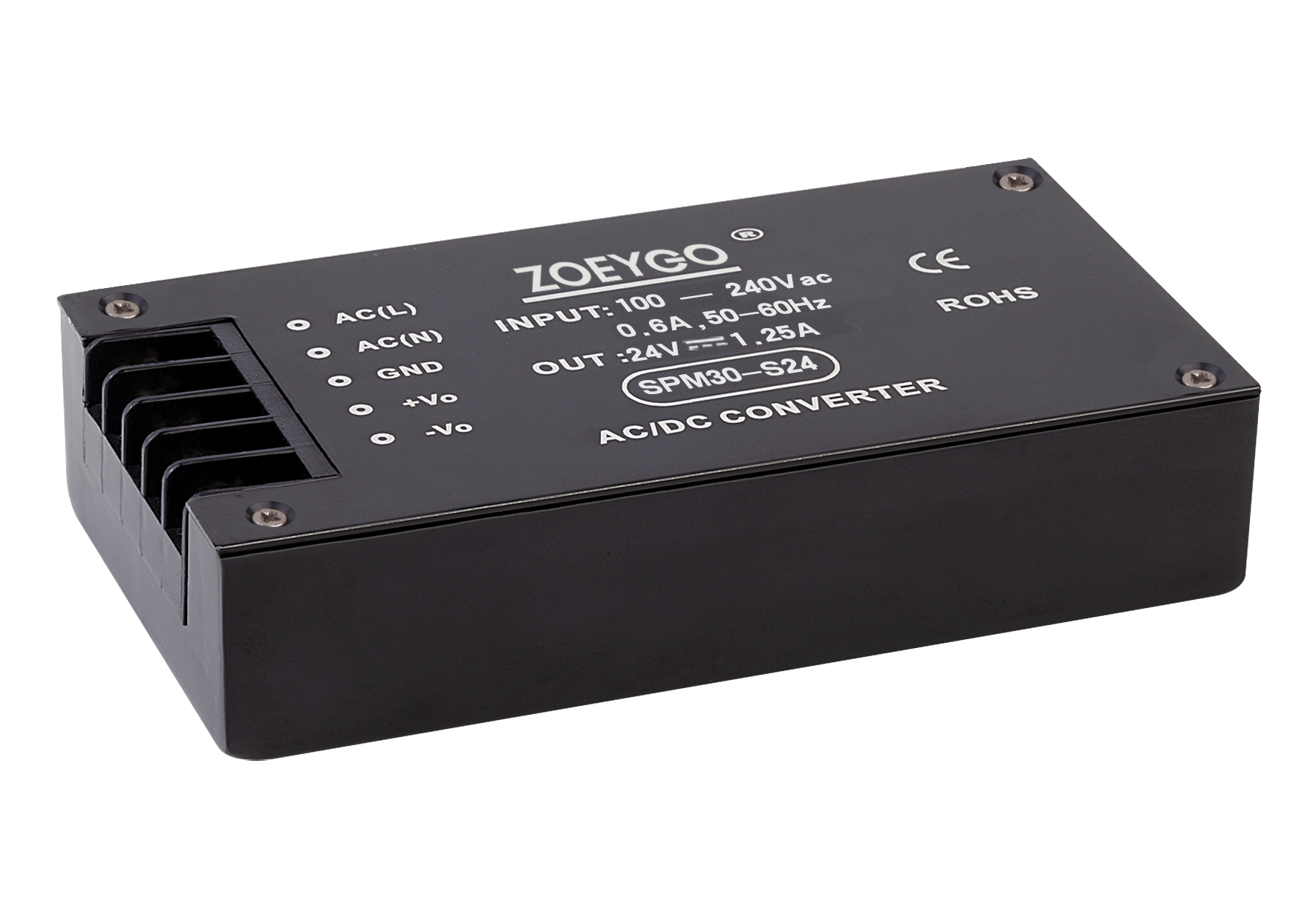

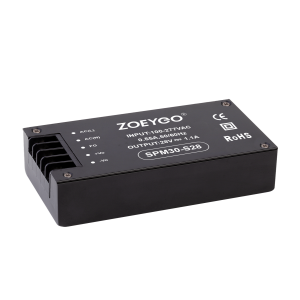

SPM30-SXX SPM30-SXX | 30 | 85-305 | 100-430 | 12-50 | 0.6-2.5 | 82-86 | 2500 | 98.0*52.0*22.0 | -- -- | -- |  -- |  -- |
| SPM30-S12 | 30 | 85-305 | 100-430 | 12 | 2.5 | 82 | 2500 | 98.0*52.0*22.0 | -- | | | |
| SPM30-S24 | 30 | 85-305 | 100-430 | 24 | 1.25 | 85 | 2500 | 98.0*52.0*22.0 | -- | | | |
| SPM30-S28 | 30 | 85-305 | 100-430 | 28 | 1.1 | 85 | 2500 | 98.0*52.0*22.0 | -- | | | |
| SPM30-S48 | 30 | 85-305 | 100-430 | 48 | 0.62 | 86 | 2500 | 98.0*52.0*22.0 | -- | | | |
| SPM30-S50 | 30 | 85-305 | 100-430 | 50 | 0.6 | 86 | 2500 | 98.0*52.0*22.0 | -- | | | |

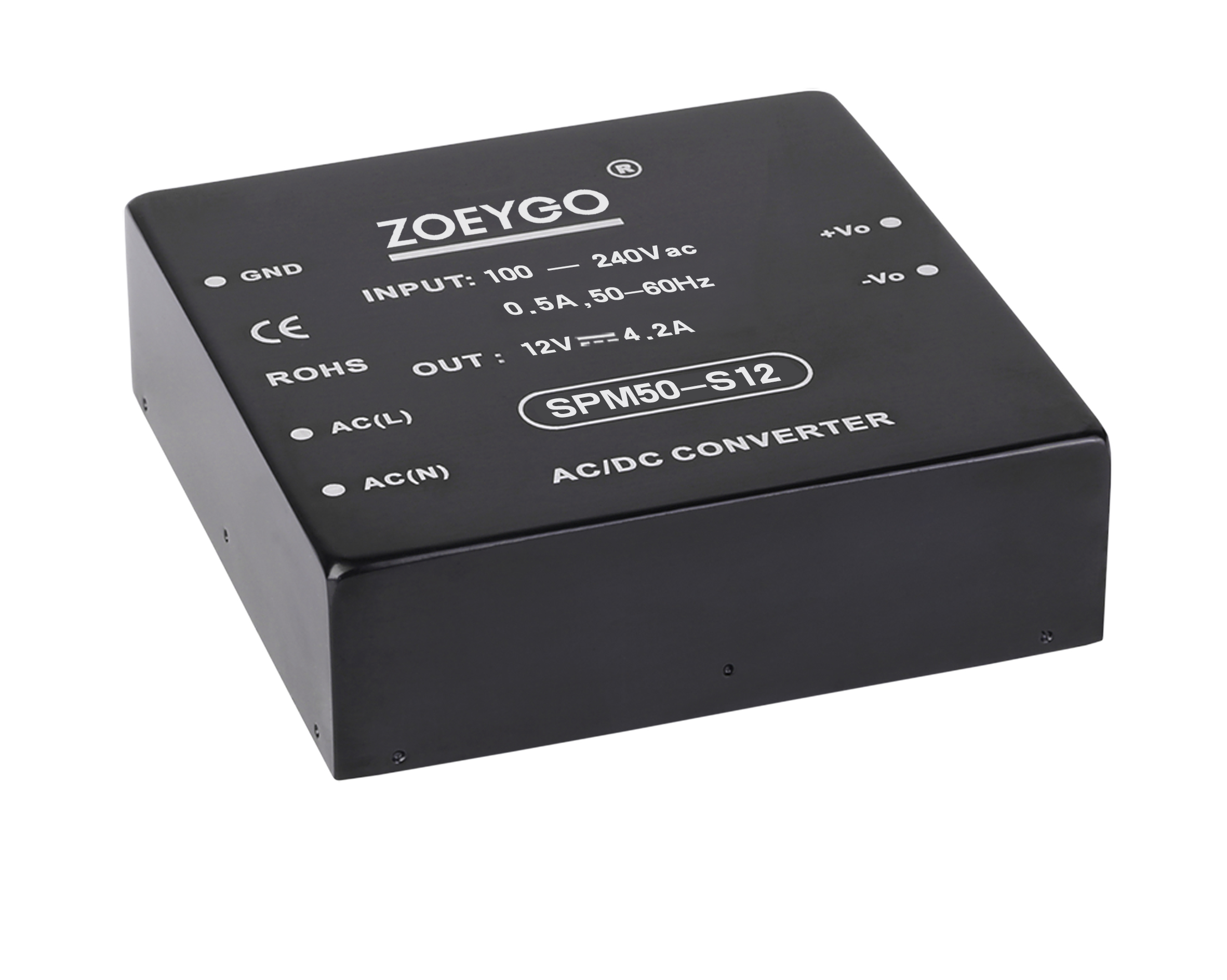

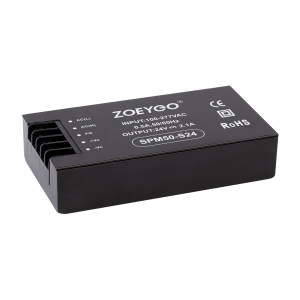

SPM50-SXX SPM50-SXX | 50 | 85-305 | 100-430 | 12-50 | 1.0-4 | 82-86 | 2500 | 98.0*52.0*22.0 | -- -- | -- | -- | -- |
| SPM50-S12 | 48 | 85-305 | 100-430 | 12 | 4 | 82 | 2500 | 98.0*52.0*22.0 | -- | | | |
| SPM50-S24 | 50 | 85-305 | 100-430 | 24 | 2.1 | 85 | 2500 | 98.0*52.0*22.0 | -- | | | |
| SPM50-S48 | 50 | 85-305 | 100-430 | 48 | 1.05 | 86 | 2500 | 98.0*52.0*22.0 | -- | | | |
| SPM50-S50 | 50 | 85-305 | 100-430 | 50 | 1 | 86 | 2500 | 98.0*52.0*22.0 | -- | | | |
SPM100-SXX SPM100-SXX | 100 | 90-264 | 100-370 | 12-48 | 2.1-8.3 | 85-89 | 3000 | 139.0*88.0*30.0 | -- -- | -- | -- | -- |
| SPM100-S12 | 96 | 90-264 | 100-370 | 12 | 8.3 | 85 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPM100-S15 | 100 | 90-264 | 100-370 | 15 | 6.6 | 86 | 3000 | 139.0*88.0*30.0 | -- | | | |

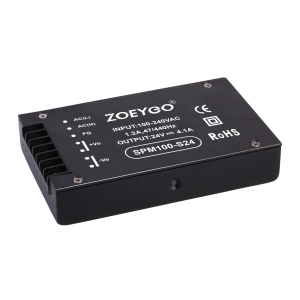

| SPM100-S24 | 100 | 90-264 | 100-370 | 24 | 4.1 | 87 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPM100-S48 | 100 | 90-264 | 100-370 | 48 | 2.1 | 89 | 3000 | 139.0*88.0*30.0 | -- | | | |

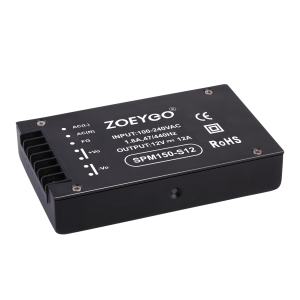

SPM150-SXX SPM150-SXX | 150 | 90-264 | 100-370 | 12-48 | 3.15-12 | 87-89 | 3000 | 139.0*88.0*30.0 | -- -- | -- | -- | -- |
| SPM150-S12 | 144 | 90-264 | 100-370 | 12 | 12 | 87 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPM150-S15 | 150 | 90-264 | 100-370 | 15 | 10 | 87 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPM150-S24 | 150 | 90-264 | 100-370 | 24 | 6.25 | 88 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPM150-S48 | 150 | 90-264 | 100-370 | 48 | 3.15 | 89 | 3000 | 139.0*88.0*30.0 | -- | | | |

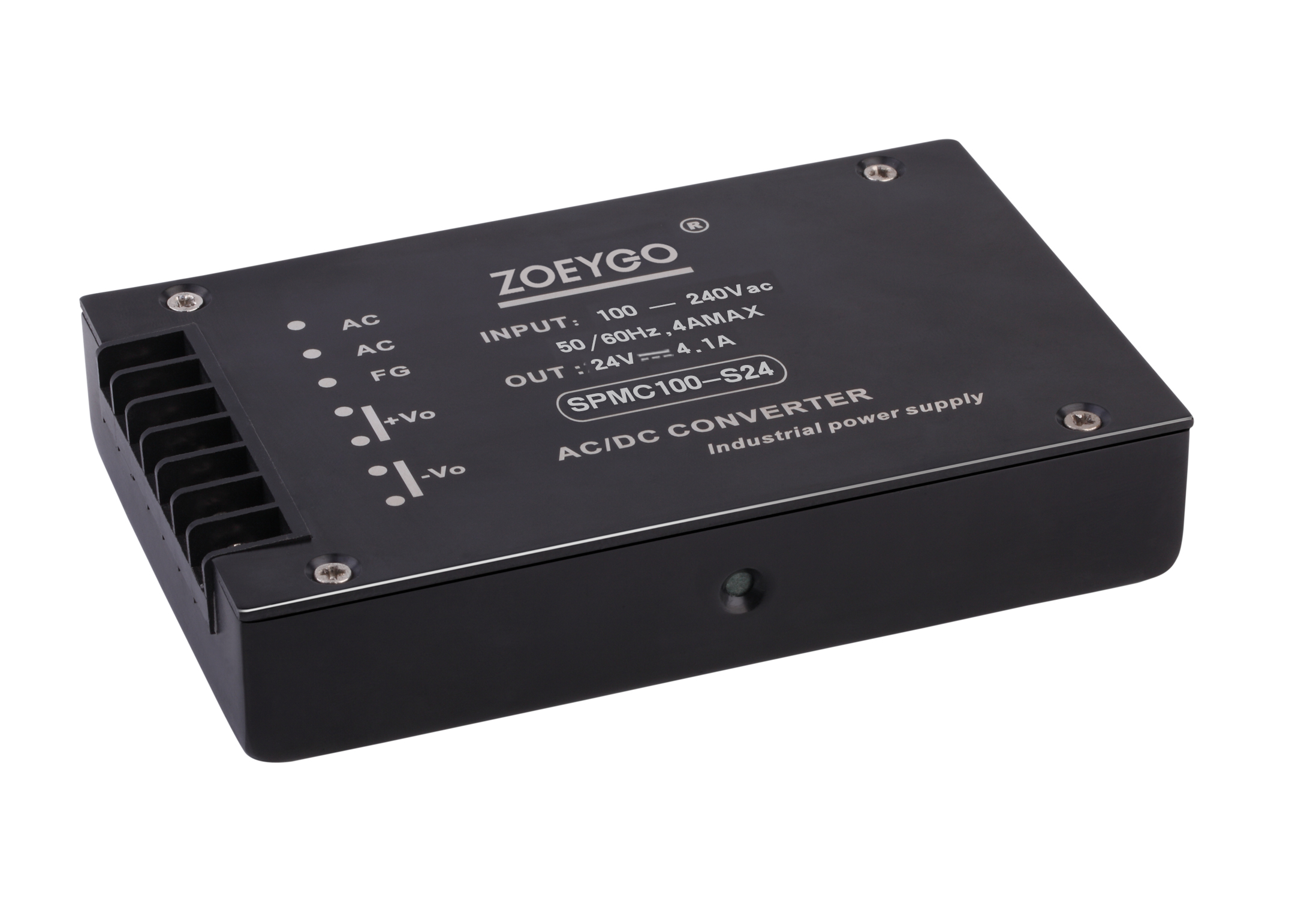

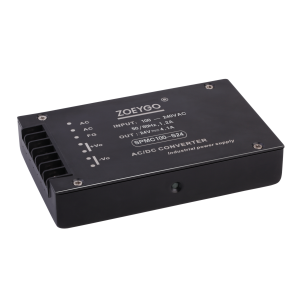

| SPMC100-SXX | 100 | 90-264 | 100-370 | 12-48 | 2.1-8.3 | 85-89 | 3000 | 139.0*88.0*30.0 | -- -- | -- | -- | -- |
| SPMC100-S12 | 96 | 90-264 | 100-370 | 12 | 8.3 | 85 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC100-S15 | 100 | 90-264 | 100-370 | 15 | 6.6 | 86 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC100-S24 | 100 | 90-264 | 100-370 | 24 | 4.1 | 87 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC100-S48 | 100 | 90-264 | 100-370 | 48 | 2.1 | 89 | 3000 | 139.0*88.0*30.0 | -- | | | |

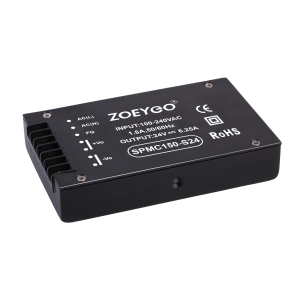

SPMC150-SXX SPMC150-SXX | 150 | 90-264 | 100-370 | 12-48 | 3.15-12 | 87-89 | 3000 | 139.0*88.0*30.0 | -- -- | -- | -- | -- |
| SPMC150-S12 | 144 | 90-264 | 100-370 | 12 | 12 | 87 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC150-S15 | 150 | 90-264 | 100-370 | 15 | 10 | 87 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC150-S24 | 150 | 90-264 | 100-370 | 24 | 6.25 | 88 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC150-S48 | 150 | 90-264 | 100-370 | 48 | 3.15 | 89 | 3000 | 139.0*88.0*30.0 | -- | | | |
SPMC300-SXX SPMC300-SXX | 300 | 90-264 | 100-370 | 15-48 | 6.25-20 | 89-91 | 3000 | 139.0*88.0*30.0 | -- -- | -- | -- | -- |
| SPMC300-S15 | 300 | 90-264 | 100-370 | 15 | 20 | 89 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC300-S24 | 300 | 90-264 | 100-370 | 24 | 12.5 | 89 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC300-S36 | 300 | 90-264 | 100-370 | 36 | 8.3 | 90 | 3000 | 139.0*88.0*30.0 | -- | | | |
| SPMC300-S48 | 300 | 90-264 | 100-370 | 48 | 6.25 | 91 | 3000 | 139.0*88.0*30.0 | -- | | |
