小型化ZPR系列产品是中逸光为客户提供的超小体积模块电源，该系列具有极低的空载损耗，高隔离耐压等特点。产品安全可靠，EMC 性能优异，广泛应用于工业控制、医疗、电子通讯、充电桩、电力仪表等行业中，如应用于电磁兼容比较恶劣的环境时必须参考规格书应用电路。
展开查看更多
模块型电源
产品中心
小型化ZPR系列
点击展开条件搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效率% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |

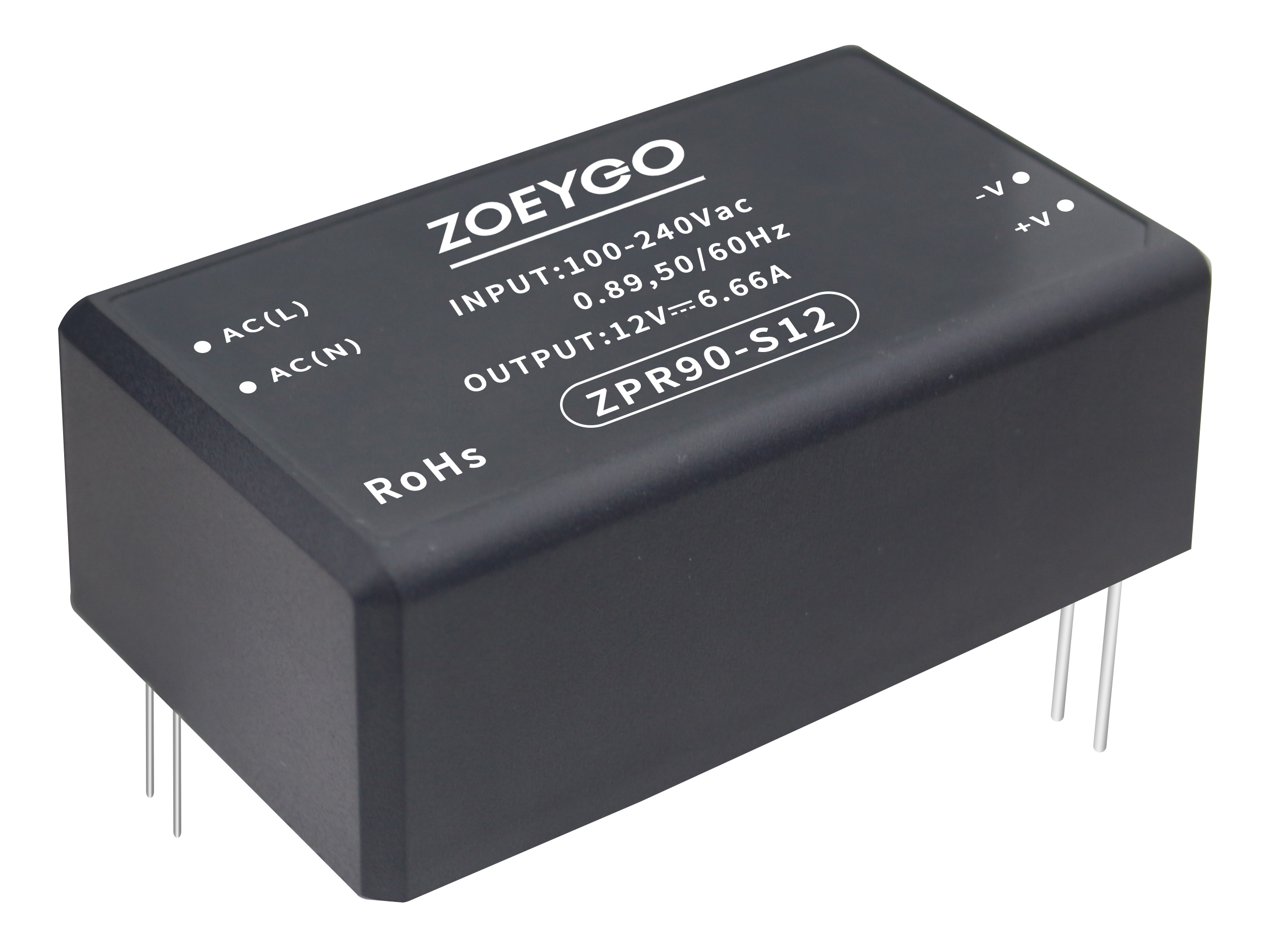

ZPR90-SXX ZPR90-SXX | 90 | 85-305 | 100-400 | 12-48 | 展开 | 展开 | 4000 | 87*52*29.5 | -- -- | -- |  -- |  -- |

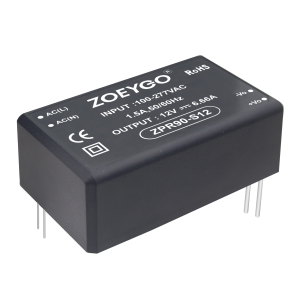

| ZPR90-S12 | 80 | 90-305 | 100-430 | 12 | 6.66 | 87 | 4000 | 87.0*52.0*29.5 | -- | | | |
| ZPR90-S15 | 85 | 90-305 | 100-430 | 15 | 5.66 | 88 | 4000 | 87.0*52.0*29.5 | -- | | | |
| ZPR90-S24 | 90 | 90-305 | 100-430 | 24 | 3.75 | 88 | 4000 | 87.0*52.0*29.5 | -- | | | |
| ZPR90-S48 | 90 | 90-305 | 100-430 | 48 | 1.87 | 91 | 4000 | 87.0*52.0*29.5 | -- | | | |
ZPR60-SXX ZPR60-SXX | 60 | 85-305 | 100-400 | 5-24 | 展开 | 展开 | 4000 | 87*52*29.5 | -- -- | -- | -- | -- |
| ZPR60-S09 | 60 | 85-305 | 100-400 | 9 | 6.66 | 87 | 4000 | 87*52*29.5 | -- | | | |
| ZPR60-S05 | 50 | 90-305 | 100-430 | 5 | 10 | 84 | 4000 | 87.0*52.0*29.5 | -- | | | |
| ZPR60-S12 | 60 | 90-305 | 100-430 | 12 | 5 | 87 | 4000 | 87.0*52.0*29.5 | -- | | | |
| ZPR60-S15 | 60 | 90-305 | 100-430 | 15 | 4 | 87 | 4000 | 87.0*52.0*29.5 | -- | | | |
| ZPR60-S24 | 60 | 90-305 | 100-430 | 24 | 2.5 | 89 | 4000 | 87.0*52.0*29.5 | -- | | | |
| ZPR60-S48 | 60 | 90-305 | 100-430 | 48 | 1.25 | 90 | 4000 | 87.0*52.0*29.5 | -- | | | |

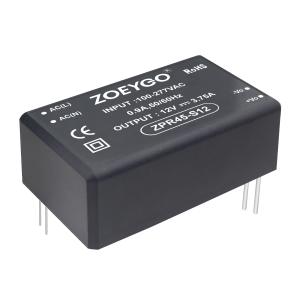

| ZPR45-SXX | 45 | 85-305 | 100-400 | 5-24 | 展开 | 展开 | 4000 | 87*52*29.5 | -- -- | -- | -- | -- |
| ZPR45-S09 | 45 | 85-305 | 100-400 | 9 | 5 | 87 | 4000 | 87*52*29.5 | -- | | | |
| ZPR45-S05 | 45 | 85-305 | 100-430 | 5 | 9 | 84 | 4000 | 87.0*52.0*29.5 | -- | | | |
| ZPR45-S12 | 45 | 85-305 | 100-430 | 12 | 3.75 | 86 | 4000 | 87.0*52.0*29.5 | -- | | | |
| ZPR45-S15 | 45 | 85-305 | 100-430 | 15 | 3 | 87 | 4000 | 87.0*52.0*29.5 | -- | | | |
| ZPR45-S24 | 45 | 85-305 | 100-430 | 24 | 1.87 | 88 | 4000 | 87.0*52.0*29.5 | -- | | | |
| ZPR45-S48 | 45 | 85-305 | 100-430 | 48 | 0.93 | 89 | 4000 | 87.0*52.0*29.5 | -- | | | |

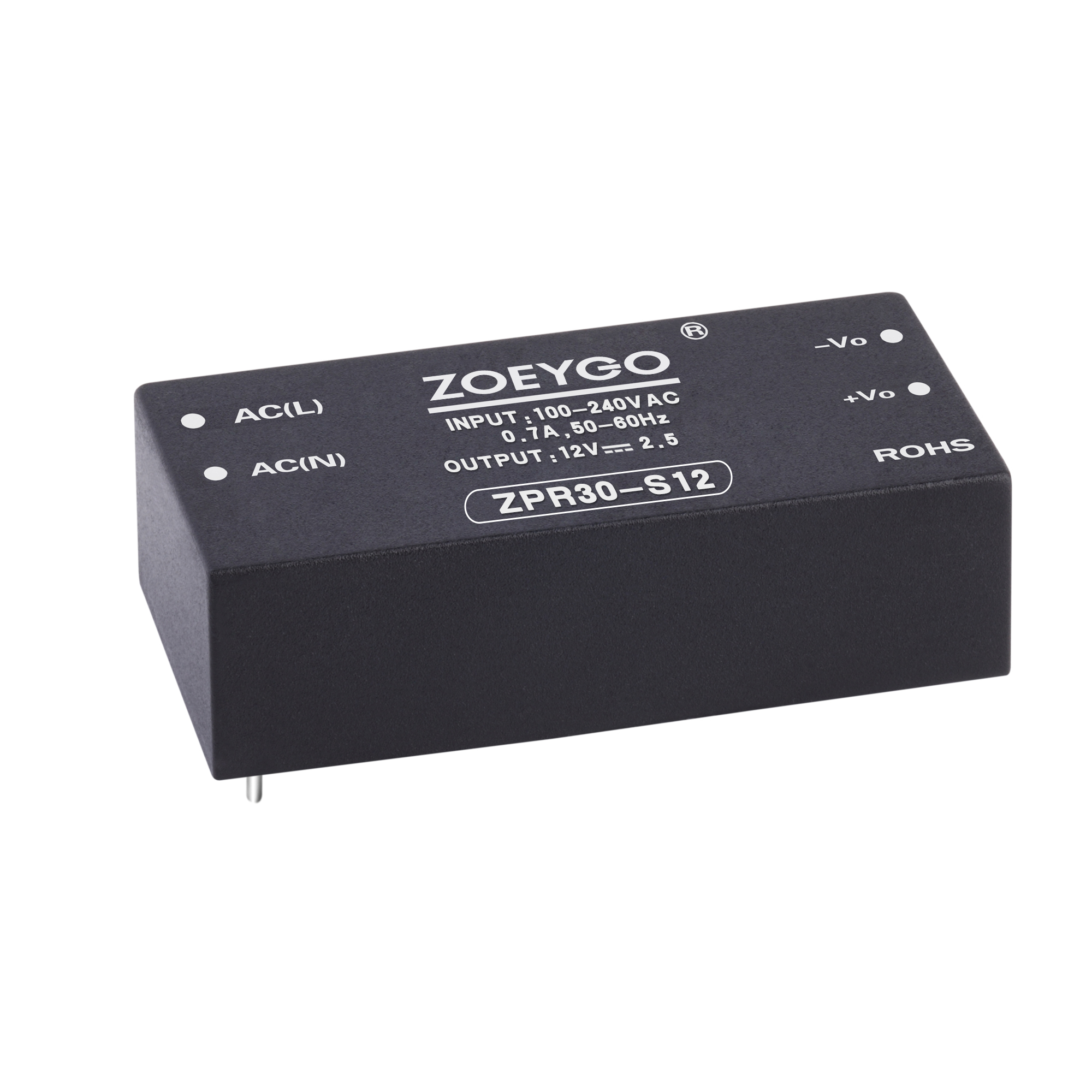

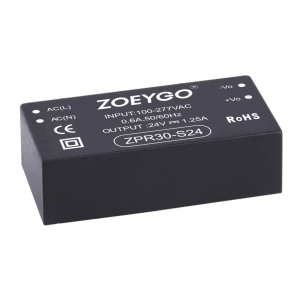

ZPR30-SXX ZPR30-SXX | 30 | 85-264 | 100-370 | 5-24 | 展开 | 展开 | 4000 | 69.5*35*24 | -- -- | -- | -- | -- |
| ZPR30-S03 | 19.8 | 85-305 | 100-430 | 3.3 | 6 | 84 | 4000 | 69.5*35.0*24.0 | -- | | | |
| ZPR30-S05 | 30 | 85-305 | 100-430 | 5 | 6 | 84 | 4000 | 69.5*35.0*24.0 | -- | | | |
| ZPR30-S12 | 30 | 85-305 | 100-430 | 12 | 2.5 | 84 | 4000 | 69.5*35.0*24.0 | -- | | | |
| ZPR30-S15 | 30 | 85-305 | 100-430 | 15 | 2 | 84 | 4000 | 69.5*35.0*24.0 | -- | | | |
| ZPR30-S24 | 30 | 85-305 | 100-430 | 24 | 1.25 | 86 | 4000 | 69.5*35.0*24.0 | -- | | | |
| ZPR30-S48 | 30 | 85-305 | 100-430 | 48 | 0.625 | 86 | 4000 | 69.5*35.0*24.0 | -- | | | |
ZPR20-SXX ZPR20-SXX | 20 | 85-264 | 100-370 | 5-24 | 展开 | 展开 | 3000 | 51*25.5*15.5 | -- -- | -- | -- | -- |

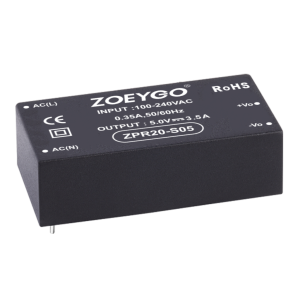

| ZPR20-S05 | 17.5 | 85-264 | 100-370 | 5 | 3.5 | 85 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZPR20-S09 | 20 | 85-264 | 100-370 | 9 | 2.22 | 84 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZPR20-S12 | 20 | 85-264 | 100-370 | 12 | 1.66 | 87 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZPR20-S15 | 20 | 85-264 | 100-370 | 15 | 1.33 | 88 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZPR20-S24 | 20 | 85-264 | 100-370 | 24 | 0.83 | 87 | 4000 | 51.0*25.5*15.5 | -- | | | |

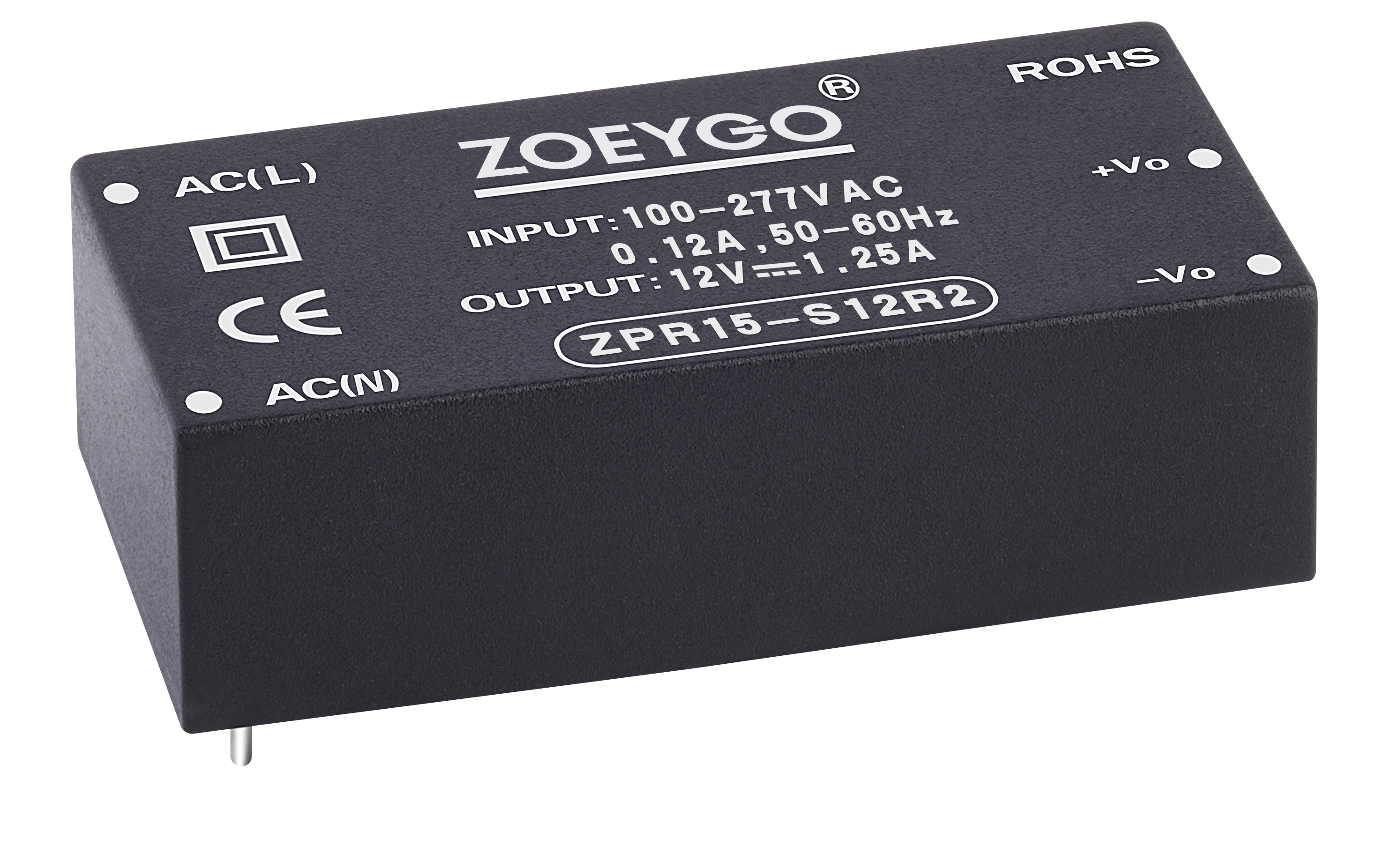

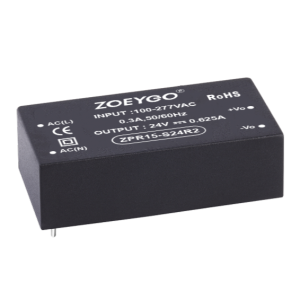

ZPR15-SXXR2 ZPR15-SXXR2 | 15 | 85-305 | 100-400 | 5-24 | 展开 | 展开 | 3000 | 45*25.4*15.5 | -- -- | -- | -- | -- |
| ZPR15-S05R2 | 15 | 85-305 | 100-430 | 5 | 3 | 85 | 3000 | 45.0*25.4*15.5 | -- | | | |
| ZPR15-S09R2 | 15 | 85-305 | 100-430 | 9 | 1.66 | 86 | 3000 | 45.0*25.4*15.5 | -- | | | |
| ZPR15-S12R2 | 15 | 85-305 | 100-430 | 12 | 1.25 | 89 | 3000 | 45.0*25.4*15.5 | -- | | | |
| ZPR15-S15R2 | 15 | 85-305 | 100-430 | 15 | 1 | 90 | 3000 | 45.0*25.4*15.5 | -- | | | |
| ZPR15-S24R2 | 15 | 85-305 | 100-430 | 24 | 0.625 | 89 | 3000 | 45.0*25.4*15.5 | -- | | | |

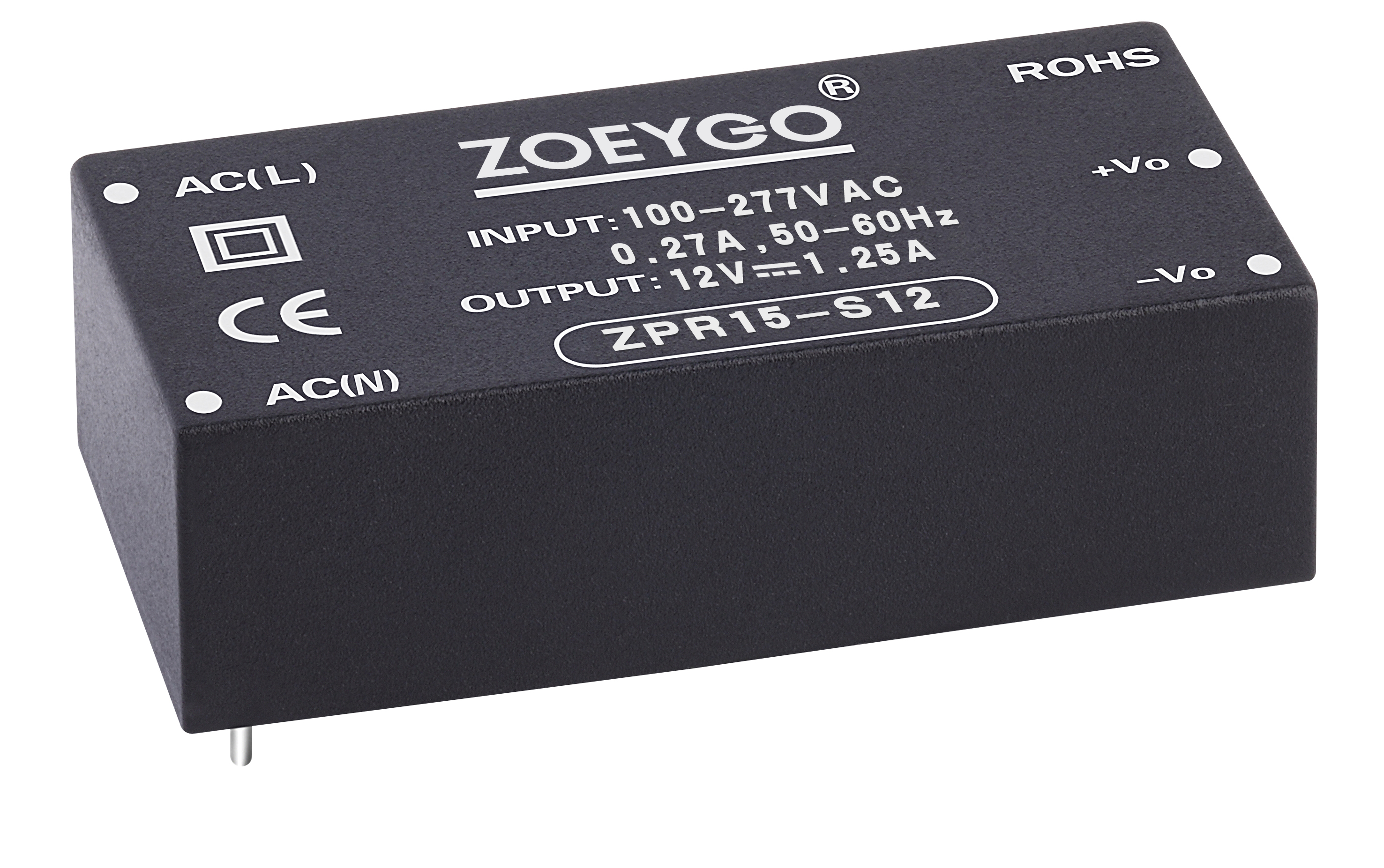

ZPR15-SXX ZPR15-SXX | 15 | 85-305 | 100-400 | 5-24 | 展开 | 展开 | 3000 | 51*25.5*15.5 | -- -- | -- | -- | -- |

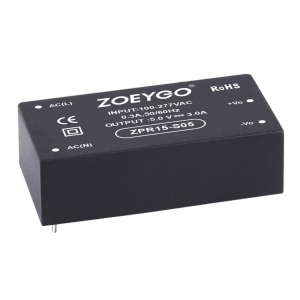

| ZPR15-S05 | 15 | 85-305 | 100-430 | 5 | 3 | 80 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZPR15-S09 | 15 | 85-305 | 100-430 | 9 | 1.66 | 85 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZPR15-S12 | 15 | 85-305 | 100-430 | 12 | 1.25 | 86 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZPR15-S15 | 15 | 85-305 | 100-430 | 15 | 1 | 86 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZPR15-S24 | 15 | 85-305 | 100-430 | 24 | 0.625 | 86 | 4000 | 51.0*25.5*15.5 | -- | | | |

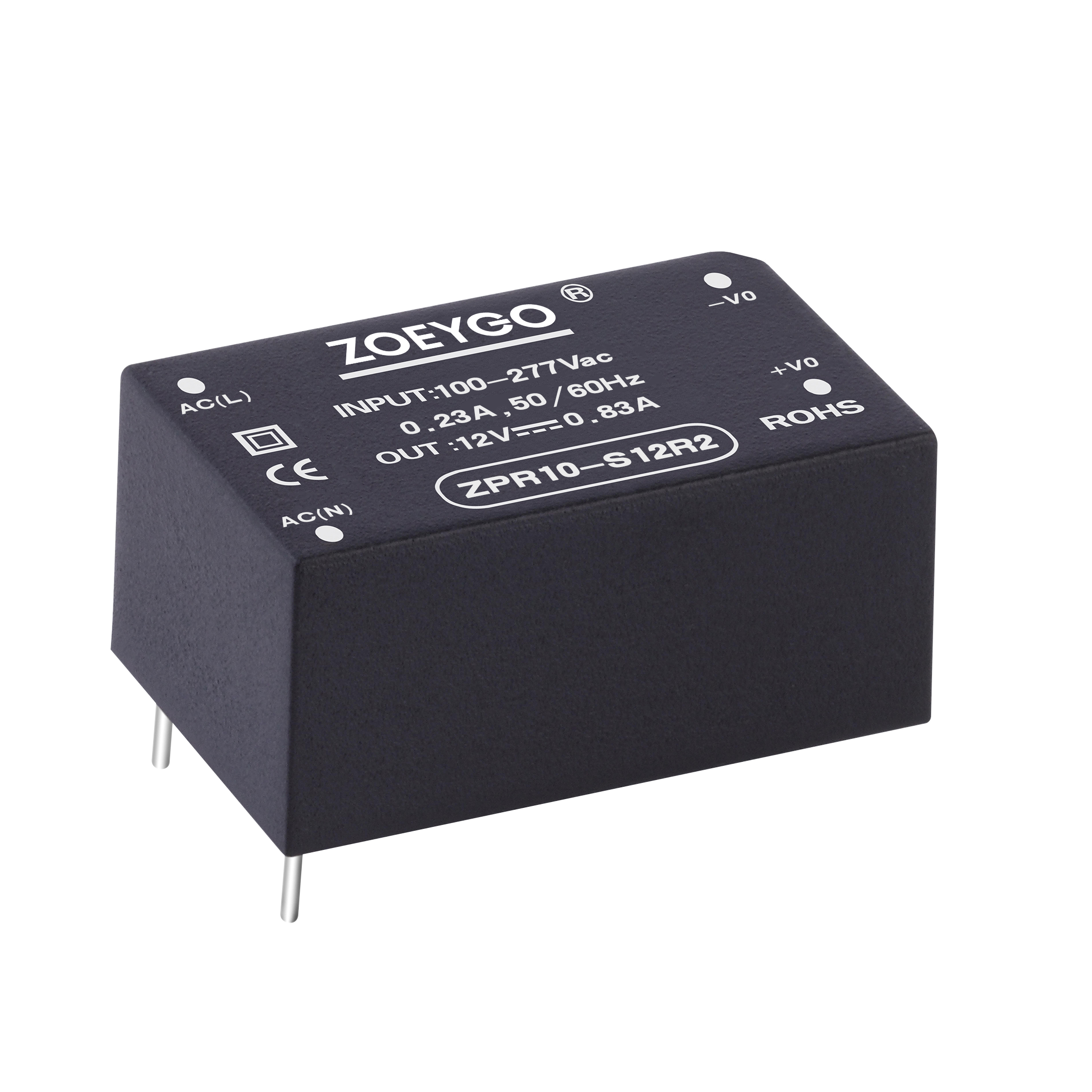

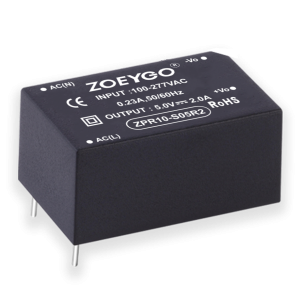

ZPR10-SXXR2 ZPR10-SXXR2 | 10 | 85-305 | 100-400 | 5-24 | 展开 | 展开 | 3000 | 39*25*22 | -- -- | -- | -- | -- |
| ZPR10-S05R2 | 10 | 85-305 | 100-430 | 5 | 2 | 76 | 3000 | 39.0*25.0*22.0 | -- | | | |
| ZPR10-S09R2 | 10 | 85-305 | 100-430 | 9 | 1.05 | 80 | 3000 | 39.0*25.0*22.0 | -- | | | |
| ZPR10-S12R2 | 10 | 85-305 | 100-430 | 12 | 0.83 | 82 | 3000 | 39.0*25.0*22.0 | -- | | | |
| ZPR10-S15R2 | 10 | 85-305 | 100-430 | 15 | 0.66 | 82 | 3000 | 39.0*25.0*22.0 | -- | | | |
| ZPR10-S24R2 | 10 | 85-305 | 100-430 | 24 | 0.42 | 83 | 3000 | 39.0*25.0*22.0 | -- | | | |

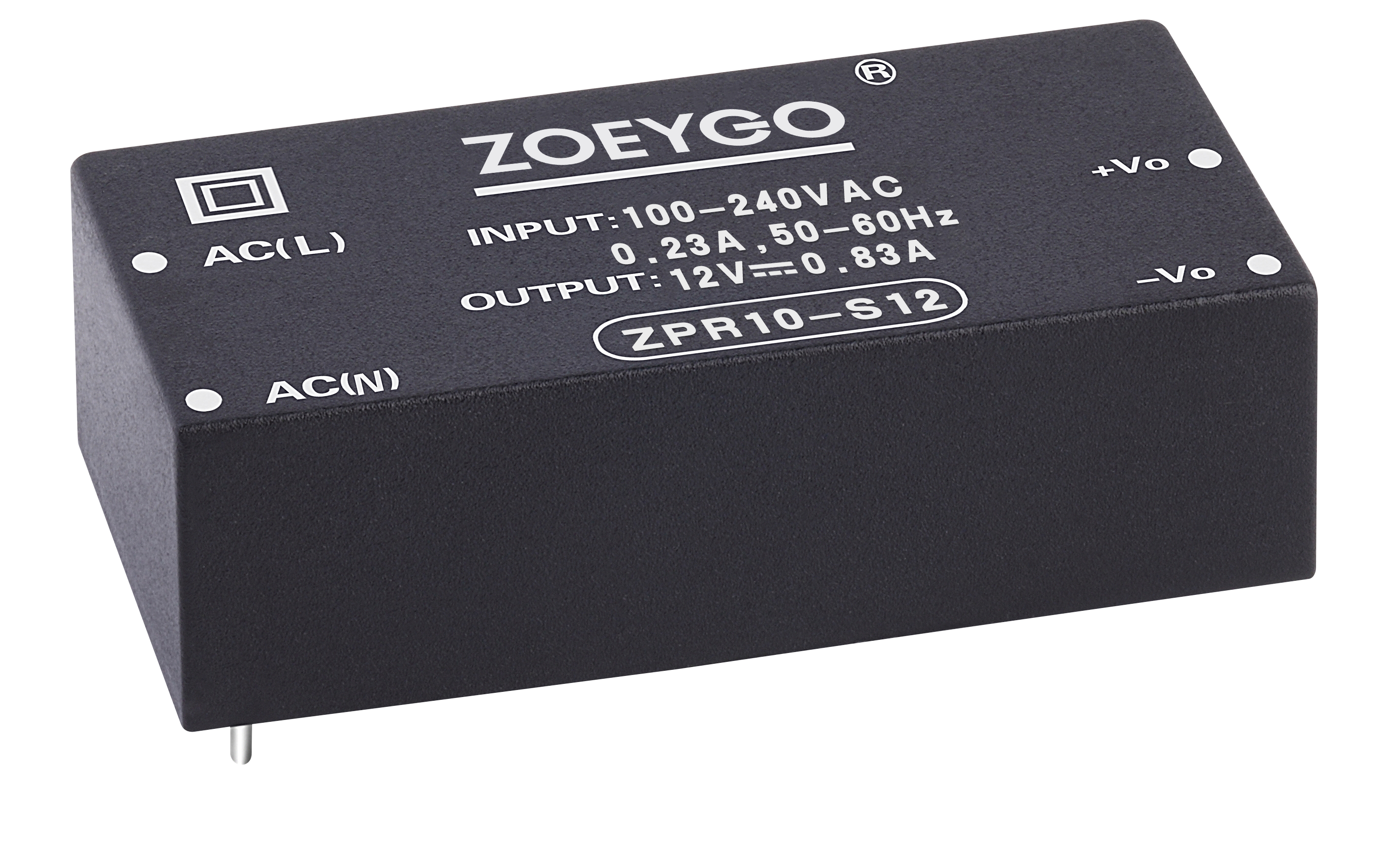

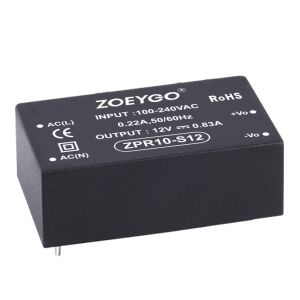

ZPR10-SXX ZPR10-SXX | 10 | 85-264 | 100-370 | 5-24 | 展开 | 展开 | 3000 | 45*25.4*15.5 | -- -- | -- | -- | -- |
| ZPR10-S05 | 10 | 85-264 | 100-370 | 5 | 2 | 76 | 3000 | 45.0*25.4*15.5 | -- | | | |
| ZPR10-S09 | 10 | 85-264 | 100-370 | 9 | 1.05 | 80 | 3000 | 45.0*25.4*15.5 | -- | | | |
| ZPR10-S12 | 10 | 85-264 | 100-370 | 12 | 0.83 | 81 | 3000 | 45.0*25.4*15.5 | -- | | | |
| ZPR10-S15 | 10 | 85-264 | 100-370 | 15 | 0.66 | 83 | 3000 | 45.0*25.4*15.5 | -- | | | |
| ZPR10-S24 | 10 | 85-264 | 100-370 | 24 | 0.42 | 84 | 3000 | 45.0*25.4*15.5 | -- | | | |

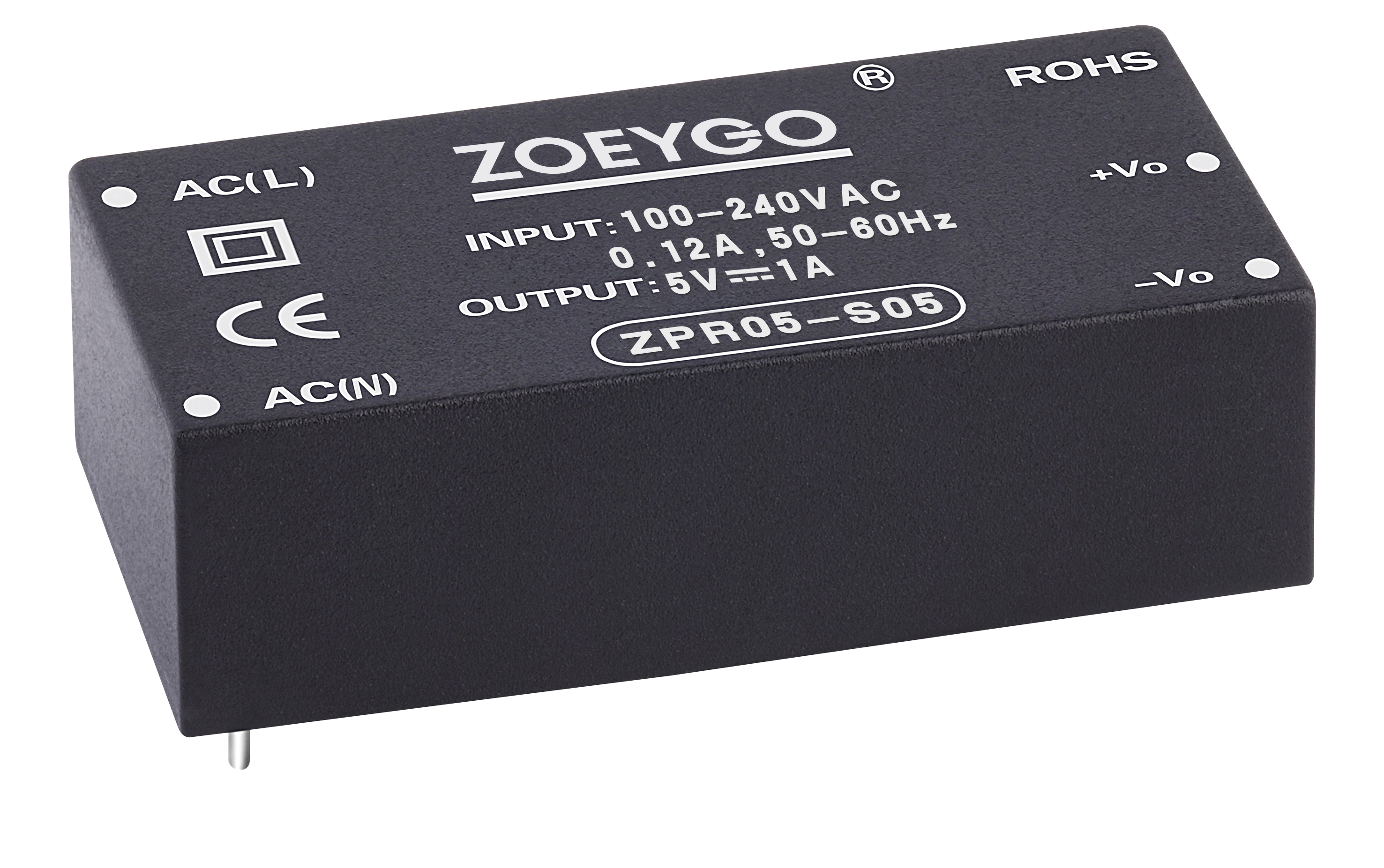

ZPR05-SXX ZPR05-SXX | 5 | 85-264 | 100-370 | 5-24 | 展开 | 展开 | 3000 | 45*25.4*15.5 | -- -- | -- | -- | -- |
| ZPR05-S05 | 5 | 85-264 | 100-370 | 5 | 1 | 76 | 3000 | 45.0*25.4*15.5 | -- | | | |
| ZPR05-S09 | 5 | 85-264 | 100-370 | 9 | 0.55 | 80 | 3000 | 45.0*25.4*15.5 | -- | | | |
| ZPR05-S12 | 5 | 85-264 | 100-370 | 12 | 0.42 | 81 | 3000 | 45.0*25.4*15.5 | -- | | | |
| ZPR05-S15 | 5 | 85-264 | 100-370 | 15 | 0.33 | 83 | 3000 | 45.0*25.4*15.5 | -- | | | |
| ZPR05-S24 | 5 | 85-264 | 100-370 | 24 | 0.21 | 84 | 3000 | 45.0*25.4*15.5 | -- | | | |

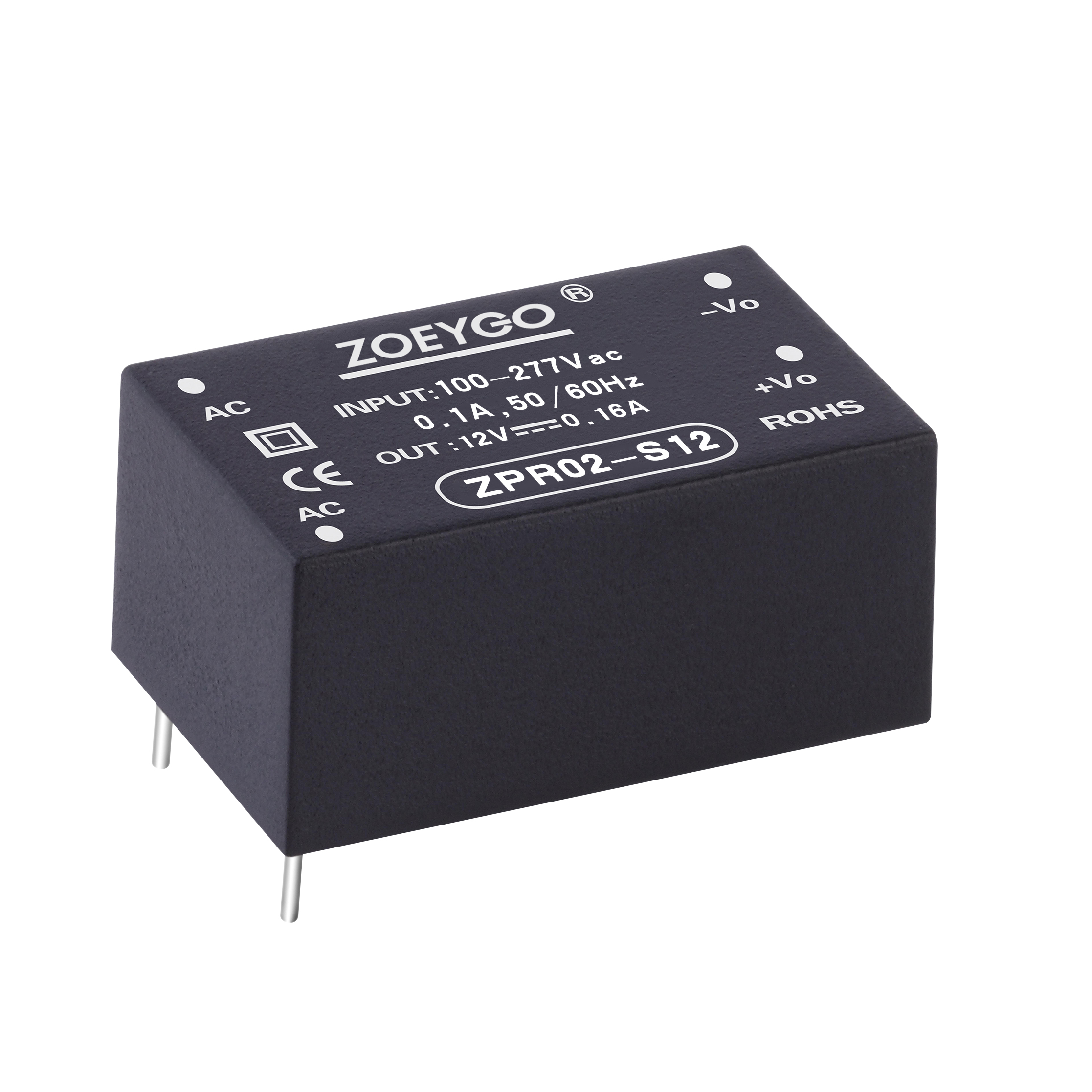

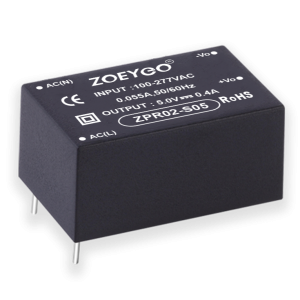

ZPR02-SXX ZPR02-SXX | 2 | 85-305 | 100-400 | 5-24 | 展开 | 展开 | 3000 | 32.5*20.5*15 | -- -- | -- | -- | -- |
| ZPR02-S05 | 2 | 85-305 | 100-430 | 5 | 0.4 | 70 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZPR02-S09 | 2 | 85-305 | 100-430 | 9 | 0.222 | 73 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZPR02-S12 | 2 | 85-305 | 100-430 | 12 | 0.167 | 76 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZPR02-S15 | 2 | 85-305 | 100-430 | 15 | 0.133 | 76 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZPR02-S24 | 2 | 85-305 | 100-430 | 24 | 0.083 | 81 | 3000 | 32.5*20.5*15.0 | -- | | | |
ZPR01-SXX ZPR01-SXX | 1 | 85-305 | 100-400 | 5-24 | 展开 | 展开 | 3000 | 32.5*20.5*15 | -- -- | -- | -- | -- |
| ZPR01-S05 | 1 | 85-305 | 100-430 | 5 | 0.2 | 70 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZPR01-S09 | 1 | 85-305 | 100-430 | 9 | 0.111 | 73 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZPR01-S12 | 1 | 85-305 | 100-430 | 12 | 0.083 | 79 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZPR01-S15 | 1 | 85-305 | 100-430 | 15 | 0.066 | 77 | 3000 | 32.5*20.5*15.0 | -- | | | |

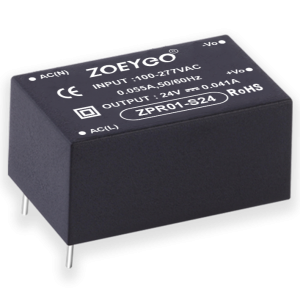

| ZPR01-S24 | 1 | 85-305 | 100-430 | 24 | 0.041 | 81 | 3000 | 32.5*20.5*15.0 | -- | | | |

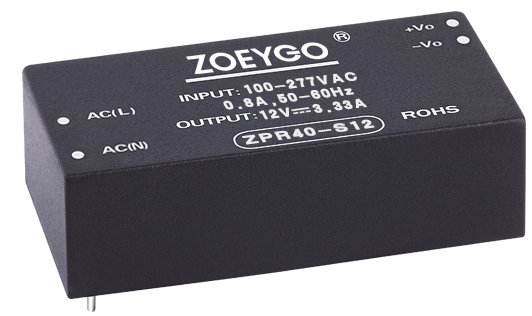

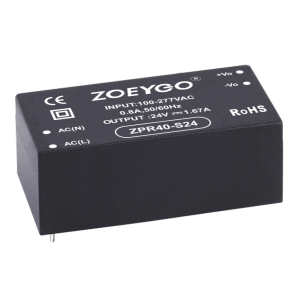

ZPR40-SXX ZPR40-SXX | 40 | 85-305 | 100-430 | 展开 | 展开 | 展开 | 展开 | 展开 | -- -- | -- -- | -- | -- |
| ZPR40-S05 | 35 | 85-305 | 100-430 | 5 | 7 | 86 | 4000 | 69.5*35.0*24.0 | -- | -- | | |
| ZPR40-S12 | 40 | 85-305 | 100-430 | 12 | 3.33 | 89 | 4000 | 69.5*35.0*24.0 | -- | -- | | |
| ZPR40-S15 | 40 | 85-305 | 100-430 | 15 | 2.66 | 90 | 4000 | 69.5*35.0*24.0 | -- | -- | | |
| ZPR40-S24 | 40 | 85-305 | 100-430 | 24 | 1.67 | 87 | 4000 | 69.5*35.0*24.0 | -- | -- | | |
| ZPR40-S36 | 40 | 85-305 | 100-430 | 36 | 1.11 | 87 | 4000 | 69.5*35.0*24.0 | -- | -- | | |
| ZPR40-S48 | 40 | 85-305 | 100-430 | 48 | 0.83 | 89 | 4000 | 69.5*35.0*24.0 | -- | -- | | |
