标准化SP多路系列是中逸光为客户提供的小体积AC/DC电源模块。该系列电源具有多组输出、全球输入电压范围、交直流两用、低功耗、高效率、高可靠性、安全隔离等优点。产品安全可靠，抗浪涌性能优越，EMC 及安全规格满足IEC/EN61000-4、CISPR22/EN55022、UL62368 和EN62368等标准。
展开查看更多
模块型电源
产品中心
标准化SP多路系列
点击展开条件搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效率% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |
| SP05-DXXYY | 5 | 85-305 | 100-430 | 5.0-24/±12-±15 | 0.1-0.6 | 70-76 | 3000 | 48.5*36.0*20.5 | -- -- | -- |  -- |  -- |
| SP05-D0505 | 5 | 85-305 | 100-430 | 5&5 | 0.6&0.4 | 70 | 3000 | 48.5*36.0*20.5 | -- | | | |

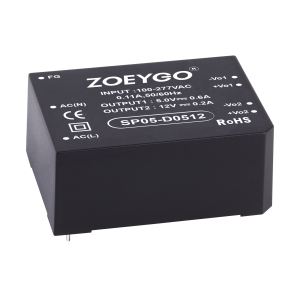

| SP05-D0512 | 5 | 85-305 | 100-430 | 5&12 | 0.6&0.2 | 75 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP05-D0515 | 5 | 85-305 | 100-430 | 5&15 | 0.7&0.1 | 75 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP05-D1218 | 5 | 85-305 | 100-430 | 12&18 | 0.4&0.1 | 75 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP05-D0524 | 5 | 85-305 | 100-430 | 5&24 | 0.6&.1 | 76 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP05-D12 | 5 | 85-305 | 100-430 | ±12 | 0.21&0.21 | 75 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP10-D(T)XX | 10 | 85-264 | 100-370 | 5.0-15/±12-±15 | 0.2-1 | 75-81 | 3000 | 55.0*45.0*21.0 | -- -- | -- | -- | -- |
| SP10-D05 | 10 | 85-264 | 100-370 | ±5 | 1&1 | 75 | 3000 | 55.0*45.0*21.0 | -- | | | |
| SP10-D12 | 10 | 85-264 | 100-370 | ±12 | 0.45&0.45 | 80 | 3000 | 55.0*45.0*21.0 | -- | | | |
| SP10-D15 | 10 | 85-264 | 100-370 | ±15 | 0.35&0.35 | 81 | 3000 | 55.0*45.0*21.0 | -- | | | |
| SP10-TA | 10 | 85-264 | 100-370 | 5&±12 | 1&0.25 | 79 | 3000 | 55.0*45.0*21.0 | -- | | | |
| SP10-TB | 10 | 85-264 | 100-370 | 5&±15 | 1&0.2 | 80 | 3000 | 55.0*45.0*21.0 | -- | | | |
| SP10-D(T)XXR2 | 10 | 85-264 | 100-370 | 5.0-15/±12-±15 | 0.2-1 | 73-81 | 3000 | 48.5*36.0*20.5 | -- -- | -- | -- | -- |
| SP10-D05R2 | 10 | 85-264 | 100-370 | ±5 | 1&1 | 73 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP10-D12R2 | 10 | 85-264 | 100-370 | ±12 | 0.42&0.42 | 80 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP10-D15R2 | 10 | 85-264 | 100-370 | ±15 | 0.35&0.35 | 81 | 3000 | 48.5*36.0*20.5 | -- | | | |

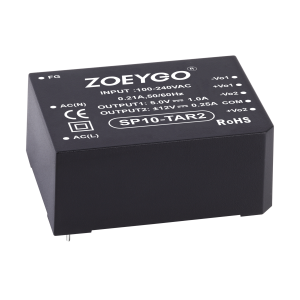

| SP10-TAR2 | 10 | 85-264 | 100-370 | 5&±12 | 1&0.25 | 79 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP10-TBR2 | 10 | 85-264 | 100-370 | 5&±15 | 1&0.2 | 80 | 3000 | 48.5*36.0*20.5 | -- | | | |
SP10-DXXYY SP10-DXXYY | 10 | 85-305 | 100-430 | 5.0-24 | 0.25-1.5 | 75-79 | 3000 | 55.0*45.0*21.0 | -- -- | -- | -- | -- |
| SP10-D0505 | 10 | 85-305 | 100-430 | 5&5 | 1.5&0.5 | 75 | 3000 | 55.0*45.0*21.0 | -- | | | |

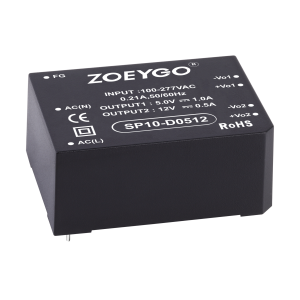

| SP10-D0512 | 10 | 85-305 | 100-430 | 5&12 | 1&0.5 | 78 | 3000 | 55.0*45.0*21.0 | -- | | | |
| SP10-D0515 | 10 | 85-305 | 100-430 | 5&15 | 1&0.33 | 78 | 3000 | 55.0*45.0*21.0 | -- | | | |
| SP10-D0524 | 10 | 85-305 | 100-430 | 5&24 | 1&0.25 | 79 | 3000 | 55.0*45.0*21.0 | -- | | | |
SP10-DXXYYR2 SP10-DXXYYR2 | 10 | 140-310 | 197-430 | 5.0-24 | 0.2-2 | 78-85 | 3000 | 48.5*36.0*20.5 | -- -- | -- | -- | -- |
| SP10-D0505R2 | 10 | 140-310 | 197-430 | 5&5 | 1.5&0.5 | 78 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP10-D0509R2 | 10 | 140-310 | 197-430 | 5&9 | 2&0.32 | 80 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP10-D0512R2 | 10 | 140-310 | 197-430 | 5&12 | 1&0.5 | 84 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP10-D0524R2 | 10 | 140-310 | 197-430 | 5&24 | 1&0.25 | 85 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP10-D1212R2 | 10 | 140-310 | 197-430 | 12&12 | 0.6&0.2 | 85 | 3000 | 48.5*36.0*20.5 | -- | | | |
| SP15-D(T)XXYY | 15 | 85-305 | 100-430 | 5.0-24/±12-±15 | 0.25-1.5 | 79-84 | 3000 | 62.0*45.0*23.0 | -- -- | -- | -- | -- |
| SP15-D0512 | 15 | 85-305 | 100-430 | 5&12 | 1.5&0.625 | 79 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-D0524 | 15 | 85-305 | 100-430 | 5&24 | 1.5&0.32 | 80 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-D1212 | 15 | 85-305 | 100-430 | 12&12 | 0.9&0.3 | 84 | 3000 | 62.0*45.0*23.0 | -- | | | |

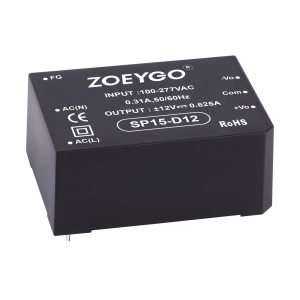

| SP15-D12 | 15 | 85-305 | 100-430 | ±12 | 0.625&0.625 | 80 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-D15 | 15 | 85-305 | 100-430 | ±15 | 0.5&0.5 | 80 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-TA | 15 | 85-305 | 100-430 | 5&±12 | 1.5&0.32 | 80 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP15-TB | 15 | 85-305 | 100-430 | 5&±15 | 1.5&0.25 | 80 | 3000 | 62.0*45.0*23.0 | -- | | | |
| SP20-D(T)XXYY | 20 | 85-305 | 100-430 | 5.0-24/±12-±15 | 0.33-2 | 82-84 | 3000 | 70.0*48.0*23.5 | -- -- | -- | -- | -- |
| SP20-D0512 | 20 | 85-305 | 100-430 | 5&12 | 2&0.83 | 82 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP20-D0524 | 20 | 85-305 | 100-430 | 5&24 | 2&0.415 | 83 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP20-D12 | 20 | 85-305 | 100-430 | ±12 | 0.83&0.83 | 82 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP20-D15 | 20 | 85-305 | 100-430 | ±15 | 0.66&0.66 | 84 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP20-TA | 20 | 85-305 | 100-430 | 5&±12 | 2&0.41 | 82 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP20-TB | 20 | 85-305 | 100-430 | 5&±15 | 2&0.33 | 83 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP25-D(T)XXYY | 25 | 85-305 | 100-430 | 5.0-24/±12-±15 | 0.415-3 | 82-84 | 3000 | 70.0*48.0*23.5 | -- -- | -- | -- | -- |
| SP25-D0505 | 25 | 85-305 | 100-430 | 5&5 | 3&2 | 82 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP25-D0512 | 25 | 85-305 | 100-430 | 5&12 | 3&0.83 | 82 | 3000 | 70.0*48.0*23.5 | -- | | | |

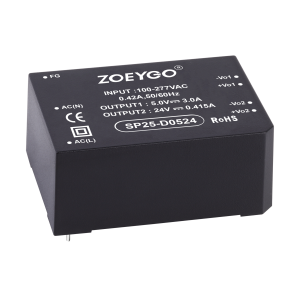

| SP25-D0524 | 25 | 85-305 | 100-430 | 5&24 | 3&0.415 | 83 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP25-D12 | 25 | 85-305 | 100-430 | ±12 | 1.1&1.1 | 82 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP25-D15 | 25 | 85-305 | 100-430 | ±15 | 0.83&0.83 | 84 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP25-TA | 25 | 85-305 | 100-430 | 5&±12 | 3&0.5 | 82 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP25-TB | 25 | 85-305 | 100-430 | 5&±15 | 3&0.5 | 83 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP30-DXXYY | 30 | 85-305 | 100-430 | 5.0-24/-5 | 0.5-4 | 83-84 | 3000 | 70.0*48.0*23.5 | -- -- | -- | -- | -- |
| SP30-D05 | 30 | 85-305 | 100-430 | ±5 | 3&3 | 83 | 3000 | 70.0*48.0*23.5 | -- | | | |

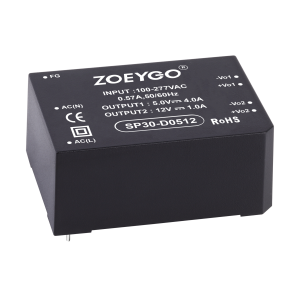

| SP30-D0512 | 30 | 85-305 | 100-430 | 5&12 | 4&1 | 83 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP30-D0524 | 30 | 85-305 | 100-430 | 5&24 | 4&0.5 | 84 | 3000 | 70.0*48.0*23.5 | -- | | | |
| SP30-D1515 | 30 | 85-305 | 100-430 | 15&15 | 1&1 | 84 | 3000 | 70.0*48.0*23.5 | -- | | |
