国产化AES系列是中逸光为客户研发的全国产化物料设计的AC/DC电源模块。该系列电源具有全球输入电压范围、交直流两用、低功耗、高效率、高可靠性、安全隔离等优点。产品安全可靠，抗浪涌性能优越，EMC 及安全规格满足IEC/EN61000-4、CISPR22/EN55022、UL62368 和EN62368等标准。
展开查看更多
模块型电源
产品中心
国产化AES系列
点击展开条件搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效率% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |

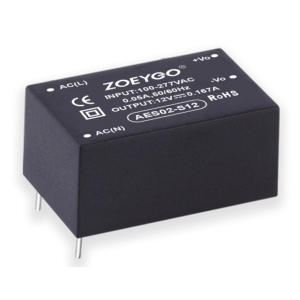

AES02-SXX AES02-SXX | 2 | 85-305 | 100-430 | 5.0-24 | 0.083-0.4 | 71-76 | 3000 | 32.5*20.5*15.0 | -- -- | -- |  -- |  -- |
| AES02-S05 | 2 | 85-305 | 100-430 | 5 | 0.4 | 71 | 3000 | 32.5*20.5*15.0 | -- | | | |
| AES02-S09 | 2 | 85-305 | 100-430 | 9 | 0.22 | 71 | 3000 | 32.5*20.5*15.0 | -- | | | |
| AES02-S12 | 2 | 85-305 | 100-430 | 12 | 0.167 | 73 | 3000 | 32.5*20.5*15.0 | -- | | | |
| AES02-S15 | 2 | 85-305 | 100-430 | 15 | 0.133 | 73 | 3000 | 32.5*20.5*15.0 | -- | | | |
| AES02-S24 | 2 | 85-305 | 100-430 | 24 | 0.083 | 76 | 3000 | 32.5*20.5*15.0 | -- | | | |

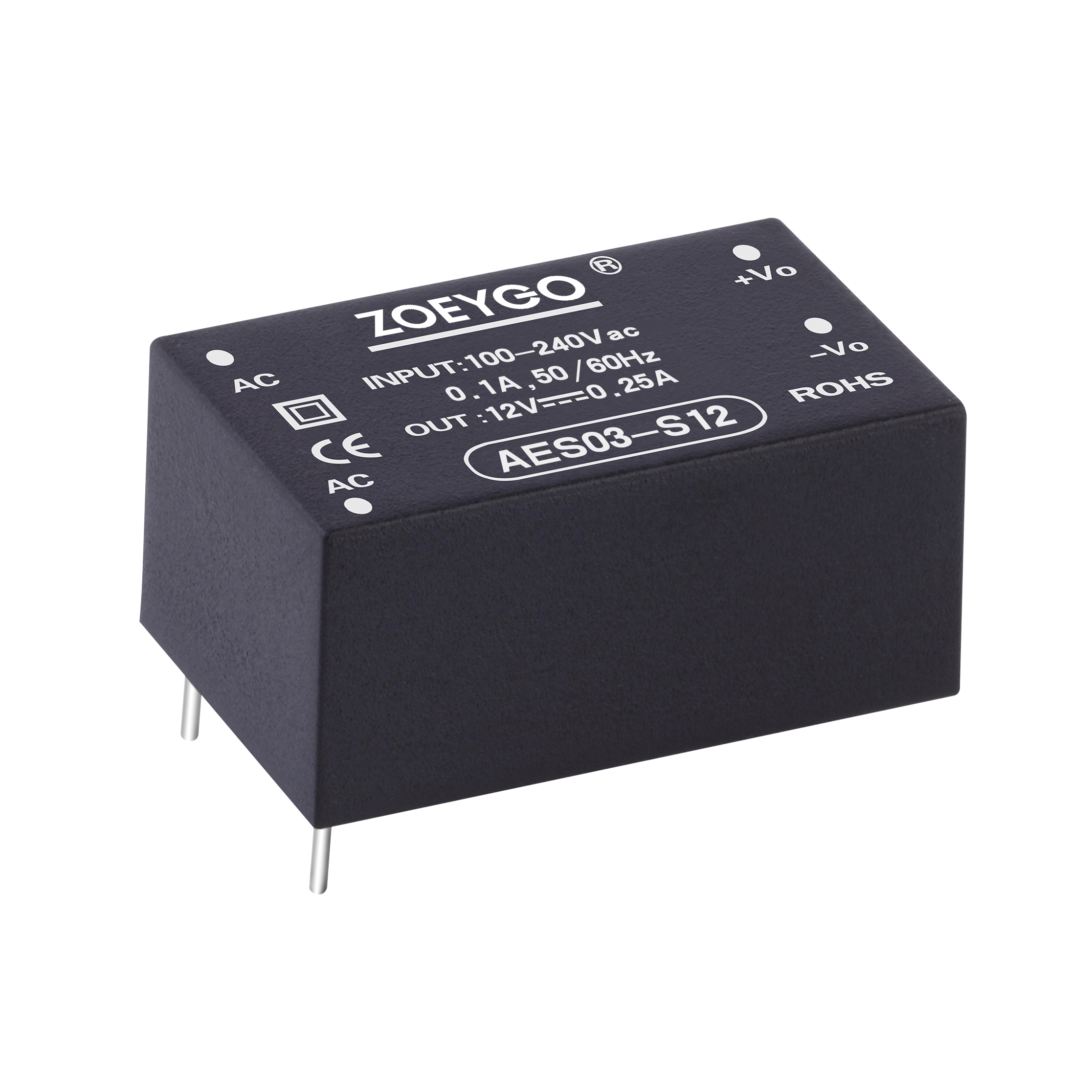

AES03-SXX AES03-SXX | 3 | 85-305 | 100-430 | 5.0-24 | 0.12-0.6 | 71-76 | 3000 | 32.5*20.5*15.0 | -- -- | -- | -- | -- |
| AES03-S05 | 3 | 85-264 | 100-370 | 5 | 0.6 | 68 | 3000 | 32.5*20.5*15.0 | -- | | | |
| AES03-S09 | 3 | 85-264 | 100-370 | 9 | 0.33 | 72 | 3000 | 32.5*20.5*15.0 | -- | | | |

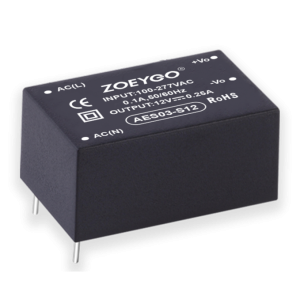

| AES03-S12 | 3 | 85-264 | 100-370 | 12 | 0.25 | 73 | 3000 | 32.5*20.5*15.0 | -- | | | |
| AES03-S15 | 3 | 85-264 | 100-370 | 15 | 0.2 | 74 | 3000 | 32.5*20.5*15.0 | -- | | | |
| AES03-S24 | 3 | 85-264 | 100-370 | 24 | 0.12 | 75 | 3000 | 32.5*20.5*15.0 | -- | | | |

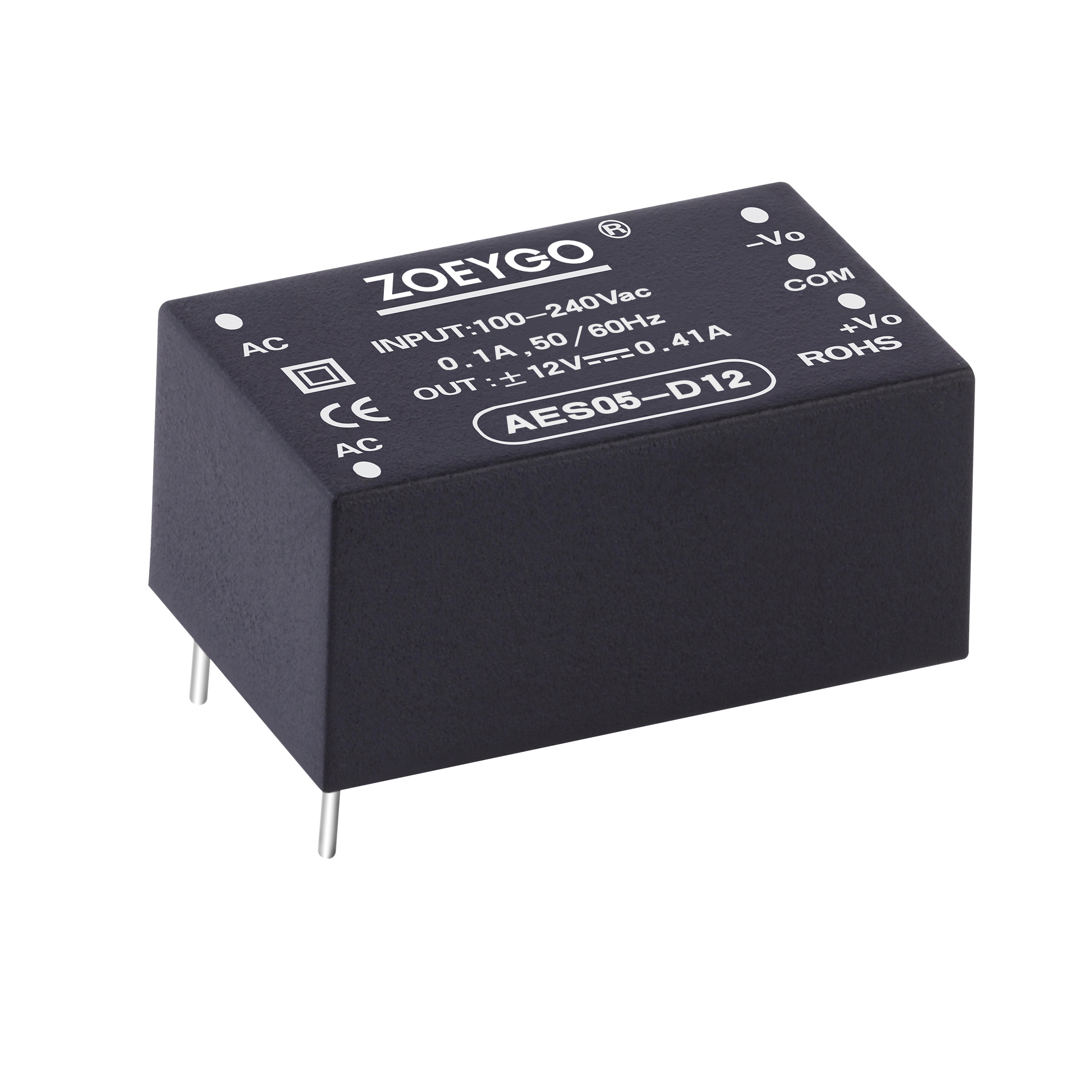

AES05-DXX AES05-DXX | 5 | 85-264 | 100-370 | ±5.0-±24 | 0.1-0.5 | 77-80 | 3000 | 39.0*25.0*22.0 | -- -- | -- | -- | -- |
| AES05-D05 | 5 | 85-264 | 100-370 | ±5 | 0.5 | 77 | 3000 | 39.0*25.0*22.0 | -- | | | |

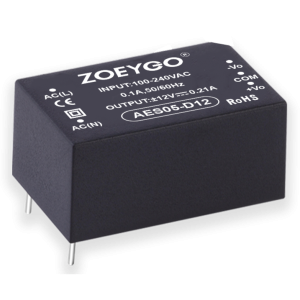

| AES05-D12 | 5 | 85-264 | 100-370 | ±12 | 0.21 | 78 | 3000 | 39.0*25.0*22.0 | -- | | | |
| AES05-D24 | 5 | 85-264 | 100-370 | ±24 | 0.1 | 80 | 3000 | 39.0*25.0*22.0 | -- | | | |

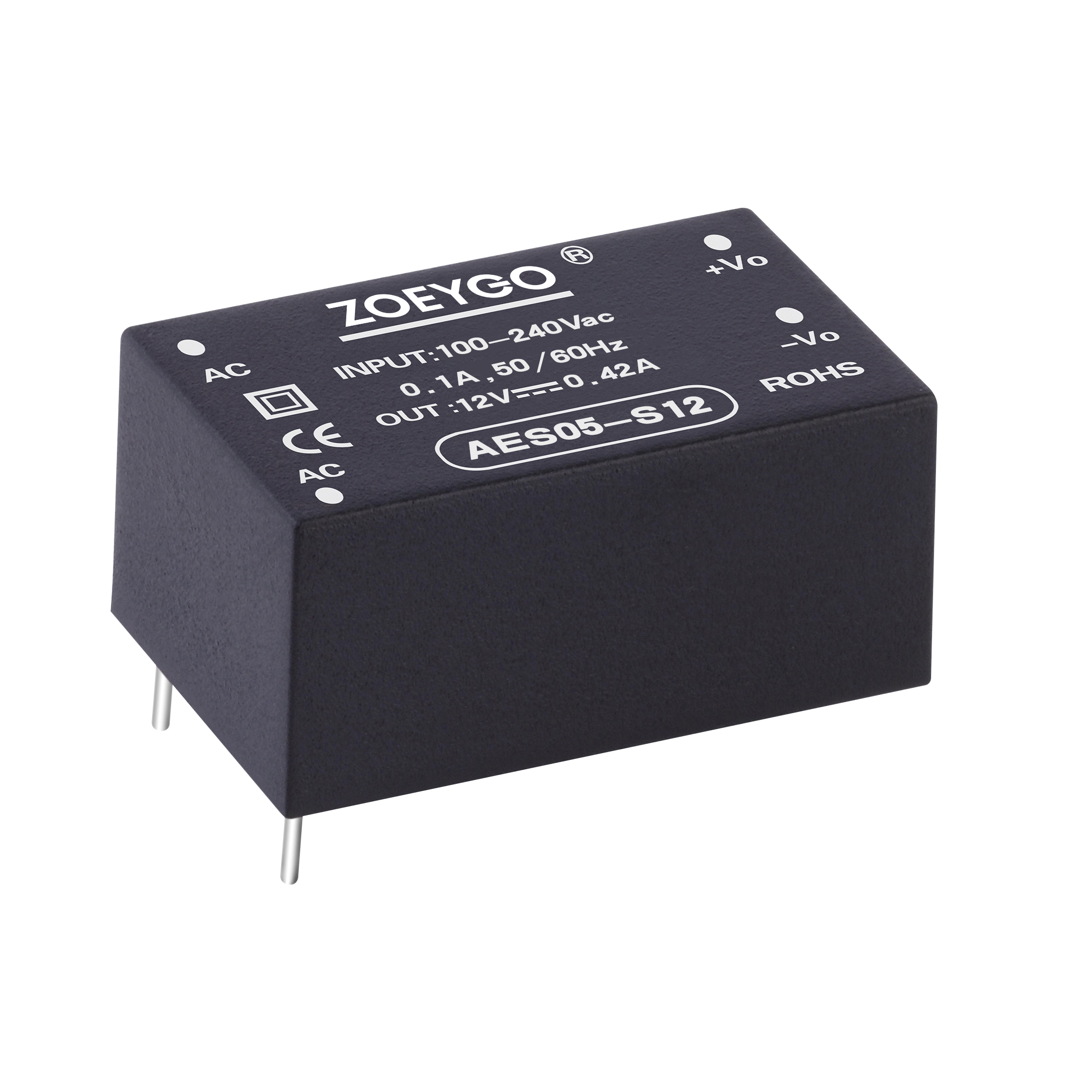

AES05-SXX AES05-SXX | 5 | 85-264 | 100-370 | 5.0-24 | 0.21-0.8 | 69-76 | 3000 | 37.0*24.5*15.5 | -- -- | -- | -- | -- |

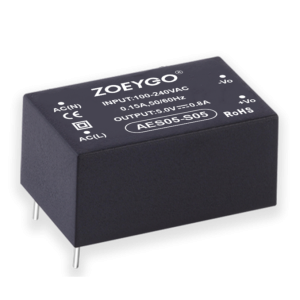

| AES05-S05 | 4 | 85-264 | 100-370 | 5 | 0.8 | 69 | 3000 | 37.0*24.5*15.5 | -- | | | |
| AES05-S09 | 5 | 85-264 | 100-370 | 9 | 0.55 | 69 | 3000 | 37.0*24.5*15.5 | -- | | | |
| AES05-S12 | 5 | 85-264 | 100-370 | 12 | 0.42 | 75 | 3000 | 37.0*24.5*15.5 | -- | | | |
| AES05-S15 | 5 | 85-264 | 100-370 | 15 | 0.33 | 75 | 3000 | 37.0*24.5*15.5 | -- | | | |
| AES05-S24 | 5 | 85-264 | 100-370 | 24 | 0.21 | 76 | 3000 | 37.0*24.5*15.5 | -- | | | |
| AES05-SXXR2 | 5 | 85-264 | 100-370 | 3.3-24 | 0.21-1 | 64-81 | 3000 | 32.5*20.5*15.0 | -- -- | -- | -- | -- |
| AES05-S03R2 | 3.3 | 85-264 | 100-370 | 3.3 | 1 | 64 | 3000 | 32.5*20.5*15.0 | -- | | | |
| AES05-S05R2 | 5 | 85-264 | 100-370 | 5 | 1 | 76 | 3000 | 32.5*20.5*15.0 | -- | | | |
| AES05-S09R2 | 5 | 85-264 | 100-370 | 9 | 0.55 | 77 | 3000 | 32.5*20.5*15.0 | -- | | | |
| AES05-S12R2 | 5 | 85-264 | 100-370 | 12 | 0.42 | 79 | 3000 | 32.5*20.5*15.0 | -- | | | |
| AES05-S15R2 | 5 | 85-264 | 100-370 | 15 | 0.33 | 79 | 3000 | 32.5*20.5*15.0 | -- | | | |
| AES05-S24R2 | 5 | 85-264 | 100-370 | 24 | 0.21 | 81 | 3000 | 32.5*20.5*15.0 | -- | | | |

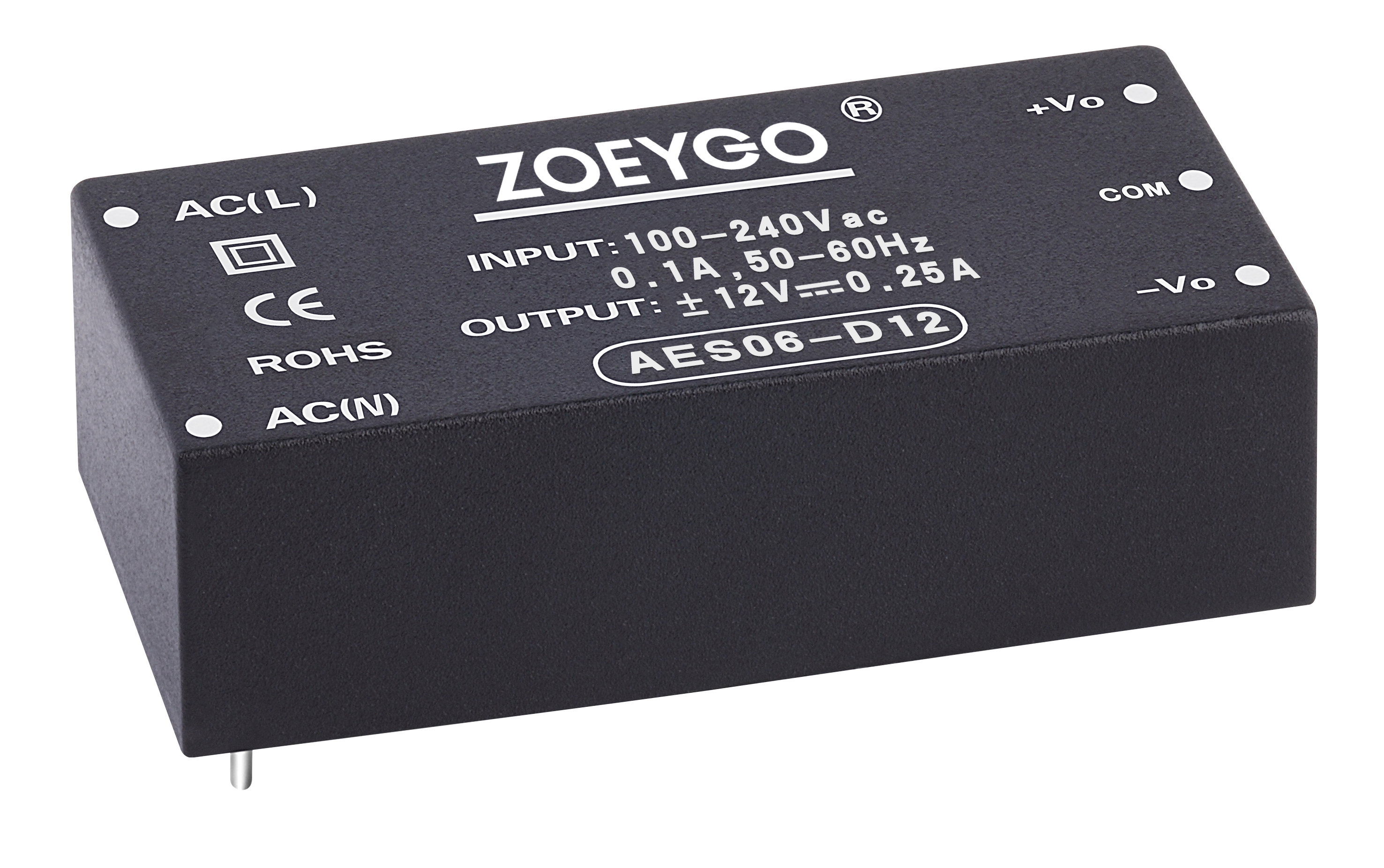

AES06-DXX AES06-DXX | 6 | 85-305 | 100-430 | ±5.0-±15 | 0.2-0.6 | 74-83 | 3000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |

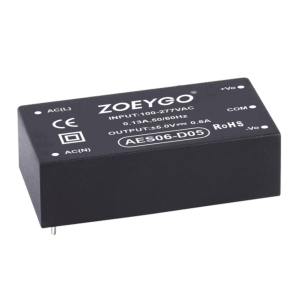

| AES06-D05 | 6 | 85-305 | 100-430 | ±5 | 0.6 | 74 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES06-D09 | 6 | 85-305 | 100-430 | ±9 | 0.33 | 78 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES06-D12 | 6 | 85-305 | 100-430 | ±12 | 0.25 | 82 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES06-D15 | 6 | 85-305 | 100-430 | ±15 | 0.2 | 83 | 3000 | 51.0*25.5*15.5 | -- | | | |

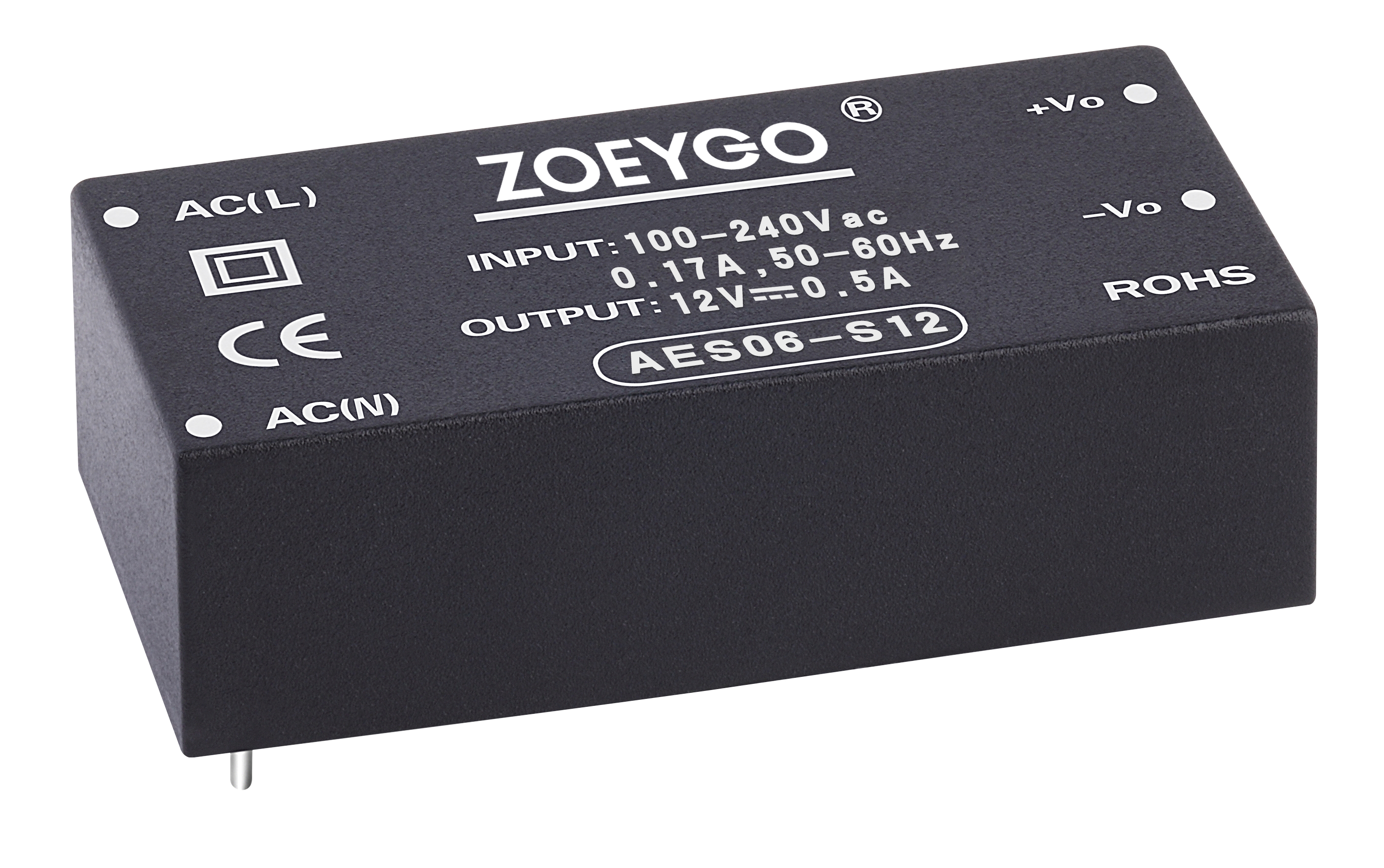

AES06-SXX AES06-SXX | 6 | 85-264 | 100-370 | 5.0-24 | 0.25-1.2 | 75-84 | 3000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |
| AES06-S05 | 6 | 85-264 | 100-370 | 5 | 1.2 | 75 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES06-S09 | 6 | 85-264 | 100-370 | 9 | 0.66 | 78 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES06-S12 | 6 | 85-264 | 100-370 | 12 | 0.5 | 82 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES06-S15 | 6 | 85-264 | 100-370 | 15 | 0.4 | 83 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES06-S24 | 6 | 85-264 | 100-370 | 24 | 0.25 | 84 | 3000 | 51.0*25.5*15.5 | -- | | | |

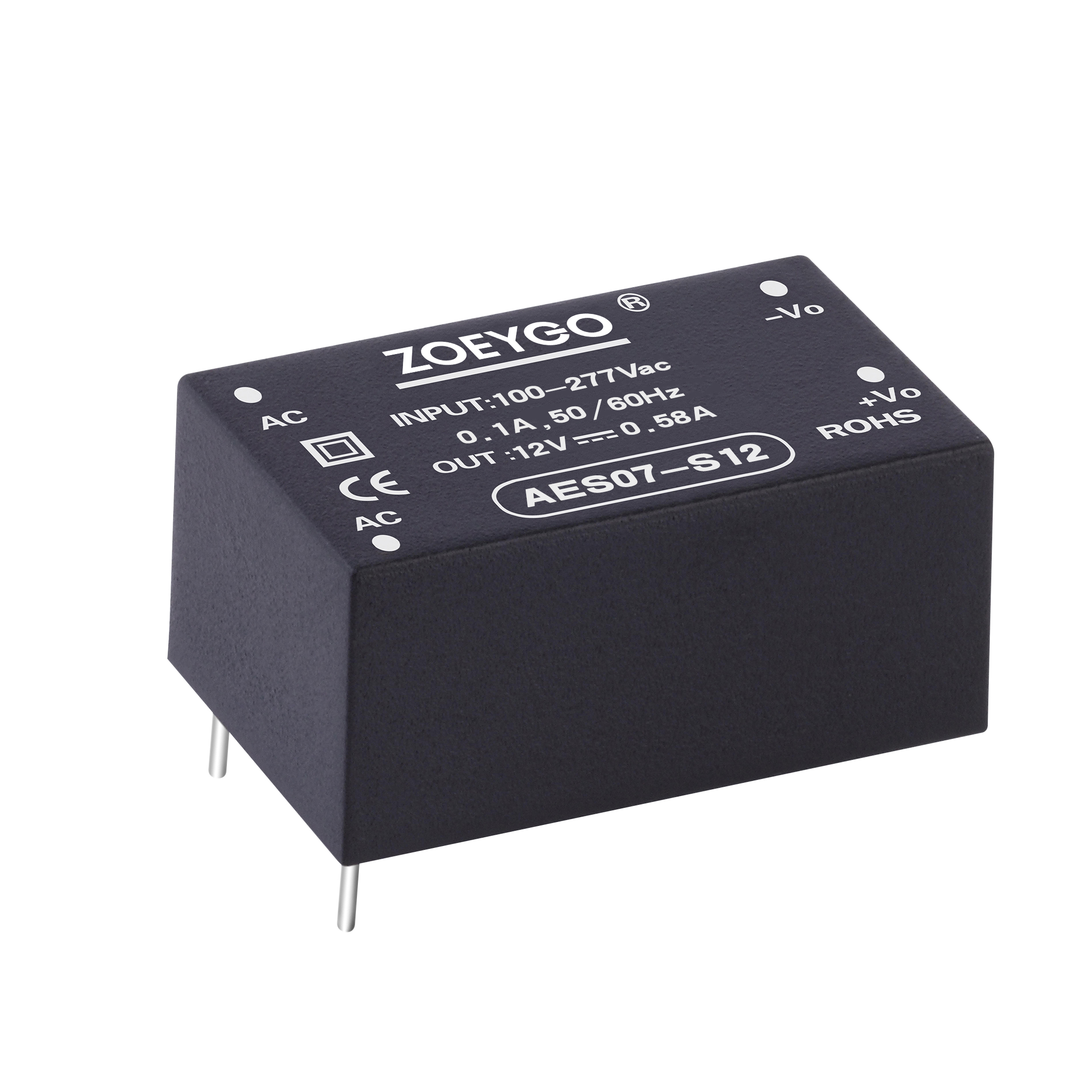

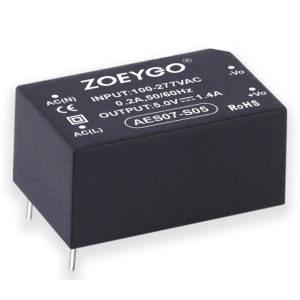

AES07-SXX AES07-SXX | 7 | 85-305 | 100-430 | 5.0-24 | 0.3-1.4 | 77-80 | 3000 | 39.0*25.0*22.0 | -- -- | -- | -- | -- |
| AES07-S05 | 7 | 85-305 | 100-430 | 5 | 1.4 | 77 | 3000 | 39.0*25.0*22.0 | -- | | | |
| AES07-S09 | 7 | 85-305 | 100-430 | 9 | 0.77 | 77 | 3000 | 39.0*25.0*22.0 | -- | | | |
| AES07-S12 | 7 | 85-305 | 100-430 | 12 | 0.58 | 78 | 3000 | 39.0*25.0*22.0 | -- | | | |
| AES07-S15 | 7 | 85-305 | 100-430 | 15 | 0.46 | 79 | 3000 | 39.0*25.0*22.0 | -- | | | |
| AES07-S24 | 7 | 85-305 | 100-430 | 24 | 0.3 | 80 | 3000 | 39.0*25.0*22.0 | -- | | | |
AES12-SXX AES12-SXX | 12 | 85-264 | 100-370 | 5.0-24 | 0.5-2.4 | 78-85 | 3000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |
| AES12-S05 | 12 | 85-264 | 100-370 | 5 | 2.4 | 78 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES12-S09 | 12 | 85-264 | 100-370 | 9 | 1.33 | 80 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES12-S12 | 12 | 85-264 | 100-370 | 12 | 1 | 83 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES12-S15 | 12 | 85-264 | 100-370 | 15 | 0.8 | 83 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES12-S24 | 12 | 85-264 | 100-370 | 24 | 0.5 | 85 | 3000 | 51.0*25.5*15.5 | -- | | | |

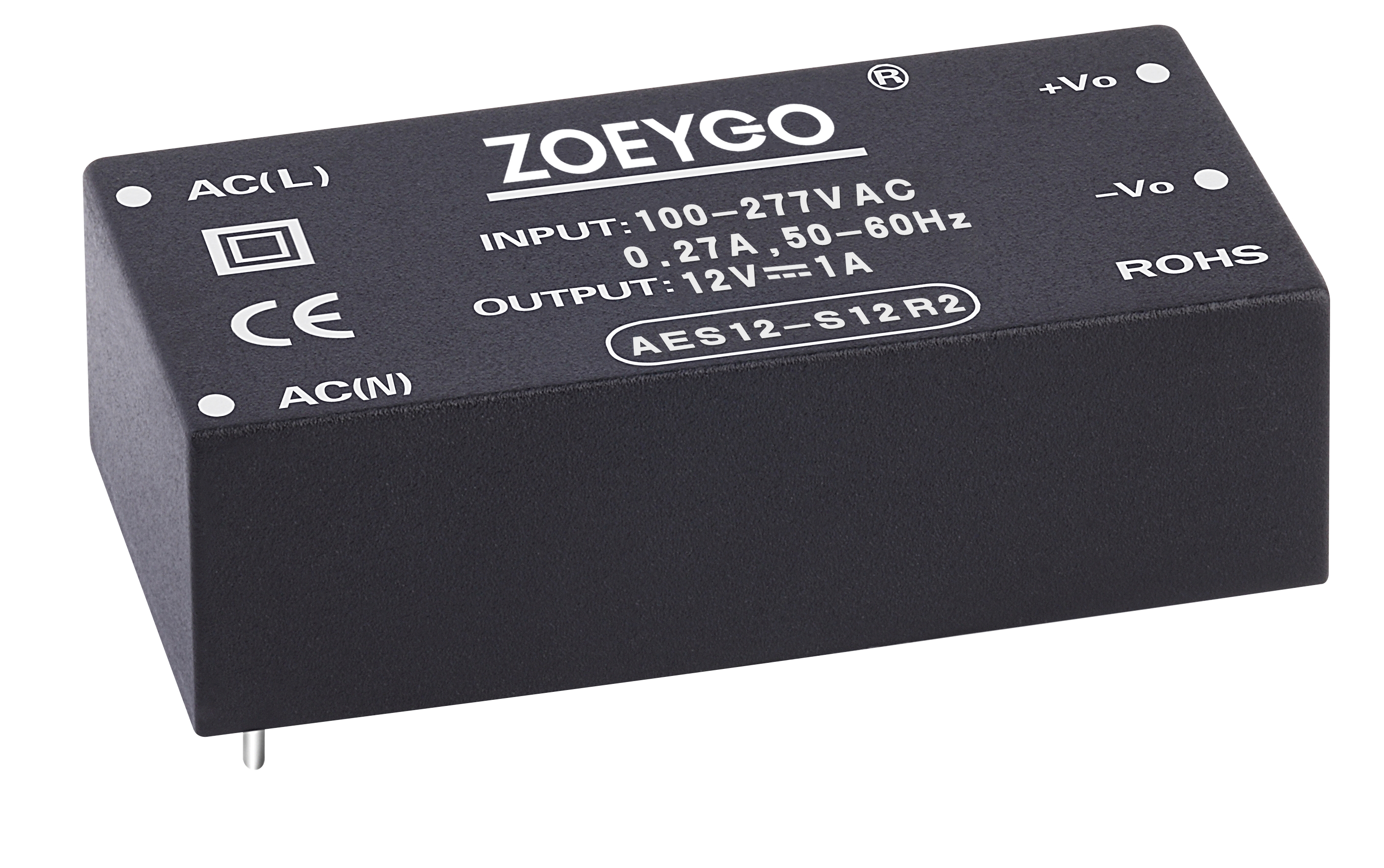

AES12-SXXR2 AES12-SXXR2 | 12 | 85-305 | 100-430 | 5.0-24 | 0.5-2.4 | 82-85 | 3000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |
| AES12-S05R2 | 12 | 85-305 | 100-430 | 5 | 2.4 | 82 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES12-S09R2 | 12 | 85-305 | 100-430 | 9 | 1.33 | 82 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES12-S12R2 | 12 | 85-305 | 100-430 | 12 | 1 | 83 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES12-S15R2 | 12 | 85-305 | 100-430 | 15 | 0.8 | 83 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES12-S24R2 | 12 | 85-305 | 100-430 | 24 | 0.5 | 85 | 3000 | 51.0*25.5*15.5 | -- | | | |

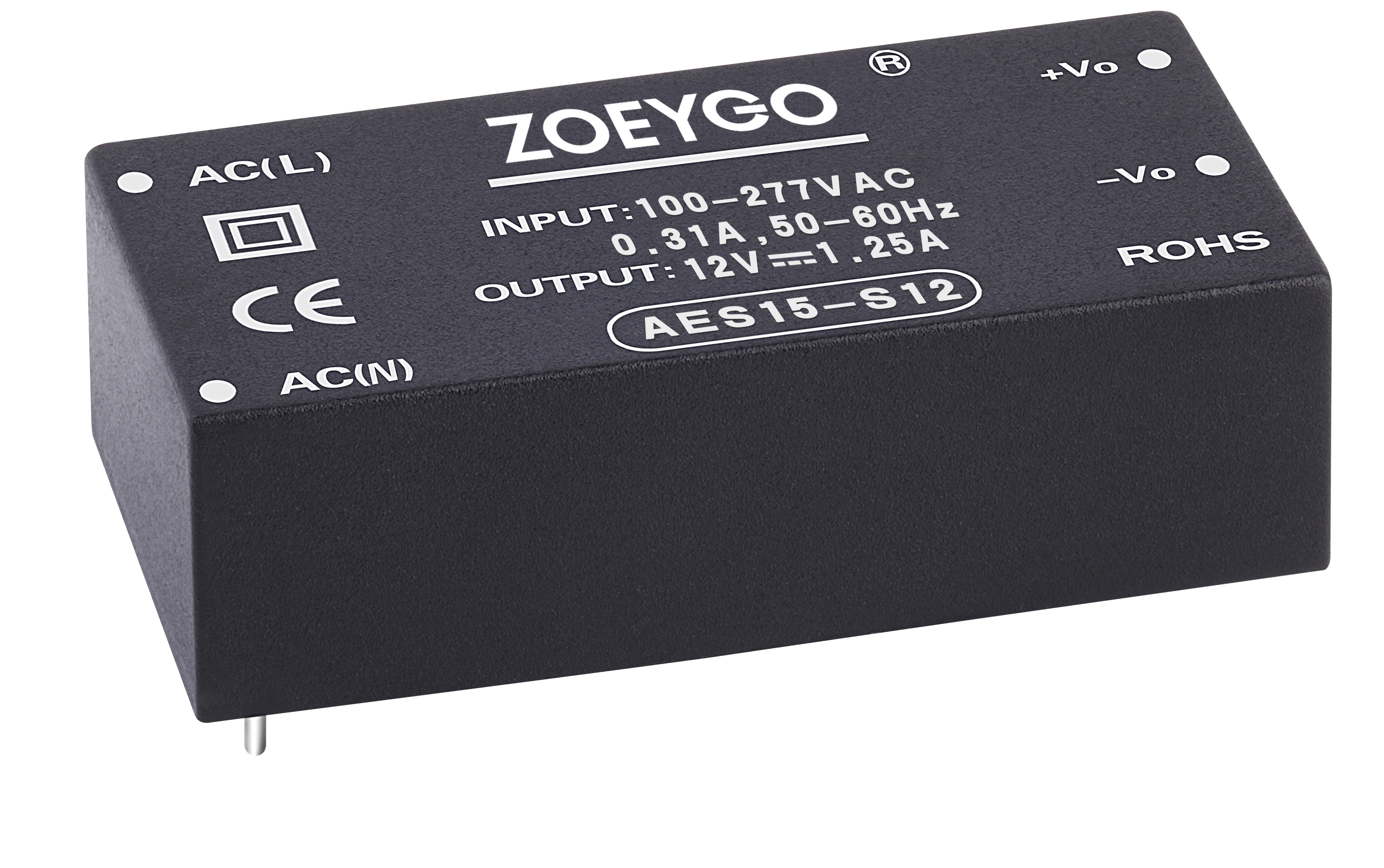

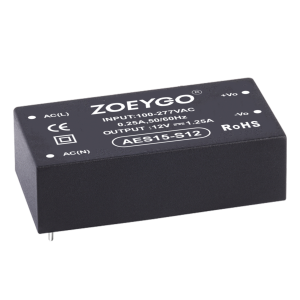

AES15-SXX AES15-SXX | 15 | 85-305 | 100-430 | 3.3-24 | 0.625-3 | 75-86 | 3000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |
| AES15-S03 | 9.9 | 85-305 | 100-430 | 3.3 | 3 | 75 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES15-S05 | 15 | 85-305 | 100-430 | 5 | 3 | 78 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES15-S09 | 15 | 85-305 | 100-430 | 9 | 1.66 | 80 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES15-S12 | 15 | 85-305 | 100-430 | 12 | 1.25 | 86 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES15-S15 | 15 | 85-305 | 100-430 | 15 | 1 | 86 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES15-S24 | 15 | 85-305 | 100-430 | 24 | 0.625 | 86 | 3000 | 51.0*25.5*15.5 | -- | | | |

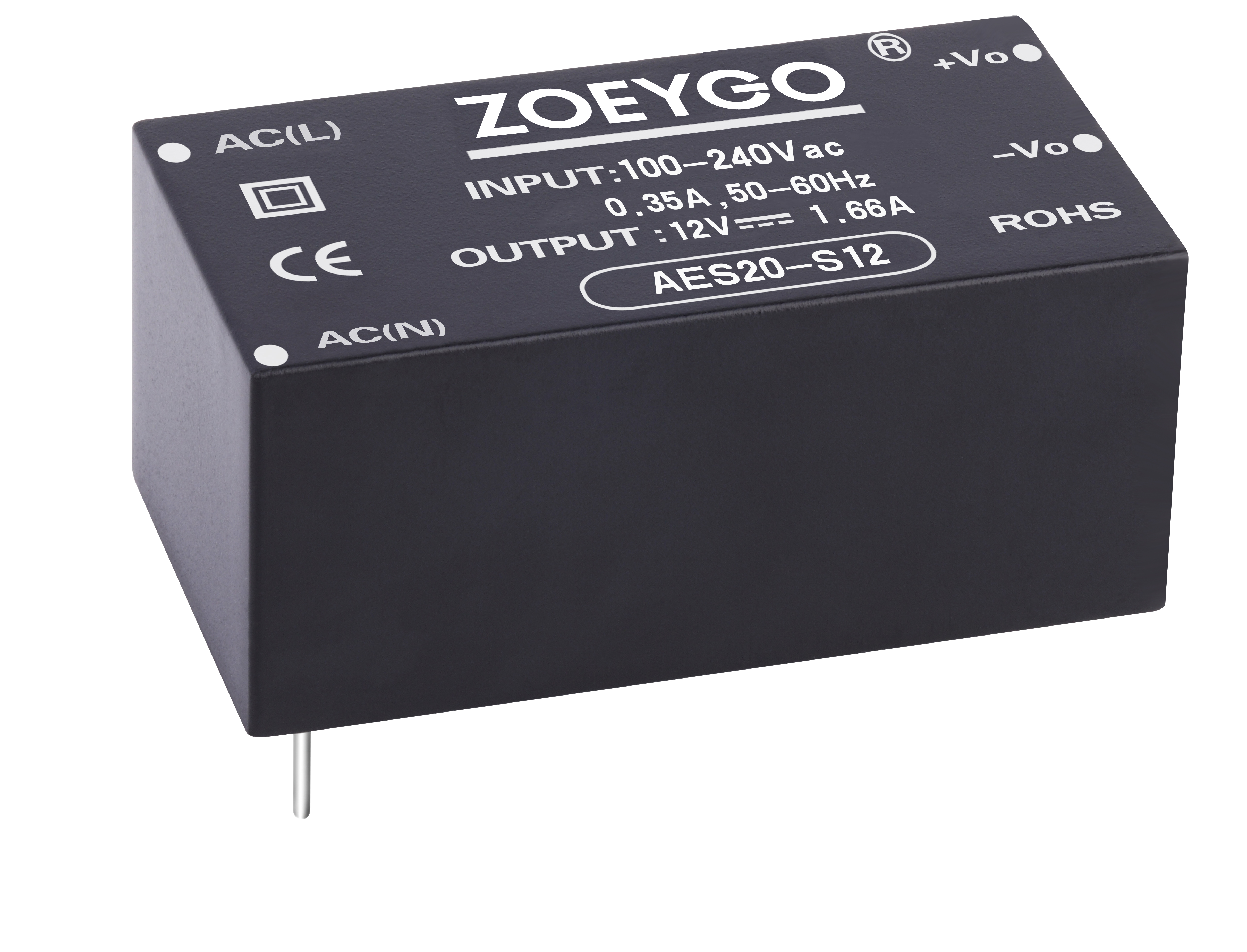

AES20-SXX AES20-SXX | 20 | 85-305 | 100-430 | 3.3-24 | 0.83-3.5 | 85-88 | 4000 | 54.5*29.2*23.6 | -- -- | -- | -- | -- |
| AES20-S03 | 11.55 | 85-305 | 100-430 | 3.3 | 3.5 | 85 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES20-S05 | 17.5 | 85-305 | 100-430 | 5 | 3.5 | 85 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES20-S09 | 20 | 85-305 | 100-430 | 9 | 2.22 | 85 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES20-S12 | 20 | 85-305 | 100-430 | 12 | 1.66 | 86 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES20-S15 | 20 | 85-305 | 100-430 | 15 | 1.33 | 86 | 4000 | 54.5*29.2*23.6 | -- | | | |

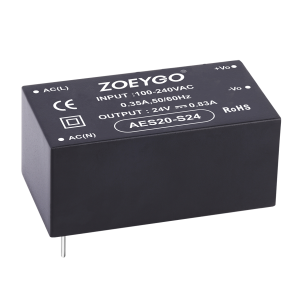

| AES20-S24 | 20 | 85-305 | 100-430 | 24 | 0.83 | 88 | 4000 | 54.5*29.2*23.6 | -- | | | |

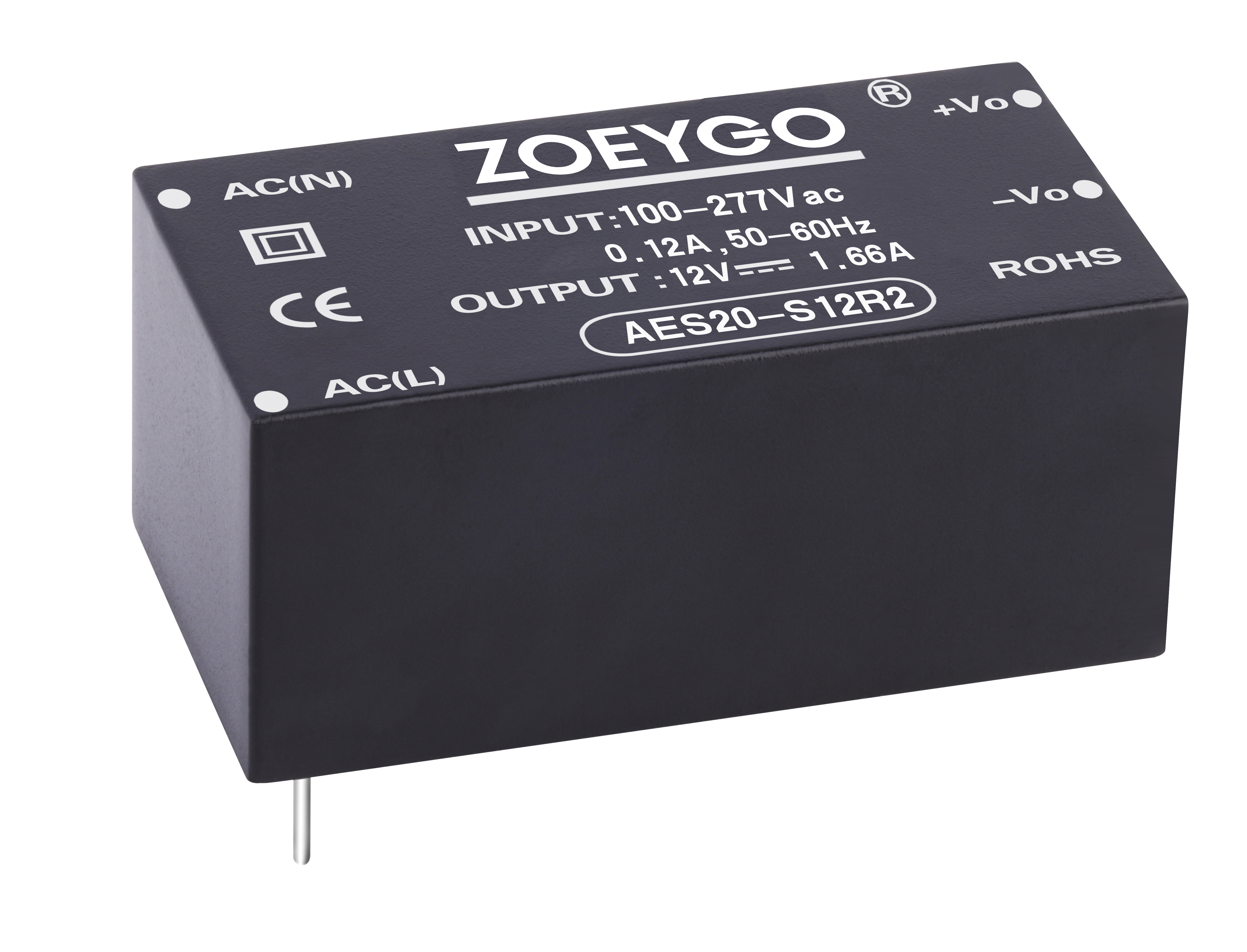

AES20-SXXR2 AES20-SXXR2 | 20 | 85-305 | 100-430 | 5.0-24 | 0.83-3.5 | 85-88 | 3000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |
| AES20-S05R2 | 17.5 | 85-305 | 100-430 | 5 | 3.5 | 85 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES20-S09R2 | 20 | 85-305 | 100-430 | 9 | 2.22 | 85 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES20-S12R2 | 20 | 85-305 | 100-430 | 12 | 1.66 | 86 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES20-S15R2 | 20 | 85-305 | 100-430 | 15 | 1.33 | 88 | 3000 | 51.0*25.5*15.5 | -- | | | |
| AES20-S24R2 | 20 | 85-305 | 100-430 | 24 | 0.83 | 88 | 3000 | 51.0*25.5*15.5 | -- | | | |

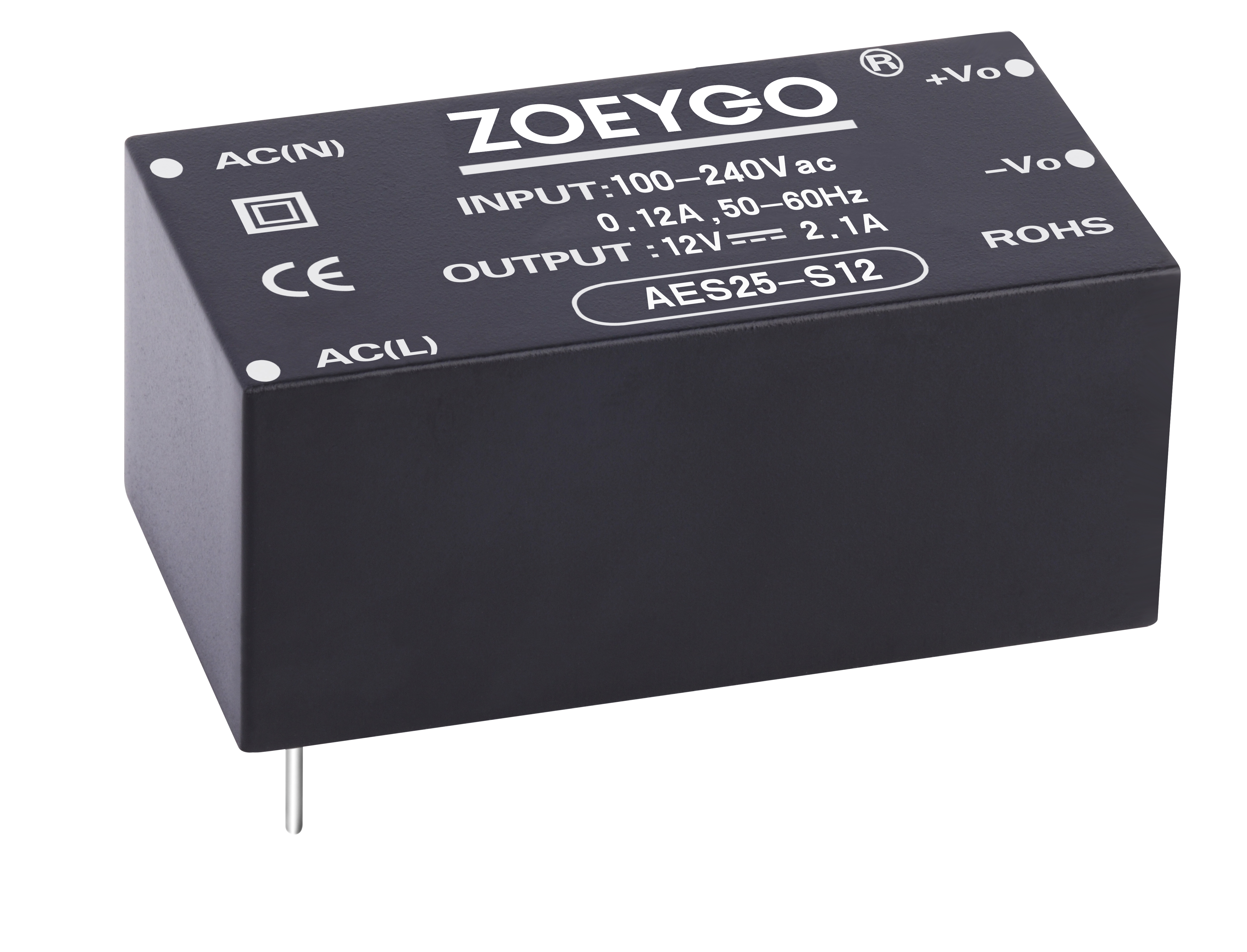

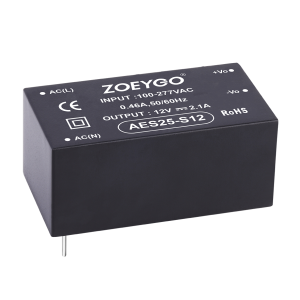

AES25-SXX AES25-SXX | 25 | 85-305 | 100-430 | 12.0-24 | 1.04-2.1 | 84-89 | 4000 | 54.5*29.2*23.6 | -- -- | -- | -- | -- |
| AES25-S12 | 25 | 85-305 | 100-430 | 12 | 2.1 | 84 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES25-S15 | 25 | 85-305 | 100-430 | 15 | 1.66 | 88 | 4000 | 54.5*29.2*23.6 | -- | | | |
| AES25-S24 | 25 | 85-305 | 100-430 | 24 | 1.04 | 89 | 4000 | 54.5*29.2*23.6 | -- | | | |

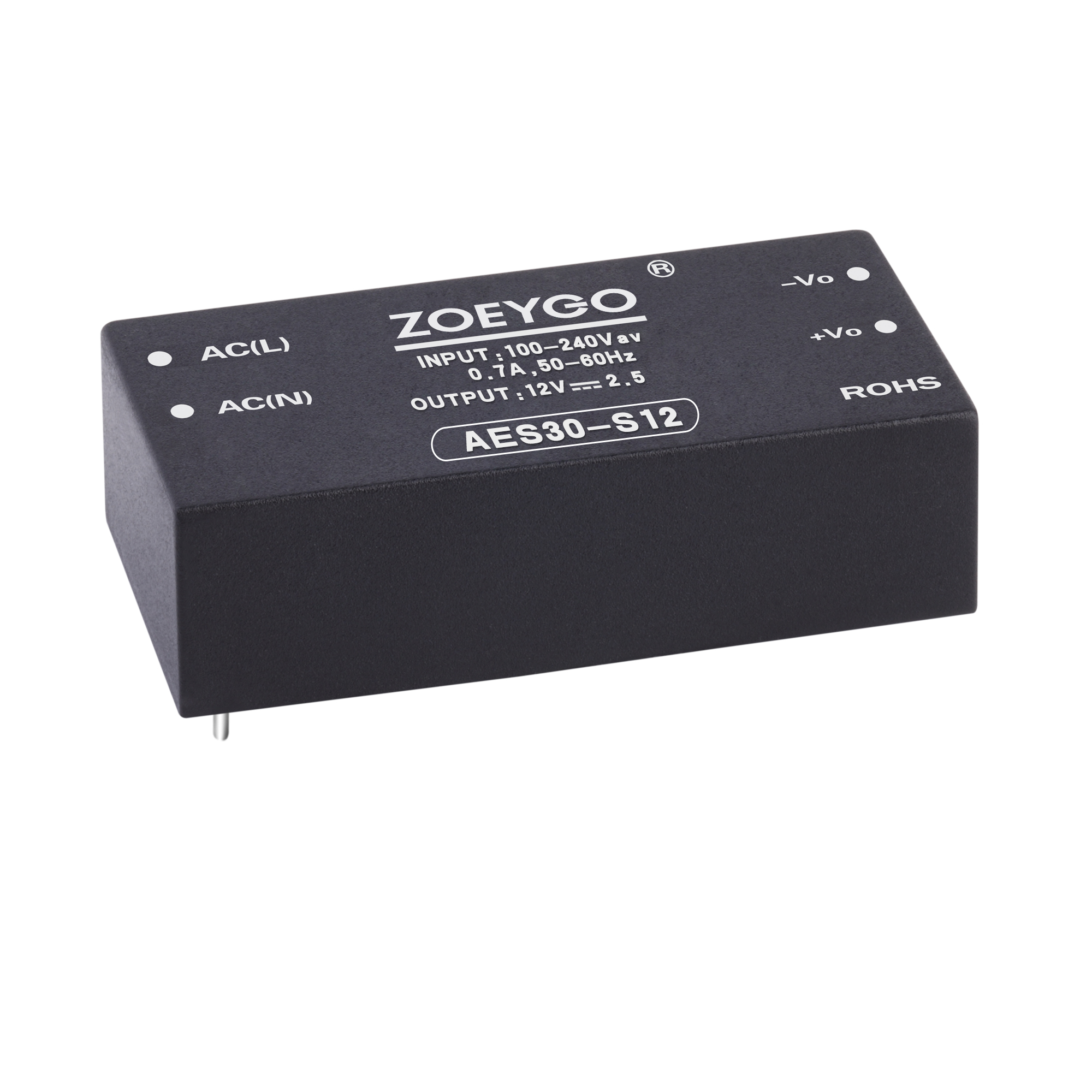

AES30-SXX AES30-SXX | 30 | 85-264 | 100-370 | 5.0-36 | 0.83-6 | 84-90 | 4000 | 69.5*35.0*24.0 | -- -- | -- | -- | -- |
| AES30-S05 | 30 | 85-264 | 100-370 | 5 | 6 | 84 | 4000 | 69.5*35.0*24.0 | -- | | | |
| AES30-S12 | 30 | 85-264 | 100-370 | 12 | 2.5 | 84 | 4000 | 69.5*35.0*24.0 | -- | | | |
| AES30-S15 | 30 | 85-264 | 100-370 | 15 | 2 | 89 | 4000 | 69.5*35.0*24.0 | -- | | | |

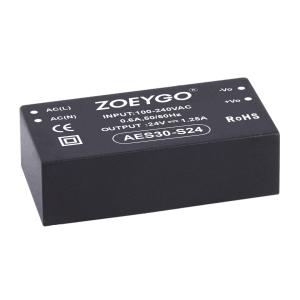

| AES30-S24 | 30 | 85-264 | 100-370 | 24 | 1.25 | 90 | 4000 | 69.5*35.0*24.0 | -- | | | |
| AES30-S36 | 30 | 85-264 | 100-370 | 36 | 0.83 | 90 | 4000 | 69.5*35.0*24.0 | -- | | | |
| AES60-SXX | 60 | 90-264 | 100-370 | 5.0-48 | 1.25-10 | 84-91 | 4000 | 87.0*52.0*29.5 | -- -- | -- | -- -- | -- |
| AES60-S05 | 50 | 90-264 | 100-370 | 5 | 10 | 84 | 4000 | 87.0*52.0*29.5 | -- | -- | | |
| AES60-S12 | 60 | 90-264 | 100-370 | 12 | 5 | 87 | 4000 | 87.0*52.0*29.5 | -- | -- | | |
| AES60-S15 | 60 | 90-264 | 100-370 | 15 | 4 | 89 | 4000 | 87.0*52.0*29.5 | -- | -- | | |

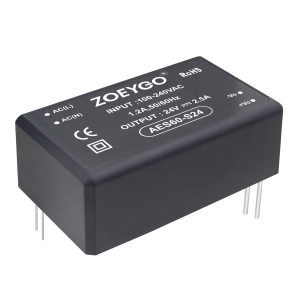

| AES60-S24 | 60 | 90-264 | 100-370 | 24 | 2.5 | 89 | 4000 | 87.0*52.0*29.5 | -- | -- | | |
| AES60-S48 | 60 | 90-264 | 100-370 | 48 | 1.25 | 91 | 4000 | 87.0*52.0*29.5 | -- | -- | | |
| AES90-SXX | 90 | 90-305 | 100-430 | 12.0-48 | 1.87-6.66 | 87-91 | 4000 | 87.0*52.0*29.5 | -- -- | -- | -- -- | -- |
| AES90-S12 | 80 | 90-305 | 100-430 | 12 | 6.66 | 87 | 4000 | 87.0*52.0*29.5 | -- | -- | | |
| AES90-S15 | 85 | 90-305 | 100-430 | 15 | 5.66 | 88 | 4000 | 87.0*52.0*29.5 | -- | -- | | |
| AES90-S24 | 90 | 90-305 | 100-430 | 24 | 3.75 | 88 | 4000 | 87.0*52.0*29.5 | -- | -- | | |
| AES90-S48 | 90 | 90-305 | 100-430 | 48 | 1.87 | 91 | 4000 | 87.0*52.0*29.5 | -- | -- | |
