国产化AEP单路系列是中逸光为客户研发的全国产化物料设计的AC/DC电源模块。该系列电源具有全球输入电压范围、交直流两用、低功耗、高效率、高可靠性、安全隔离等优点。产品安全可靠，抗浪涌性能优越，EMC 及安全规格满足IEC/EN61000-4、CISPR22/EN55022、UL62368 和EN62368等标准。
展开查看更多
模块型电源
产品中心
国产化AEP单路系列
点击展开条件搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效率% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |

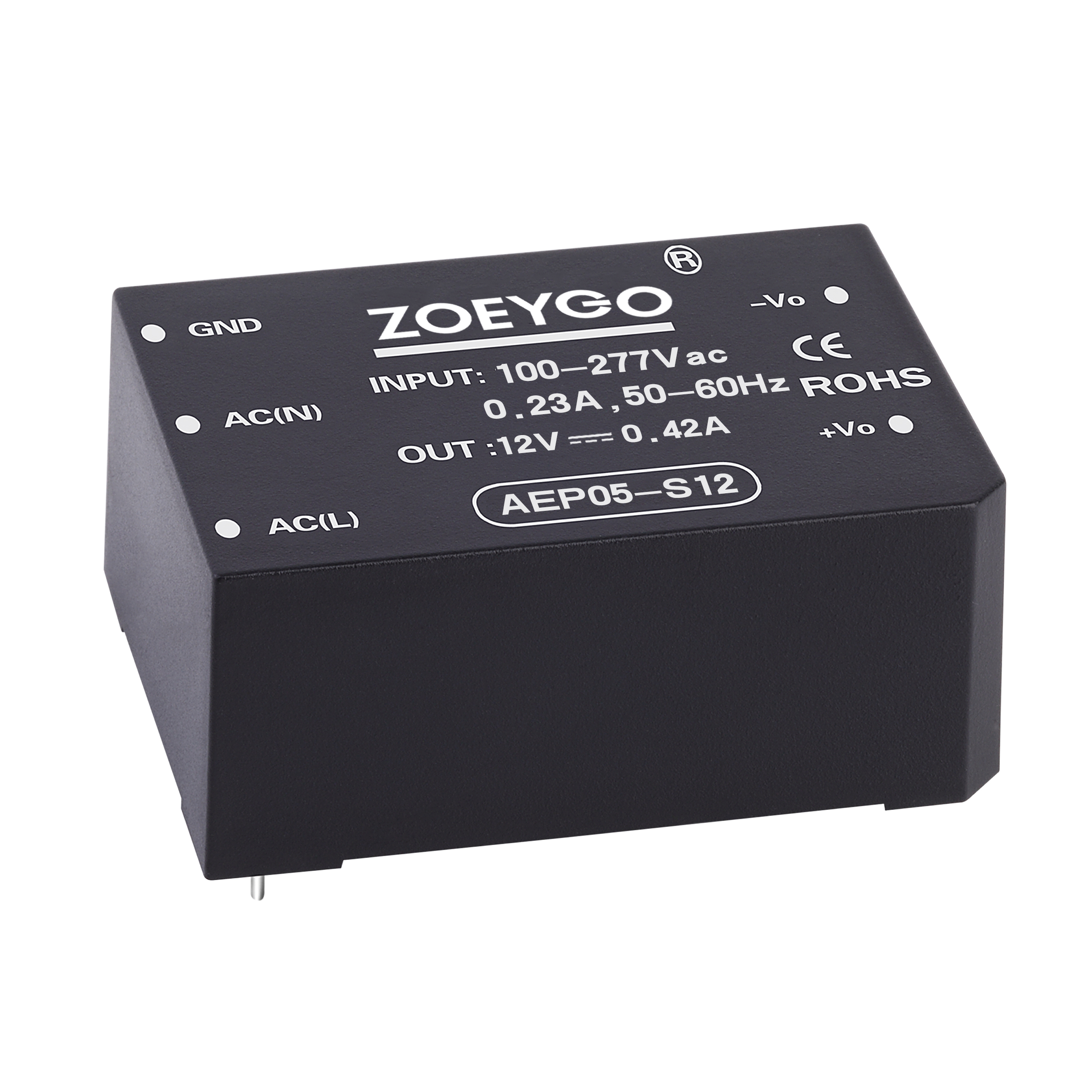

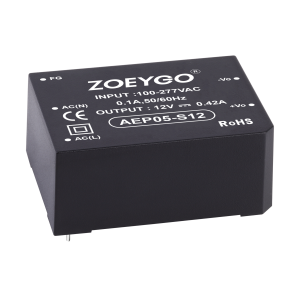

AEP05-SXX AEP05-SXX | 5 | 85-305 | 100-430 | 5.0-24 | 0.21-1 | 75-81 | 3000 | 48.5*36.0*20.5 | -- -- | -- |  -- |  -- |
| AEP05-S05 | 5 | 85-305 | 100-430 | 5 | 1 | 75 | 3000 | 48.5*36.0*20.5 | -- | | | |
| AEP05-S09 | 5 | 85-305 | 100-430 | 9 | 0.55 | 77 | 3000 | 48.5*36.0*20.5 | -- | | | |
| AEP05-S12 | 5 | 85-305 | 100-430 | 12 | 0.42 | 79 | 3000 | 48.5*36.0*20.5 | -- | | | |
| AEP05-S15 | 5 | 85-305 | 100-430 | 15 | 0.33 | 80 | 3000 | 48.5*36.0*20.5 | -- | | | |
| AEP05-S24 | 5 | 85-305 | 100-430 | 24 | 0.21 | 81 | 3000 | 48.5*36.0*20.5 | -- | | | |

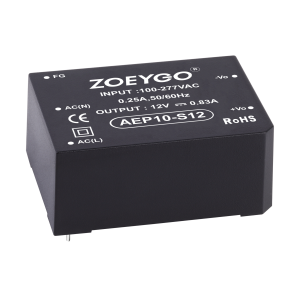

AEP10-SXX AEP10-SXX | 10 | 85-305 | 100-430 | 5.0-24 | 0.42-2 | 78-83 | 3000 | 55.0*45.0*21.0 | -- -- | -- | -- | -- |
| AEP10-S05 | 10 | 85-305 | 100-430 | 5 | 2 | 78 | 3000 | 55.0*45.0*21.0 | -- | | | |
| AEP10-S09 | 10 | 85-305 | 100-430 | 9 | 1.1 | 78 | 3000 | 55.0*45.0*21.0 | -- | | | |
| AEP10-S12 | 10 | 85-305 | 100-430 | 12 | 0.83 | 82 | 3000 | 55.0*45.0*21.0 | -- | | | |
| AEP10-S15 | 10 | 85-305 | 100-430 | 15 | 0.66 | 82 | 3000 | 55.0*45.0*21.0 | -- | | | |
| AEP10-S24 | 10 | 85-305 | 100-430 | 24 | 0.42 | 83 | 3000 | 55.0*45.0*21.0 | -- | | | |

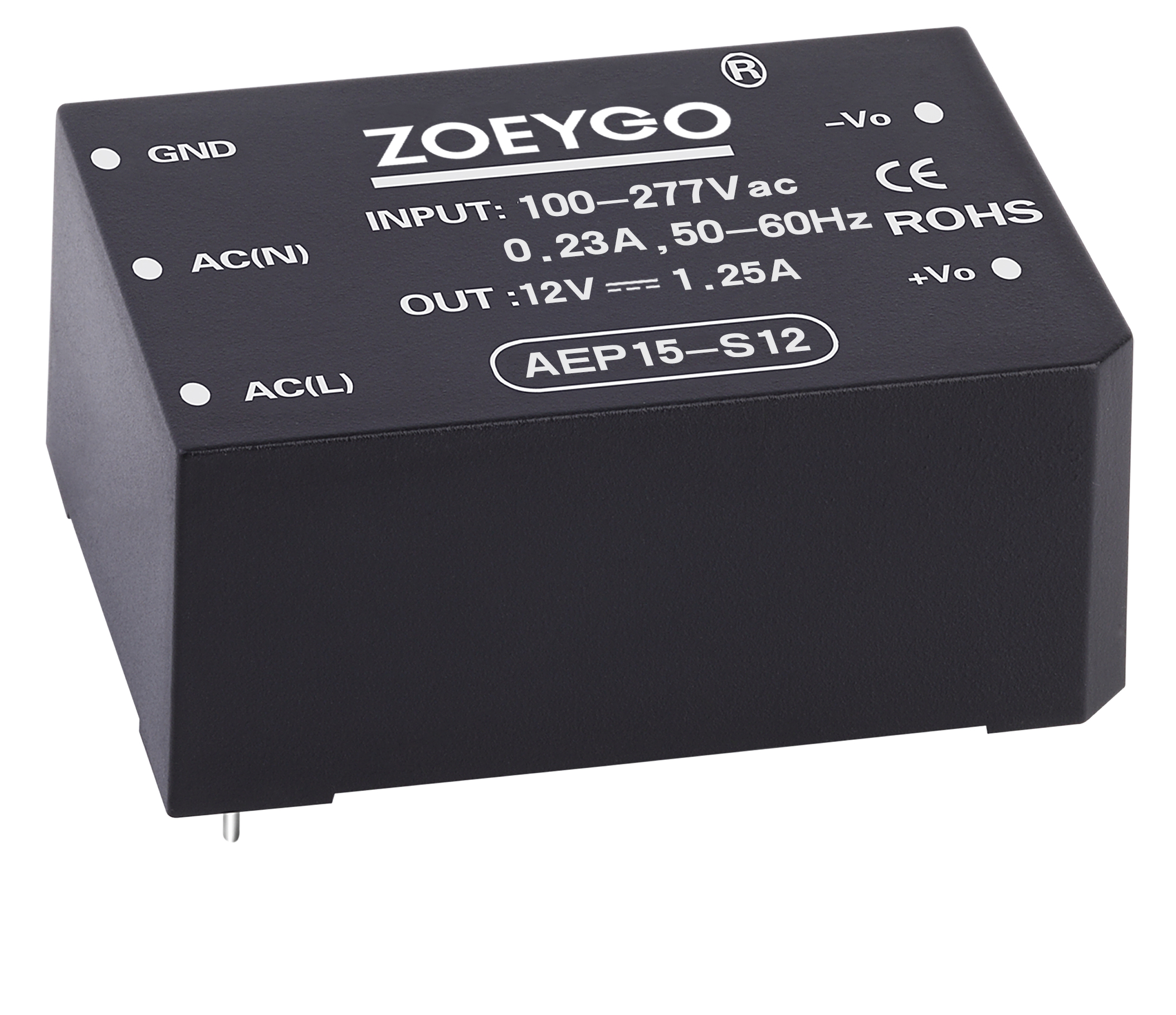

AEP15-SXX AEP15-SXX | 15 | 85-305 | 100-430 | 5.0-24 | 0.625-3 | 82-87 | 3000 | 62.0*45.0*23.0 | -- -- | -- | -- | -- |
| AEP15-S05 | 15 | 85-305 | 100-430 | 5 | 3 | 78 | 3000 | 62.0*45.0*23.0 | -- | | | |
| AEP15-S09 | 15 | 85-305 | 100-430 | 9 | 1.66 | 82 | 3000 | 62.0*45.0*23.0 | -- | | | |
| AEP15-S12 | 15 | 85-305 | 100-430 | 12 | 1.25 | 84 | 3000 | 62.0*45.0*23.0 | -- | | | |
| AEP15-S15 | 15 | 85-305 | 100-430 | 15 | 1 | 84 | 3000 | 62.0*45.0*23.0 | -- | | | |
| AEP15-S24 | 15 | 85-305 | 100-430 | 24 | 0.625 | 86 | 3000 | 62.0*45.0*23.0 | -- | | | |

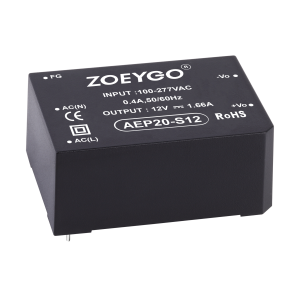

AEP20-SXX AEP20-SXX | 20 | 85-305 | 100-430 | 5.0-24 | 0.83-4 | 86-89 | 3000 | 70.0*48.0*23.5 | -- -- | -- | -- | -- |
| AEP20-S05 | 20 | 85-305 | 100-430 | 5 | 4 | 86 | 3000 | 70.0*48.0*23.5 | -- | | | |
| AEP20-S09 | 20 | 85-305 | 100-430 | 9 | 2.22 | 87 | 3000 | 70.0*48.0*23.5 | -- | | | |
| AEP20-S12 | 20 | 85-305 | 100-430 | 12 | 1.66 | 89 | 3000 | 70.0*48.0*23.5 | -- | | | |
| AEP20-S15 | 20 | 85-305 | 100-430 | 15 | 1.33 | 89 | 3000 | 70.0*48.0*23.5 | -- | | | |
| AEP20-S24 | 20 | 85-305 | 100-430 | 24 | 0.83 | 88 | 3000 | 70.0*48.0*23.5 | -- | | | |
AEP25-SXX AEP25-SXX | 25 | 85-305 | 100-430 | 5.0-24 | 1.1-5 | 84-87 | 3000 | 70.0*48.0*23.5 | -- -- | -- | -- | -- |
| AEP25-S05 | 25 | 85-305 | 100-430 | 5 | 5 | 84 | 3000 | 70.0*48.0*23.5 | -- | | | |
| AEP25-S09 | 25 | 85-305 | 100-430 | 9 | 2.77 | 84 | 3000 | 70.0*48.0*23.5 | -- | | | |
| AEP25-S12 | 25 | 85-305 | 100-430 | 12 | 2.1 | 86 | 3000 | 70.0*48.0*23.5 | -- | | | |
| AEP25-S15 | 25 | 85-305 | 100-430 | 15 | 1.66 | 86 | 3000 | 70.0*48.0*23.5 | -- | | | |
| AEP25-S24 | 25 | 85-305 | 100-430 | 24 | 1.1 | 87 | 3000 | 70.0*48.0*23.5 | -- | | |
