超薄型ZP系列是中逸光为客户提供一款薄型化，超小体积模块式电源，应用广泛。具有极低的空载损耗、隔离耐压高达4KV等特点。产品安全可靠，EMC 性能好，EMC 及安全规格满足IEC/EN61000-4、CISPR22/EN55022、UL62368/EN62368/EN60601等相关标准，该系列产品广泛应用于智能家居、医疗、工控、物联网、冷链、充电桩等行业中，如应用于电磁兼容比较恶劣的环境时必须参考应用电路。
展开查看更多
模块型电源
产品中心
超薄型ZP系列
点击展开条件搜索框

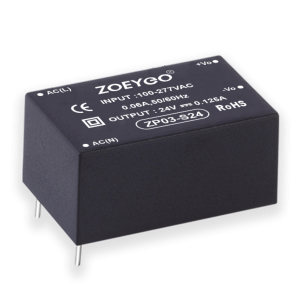

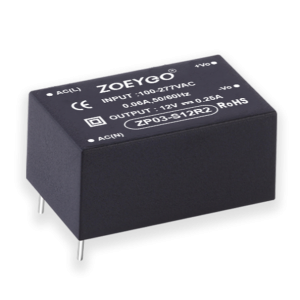

| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效率% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/原理图库) | 认证/标准 | 技术手册 | 样品申请 |
ZP03-SXX ZP03-SXX | 3 | 85-305 | 100-430 | 3.3-24 | 0.125-0.6 | 68-78 | 2500 | 32.5*20.5*15.0 | -- -- | -- |  -- |  -- |
| ZP03-S03 | 1.98 | 85-305 | 100-430 | 3.3 | 0.6 | 68 | 2500 | 32.5*20.5*15.0 | -- | | | |
| ZP03-S05 | 3 | 85-305 | 100-430 | 5 | 0.6 | 77 | 2500 | 32.5*20.5*15.0 | -- | | | |
| ZP03-S09 | 3 | 85-305 | 100-430 | 9 | 0.33 | 77 | 2500 | 32.5*20.5*15.0 | -- | | | |
| ZP03-S12 | 3 | 85-305 | 100-430 | 12 | 0.25 | 78 | 2500 | 32.5*20.5*15.0 | -- | | | |
| ZP03-S15 | 3 | 85-305 | 100-430 | 15 | 0.2 | 78 | 2500 | 32.5*20.5*15.0 | -- | | | |
| ZP03-S24 | 3 | 85-305 | 100-430 | 24 | 0.125 | 78 | 2500 | 32.5*20.5*15.0 | -- | | | |
ZP03-SXXR2 ZP03-SXXR2 | 3 | 85-305 | 100-430 | 3.3-24 | 0.125-0.6 | 64-80 | 3000 | 32.5*20.5*15.0 | -- -- | -- | -- | -- |
| ZP03-S03R2 | 1.98 | 85-305 | 100-430 | 3.3 | 0.6 | 64 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZP03-S05R2 | 3 | 85-305 | 100-430 | 5 | 0.6 | 76 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZP03-S09R2 | 3 | 85-305 | 100-430 | 9 | 0.33 | 77 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZP03-S12R2 | 3 | 85-305 | 100-430 | 12 | 0.25 | 79 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZP03-S15R2 | 3 | 85-305 | 100-430 | 15 | 0.2 | 79 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZP03-S24R2 | 3 | 85-305 | 100-430 | 24 | 0.125 | 80 | 3000 | 32.5*20.5*15.0 | -- | | | |

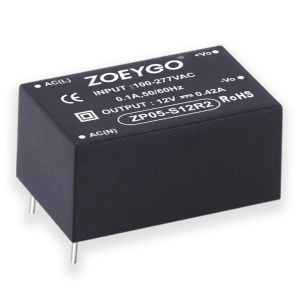

ZP05-SXXR2 ZP05-SXXR2 | 5 | 85-305 | 100-430 | 3.3-24 | 0.21-1 | 64-80 | 3000 | 32.5*20.5*15.0 | -- -- | -- | -- | -- |
| ZP05-S03R2 | 3.3 | 85-305 | 100-430 | 3.3 | 1 | 64 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZP05-S05R2 | 5 | 85-305 | 100-430 | 5 | 1 | 70 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZP05-S09R2 | 5 | 85-305 | 100-430 | 9 | 0.55 | 76 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZP05-S12R2 | 5 | 85-305 | 100-430 | 12 | 0.42 | 77 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZP05-S15R2 | 5 | 85-305 | 100-430 | 15 | 0.33 | 77 | 3000 | 32.5*20.5*15.0 | -- | | | |
| ZP05-S24R2 | 5 | 85-305 | 100-430 | 24 | 0.21 | 80 | 3000 | 32.5*20.5*15.0 | -- | | | |

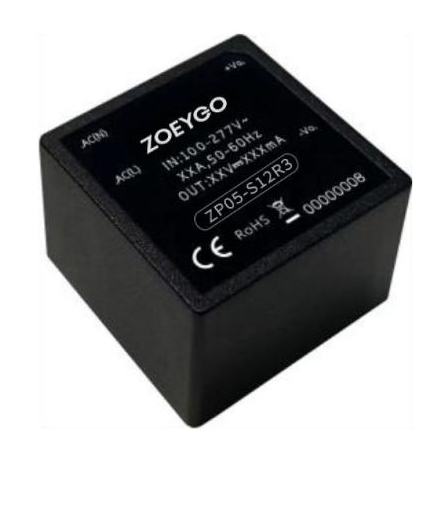

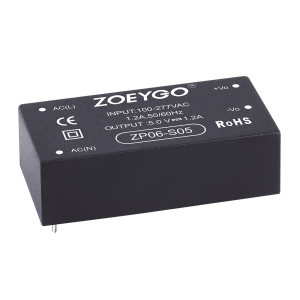

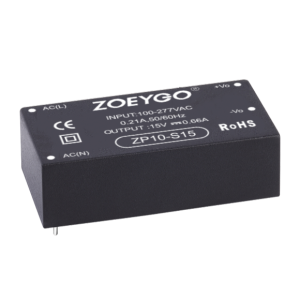

ZP05-SXXR3 ZP05-SXXR3 | 5 | 85-305 | 100-430 | 3.3-24 | 0.21-1 | 64-80 | 3000 | 25.4*25.4*17.6 | -- -- | -- | -- | -- |
| ZP05-S03R3 | 3.3 | 85-305 | 100-430 | 3.3 | 1 | 64 | 3000 | 25.4*25.4*17.6 | -- | | | |
| ZP05-S05R3 | 5 | 85-305 | 100-430 | 5 | 1 | 74 | 3000 | 25.4*25.4*17.6 | -- | | | |
| ZP05-S09R3 | 5 | 85-305 | 100-430 | 9 | 0.55 | 77 | 3000 | 25.4*25.4*17.6 | -- | | | |
| ZP05-S12R3 | 5 | 85-305 | 100-430 | 12 | 0.42 | 79 | 3000 | 25.4*25.4*17.6 | -- | | | |
| ZP05-S15R3 | 5 | 85-305 | 100-430 | 15 | 0.33 | 79 | 3000 | 25.4*25.4*17.6 | -- | | | |
| ZP05-S24R3 | 5 | 85-305 | 100-430 | 24 | 0.21 | 80 | 3000 | 25.4*25.4*17.6 | -- | | | |
ZP06-SXX ZP06-SXX | 6 | 85-305 | 100-430 | 3.3-24 | 0.25-1.8 | 73-82 | 4000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |
| ZP06-S03 | 6 | 85-305 | 100-430 | 3.3 | 1.8 | 73 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP06-S05 | 6 | 85-305 | 100-430 | 5 | 1.2 | 76 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP06-S09 | 6 | 85-305 | 100-430 | 9 | 0.66 | 78 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP06-S12 | 6 | 85-305 | 100-430 | 12 | 0.5 | 79 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP06-S15 | 6 | 85-305 | 100-430 | 15 | 0.4 | 81 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP06-S24 | 6 | 85-305 | 100-430 | 24 | 0.25 | 82 | 4000 | 51.0*25.5*15.5 | -- | | | |
ZP10-SXX ZP10-SXX | 10 | 85-305 | 100-430 | 3.3-24 | 0.41-2 | 66-83 | 4000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |
| ZP10-S03 | 6.6 | 85-305 | 100-430 | 3.3 | 2 | 66 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP10-S05 | 10 | 85-305 | 100-430 | 5 | 2 | 78 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP10-S09 | 10 | 85-305 | 100-430 | 9 | 1.11 | 80 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP10-S12 | 10 | 85-305 | 100-430 | 12 | 0.83 | 81 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP10-S15 | 10 | 85-305 | 100-430 | 15 | 0.66 | 82 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP10-S24 | 10 | 85-305 | 100-430 | 24 | 0.41 | 83 | 4000 | 51.0*25.5*15.5 | -- | | | |

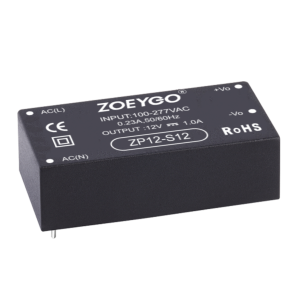

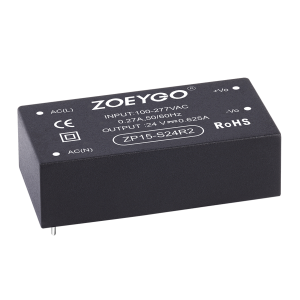

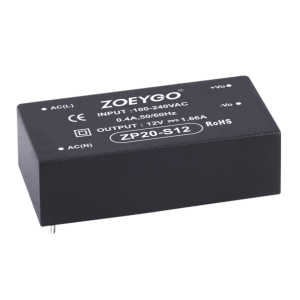

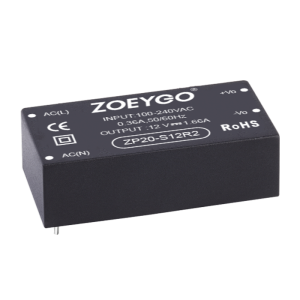

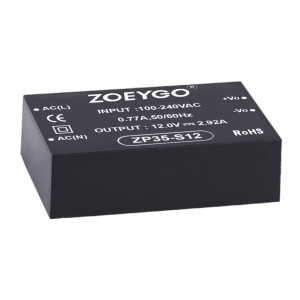

ZP12-SXX ZP12-SXX | 12 | 85-305 | 100-430 | 3.3-24 | 0.5-2.2 | 72-83 | 4000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |
| ZP12-S03 | 7.2 | 85-305 | 100-430 | 3.3 | 2.2 | 72 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP12-S05 | 11 | 85-305 | 100-430 | 5 | 2.2 | 76 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP12-S09 | 12 | 85-305 | 100-430 | 9 | 1.33 | 79 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP12-S12 | 12 | 85-305 | 100-430 | 12 | 1 | 80 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP12-S15 | 12 | 85-305 | 100-430 | 15 | 0.8 | 82 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP12-S24 | 12 | 85-305 | 100-430 | 24 | 0.5 | 83 | 4000 | 51.0*25.5*15.5 | -- | | | |
ZP15-SXX ZP15-SXX | 15 | 85-264 | 100-370 | 3.3-24 | 0.625-3 | 80-88 | 4000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |
| ZP15-S03 | 9.9 | 85-264 | 100-370 | 3.3 | 3 | 80 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP15-S05 | 15 | 85-264 | 100-370 | 5 | 3 | 87 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP15-S09 | 15 | 85-264 | 100-370 | 9 | 1.66 | 88 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP15-S12 | 15 | 85-264 | 100-370 | 12 | 1.25 | 86 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP15-S15 | 15 | 85-264 | 100-370 | 15 | 1 | 86 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP15-S24 | 15 | 85-264 | 100-370 | 24 | 0.625 | 88 | 4000 | 51.0*25.5*15.5 | -- | | | |
ZP15-SXXR2 ZP15-SXXR2 | 15 | 85-305 | 100-430 | 3.3-24 | 0.625-3 | 75-86 | 3000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |
| ZP15-S03R2 | 9.9 | 85-305 | 100-430 | 3.3 | 3 | 75 | 3000 | 51.0*25.5*15.5 | -- | | | |
| ZP15-S05R2 | 15 | 85-305 | 100-430 | 5 | 3 | 78 | 3000 | 51.0*25.5*15.5 | -- | | | |
| ZP15-S09R2 | 15 | 85-305 | 100-430 | 9 | 1.66 | 80 | 3000 | 51.0*25.5*15.5 | -- | | | |
| ZP15-S12R2 | 15 | 85-305 | 100-430 | 12 | 1.25 | 85 | 3000 | 51.0*25.5*15.5 | -- | | | |
| ZP15-S15R2 | 15 | 85-305 | 100-430 | 15 | 1 | 86 | 3000 | 51.0*25.5*15.5 | -- | | | |
| ZP15-S24R2 | 15 | 85-305 | 100-430 | 24 | 0.625 | 86 | 3000 | 51.0*25.5*15.5 | -- | | | |
ZP20-SXX ZP20-SXX | 20 | 85-264 | 100-370 | 9-24 | 0.83-2.22 | 80-88 | 4000 | 54.5*29.2*23.6 | -- -- | -- | -- | -- |
| ZP20-S09 | 20 | 85-264 | 100-370 | 9 | 2.22 | 80 | 4000 | 54.5*29.2*23.6 | -- | | | |
| ZP20-S12 | 20 | 85-264 | 100-370 | 12 | 1.66 | 85 | 4000 | 54.5*29.2*23.6 | -- | | | |
| ZP20-S15 | 20 | 85-264 | 100-370 | 15 | 1.33 | 86 | 4000 | 54.5*29.2*23.6 | -- | | | |
| ZP20-S24 | 20 | 85-264 | 100-370 | 24 | 0.83 | 88 | 4000 | 54.5*29.2*23.6 | -- | | | |
ZP20-SXXR2 ZP20-SXXR2 | 20 | 85-264 | 100-370 | 3.3-24 | 0.83-3.5 | 84-88 | 4000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |
| ZP20-S03R2 | 11.5 | 85-264 | 100-370 | 3.3 | 3.5 | 84 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP20-S05R2 | 17.5 | 85-264 | 100-370 | 5 | 3.5 | 86 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP20-S09R2 | 20 | 85-264 | 100-370 | 9 | 2.22 | 86 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP20-S12R2 | 20 | 85-264 | 100-370 | 12 | 1.66 | 88 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP20-S15R2 | 20 | 85-264 | 100-370 | 15 | 1.33 | 88 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP20-S24R2 | 20 | 85-264 | 100-370 | 24 | 0.83 | 88 | 4000 | 51.0*25.5*15.5 | -- | | | |
| ZP35-SXX | 35 | 85-264 | 100-370 | 5-24 | 1.46-7 | 85-88 | 4000 | 65.0*46.0*16.0 | -- -- | -- | -- | -- |
| ZP35-S05 | 35 | 85-264 | 100-370 | 5 | 7 | 85 | 4000 | 65.0*46.0*16.0 | -- | | | |
| ZP35-S09 | 35 | 85-264 | 100-370 | 9 | 3.89 | 85 | 4000 | 65.0*46.0*16.0 | -- | | | |
| ZP35-S12 | 35 | 85-264 | 100-370 | 12 | 2.92 | 88 | 4000 | 65.0*46.0*16.0 | -- | | | |
| ZP35-S15 | 35 | 85-264 | 100-370 | 15 | 2.33 | 88 | 4000 | 65.0*46.0*16.0 | -- | | | |
| ZP35-S24 | 35 | 85-264 | 100-370 | 24 | 1.46 | 86 | 4000 | 65.0*46.0*16.0 | -- | | | |
ZP50-SXX ZP50-SXX | 50 | 85-264 | 100-370 | 5-24 | 2-5 | 85-88 | 4000 | 65.0*46.0*16.0 | -- -- | -- | -- | -- |
| ZP50-S05 | 25 | 85-264 | 100-370 | 5 | 5 | 85 | 4000 | 65.0*46.0*16.0 | -- | | | |
| ZP50-S09 | 36 | 85-264 | 100-370 | 9 | 4 | 85 | 4000 | 65.0*46.0*16.0 | -- | | | |
| ZP50-S12 | 48 | 85-264 | 100-370 | 12 | 4 | 88 | 4000 | 65.0*46.0*16.0 | -- | | | |
| ZP50-S15 | 49.5 | 85-264 | 100-370 | 15 | 3.3 | 88 | 4000 | 65.0*46.0*16.0 | -- | | | |
| ZP50-S24 | 48 | 85-264 | 100-370 | 24 | 2 | 86 | 4000 | 65.0*46.0*16.0 | -- | | | |

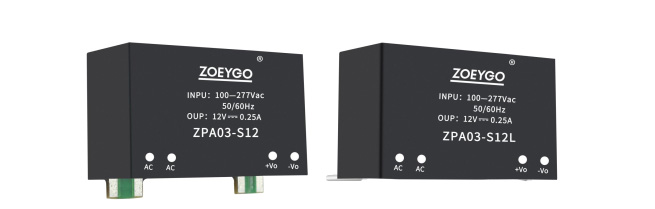

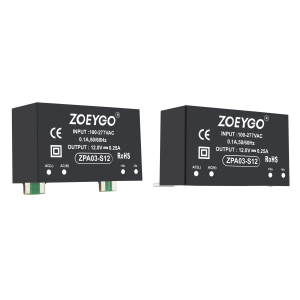

ZPA03-SXX ZPA03-SXX | 3 | 85-305 | 100-430 | 5-24 | 0.125-0.6 | 75-81 | 3000 | 31.5*12.7*18.7 | -- -- | -- | -- | -- |
| ZPA03-S05 | 3 | 85-305 | 100-430 | 5 | 0.6 | 75 | 3000 | 31.5*12.7*18.7 | -- | | | |
| ZPA03-S09 | 3 | 85-305 | 100-430 | 9 | 0.33 | 77 | 3000 | 31.5*12.7*18.7 | -- | | | |
| ZPA03-S12 | 3 | 85-305 | 100-430 | 12 | 0.25 | 79 | 3000 | 31.5*12.7*18.7 | -- | | | |
| ZPA03-S15 | 3 | 85-305 | 100-430 | 15 | 0.2 | 80 | 3000 | 31.5*12.7*18.7 | -- | | | |
| ZPA03-S24 | 3 | 85-305 | 100-430 | 24 | 0.125 | 81 | 3000 | 31.5*12.7*18.7 | -- | | | |

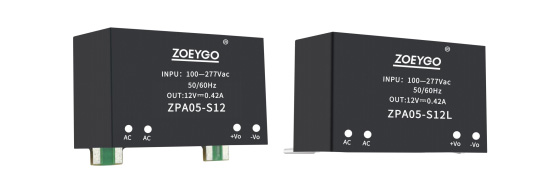

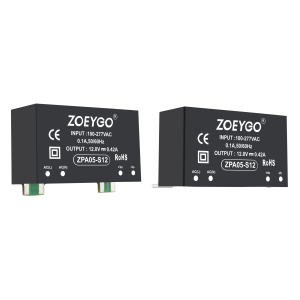

ZPA05-SXX ZPA05-SXX | 5 | 85-305 | 100-430 | 5-24 | 0.21-1 | 74-81 | 3000 | 31.5*12.7*18.7 | -- -- | -- | -- | -- |
| ZPA05-S05 | 5 | 85-305 | 100-430 | 5 | 1 | 74 | 3000 | 31.5*12.7*18.7 | -- | | | |
| ZPA05-S09 | 5 | 85-305 | 100-430 | 9 | 0.55 | 78 | 3000 | 31.5*12.7*18.7 | -- | | | |
| ZPA05-S12 | 5 | 85-305 | 100-430 | 12 | 0.42 | 80 | 3000 | 31.5*12.7*18.7 | -- | | | |
| ZPA05-S15 | 5 | 85-305 | 100-430 | 15 | 0.33 | 81 | 3000 | 31.5*12.7*18.7 | -- | | | |
| ZPA05-S24 | 5 | 85-305 | 100-430 | 24 | 0.21 | 81 | 3000 | 31.5*12.7*18.7 | -- | | | |
ZPB04-SXX ZPB04-SXX | 4 | 85-305 | 100-430 | 3.3-24 | 0.16-1.21 | 68-81 | 4000 | 37.0*24.5*15.5 | -- -- | -- | -- | -- |
| ZPB04-S03 | 4 | 85-305 | 100-430 | 3.3 | 1.21 | 68 | 4000 | 37.0*24.5*15.5 | -- | | | |
| ZPB04-S05 | 4 | 85-305 | 100-430 | 5 | 0.8 | 75 | 4000 | 37.0*24.5*15.5 | -- | | | |
| ZPB04-S09 | 4 | 85-305 | 100-430 | 9 | 0.44 | 77 | 4000 | 37.0*24.5*15.5 | -- | | | |
| ZPB04-S12 | 4 | 85-305 | 100-430 | 12 | 0.33 | 79 | 4000 | 37.0*24.5*15.5 | -- | | | |
| ZPB04-S15 | 4 | 85-305 | 100-430 | 15 | 0.26 | 79 | 4000 | 37.0*24.5*15.5 | -- | | | |
| ZPB04-S24 | 4 | 85-305 | 100-430 | 24 | 0.16 | 81 | 4000 | 37.0*24.5*15.5 | -- | | | |

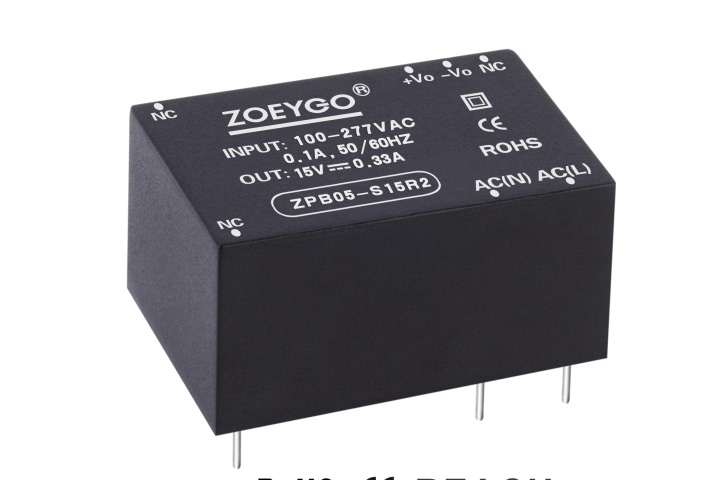

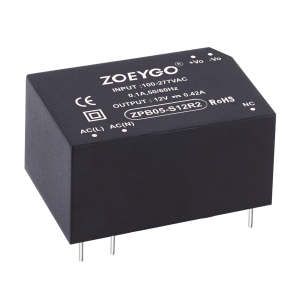

ZPB05-SXXR2 ZPB05-SXXR2 | 5 | 85-305 | 100-430 | 3.3-24 | 0.21-1 | 68-81 | 4000 | 37.0*24.5*15.5 | -- -- | -- | -- | -- |
| ZPB05-S03R2 | 3.3 | 85-305 | 100-430 | 3.3 | 1 | 68 | 4000 | 37.0*24.5*15.5 | -- | | | |
| ZPB05-S05R2 | 5 | 85-305 | 100-430 | 5 | 1 | 75 | 4000 | 37.0*24.5*15.5 | -- | | | |
| ZPB05-S09R2 | 5 | 85-305 | 100-430 | 9 | 0.56 | 77 | 4000 | 37.0*24.5*15.5 | -- | | | |
| ZPB05-S12R2 | 5 | 85-305 | 100-430 | 12 | 0.42 | 79 | 4000 | 37.0*24.5*15.5 | -- | | | |
| ZPB05-S15R2 | 5 | 85-305 | 100-430 | 15 | 0.33 | 79 | 4000 | 37.0*24.5*15.5 | -- | | | |
| ZPB05-S24R2 | 5 | 85-305 | 100-430 | 24 | 0.21 | 81 | 4000 | 37.0*24.5*15.5 | -- | | | |

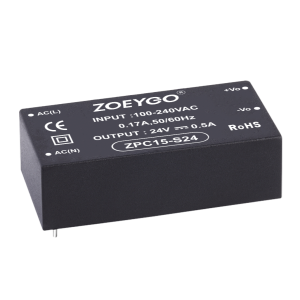

| ZPC15-SXX | 15 | 90-264 | 100-370 | 3.3-24 | 0.5-3 | 80-88 | 3000 | 51.0*25.5*15.5 | -- -- | -- | -- | -- |
| ZPC15-S03 | 9.9 | 90-264 | 100-370 | 3.3 | 3 | 80 | 3000 | 51.0*25.5*15.5 | -- | | | |
| ZPC15-S05 | 15 | 90-264 | 100-370 | 5 | 3 | 86 | 3000 | 51.0*25.5*15.5 | -- | | | |
| ZPC15-S09 | 15 | 90-264 | 100-370 | 9 | 1.66 | 87 | 3000 | 51.0*25.5*15.5 | -- | | | |
| ZPC15-S12 | 15 | 90-264 | 100-370 | 12 | 1.25 | 87 | 3000 | 51.0*25.5*15.5 | -- | | | |
| ZPC15-S15 | 15 | 90-264 | 100-370 | 15 | 1 | 87 | 3000 | 51.0*25.5*15.5 | -- | | | |
| ZPC15-S24 | 12 | 90-264 | 100-370 | 24 | 0.5 | 88 | 3000 | 51.0*25.5*15.5 | -- | | |
